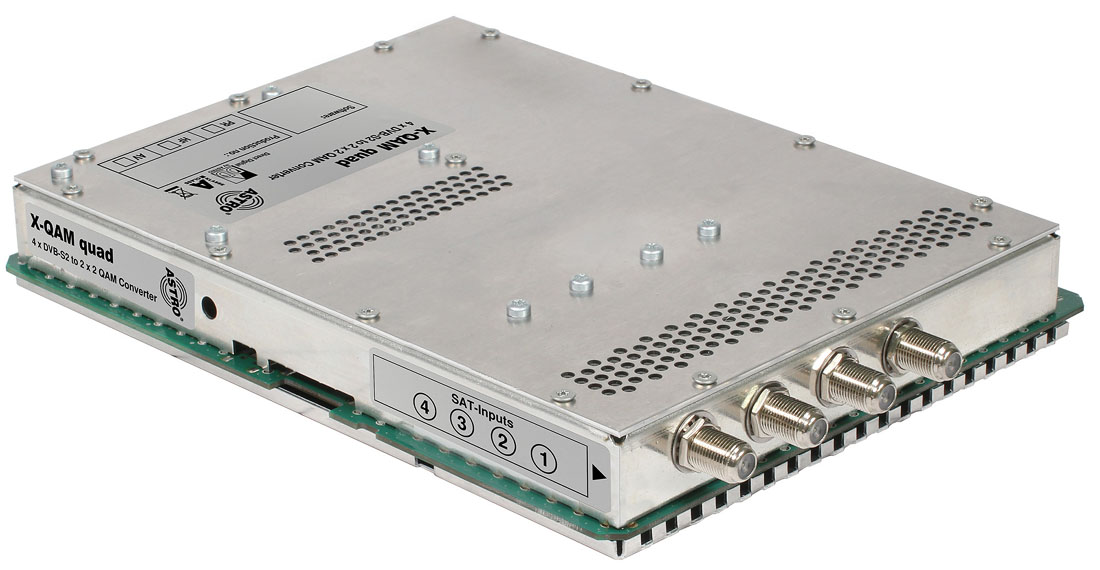

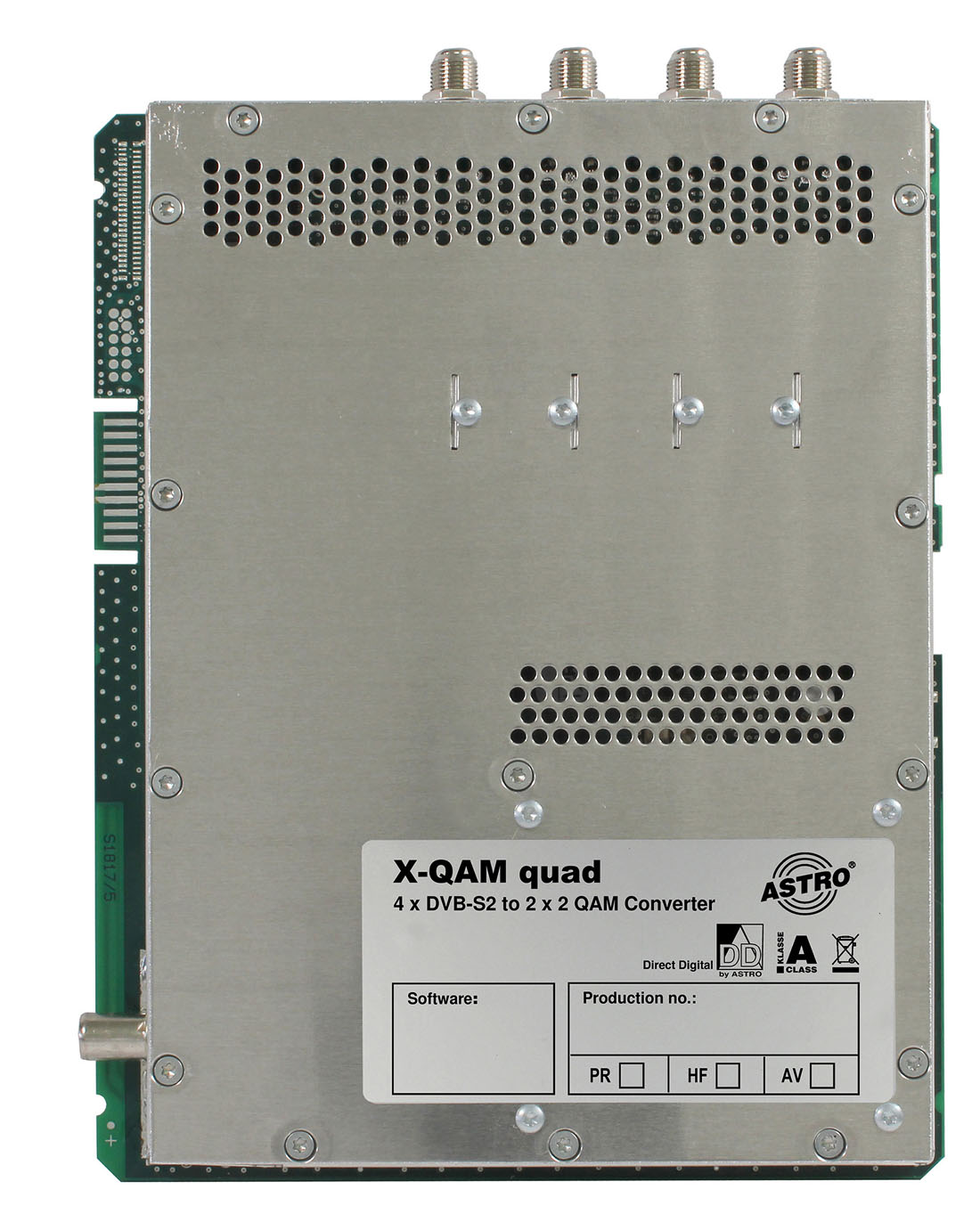

Signal converter 4 x DVB-S2 into 2 x 2 QAM
Signal converter 4 x DVB-S2 into 2 x 2 QAM - Image 2
Signal converter 4 x DVB-S2 into 2 x 2 QAM - Image 3

Signal converter 4 x DVB-S2 into 2 x 2 QAM

  • plugin card for modular base units X-8 twin and V 16
X-QAM quad

Specification

Module type

Plug-in card
Input signal

DVB-S2
Output signal

DVB-C
Order number

00380325

EAN-Code

4026187130497

No longer available

Product Details
  • plugin card for modular base units X-8 twin and V 16

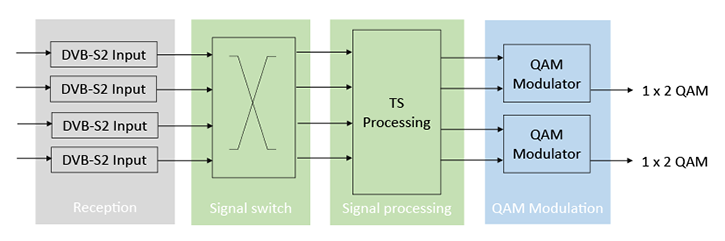

  • independent input signals are processed into 2 adjacent QAM channel pairs
  • MER typ. 45 dB
  • shoulder attenuation typ. 58 dB
  • comfortable PID filtering (Online Drop- or Pass-PID)
  • Data rate adjustment
  • PCR correction and NIT generation
  • input channel switch for multiple use of one SAT polarization to reduce cabling effort
Download Details

Product is combinable with

Modular head-end base unit
V 16.1
for mounting up to 8 plugin cards of the X and V series

No longer available

Modular head-end base unit
V 16.2
base unit for mounting up to 8 plugin cards of the X and V series

No longer available

Modular head-end base unit
X-8 twin
with 8 slots

No longer available

Similar Products

Signal converter 2 x DVB-C, DVB-T or DVB-T2 in PAL
X-DVB-CT2/PAL duo CI (AC3)
  • plugin card for modular base units X-8 twin and V 16

No longer available

Signal converter 2 x terrestrial to 2 x 1 terrestrial
X-DTU duo
plugin card for modular base units X-2 twin, X-8 twin and V 16

No longer available

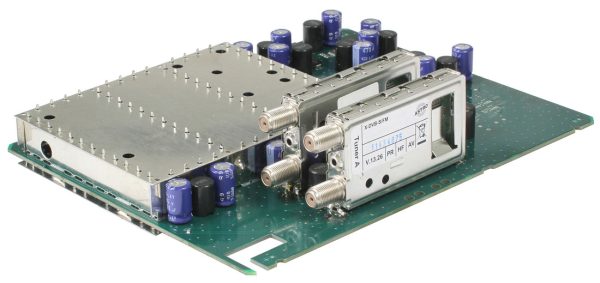

Signal converter 2 x DVB-S into 2 x FM
