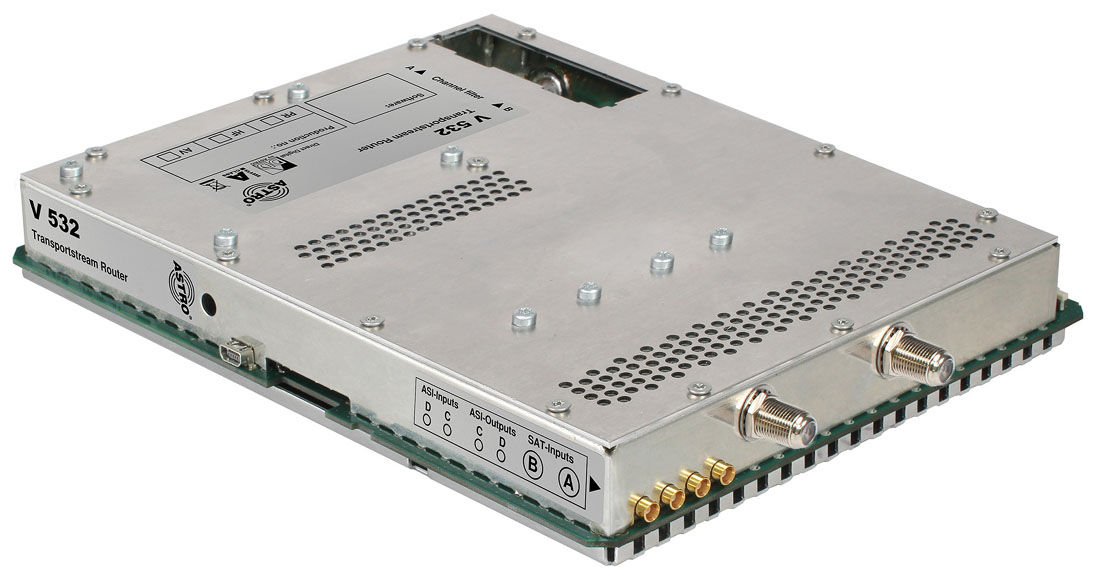

Signal converter 2 x DVB-S2 and 2 x ASI into 2 x 1 QAM and 2 x ASI
Signal converter 2 x DVB-S2 and 2 x ASI into 2 x 1 QAM and 2 x ASI - Image 2
Signal converter 2 x DVB-S2 and 2 x ASI into 2 x 1 QAM and 2 x ASI - Image 3

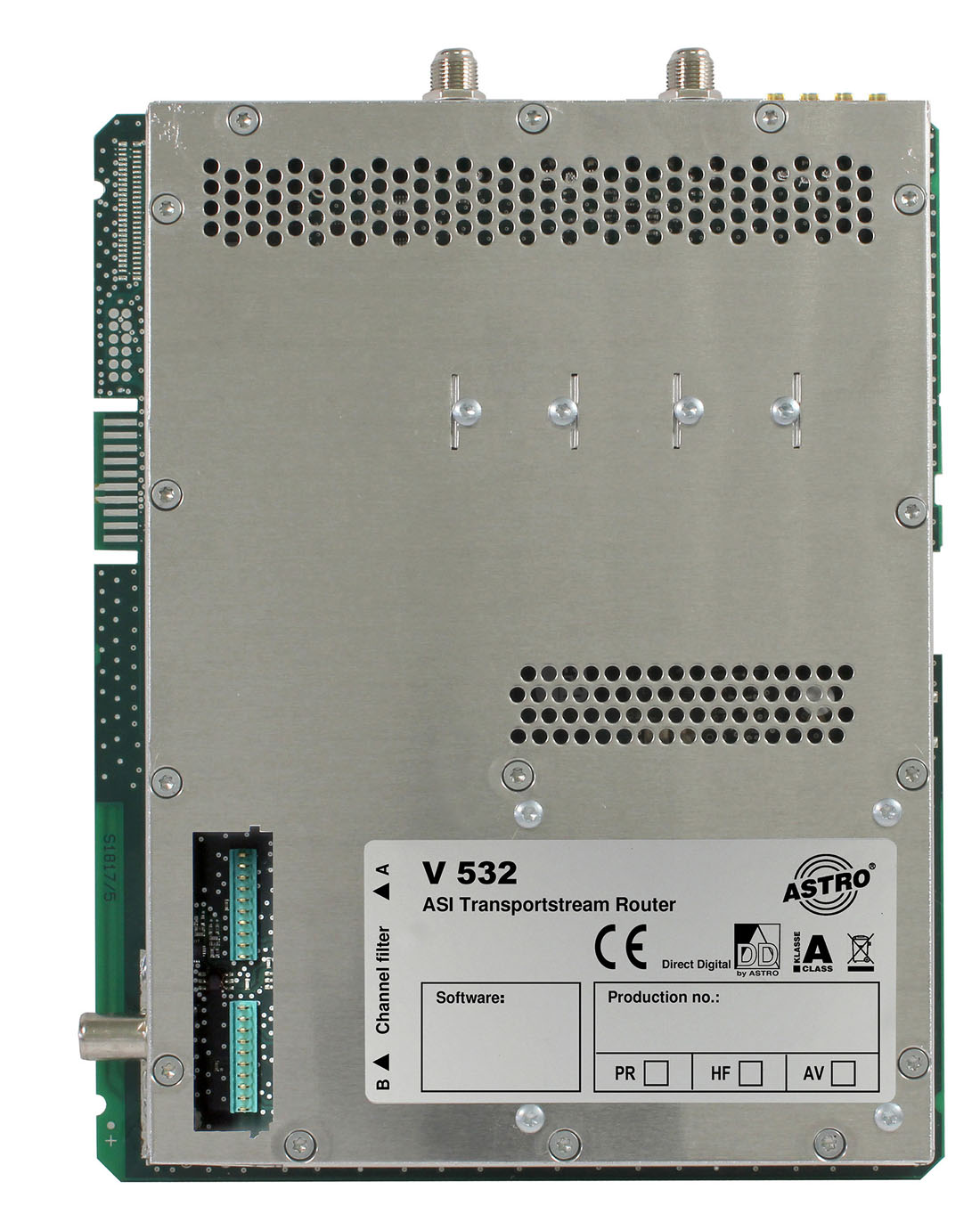

Signal converter 2 x DVB-S2 and 2 x ASI into 2 x 1 QAM and 2 x ASI

plugin card for modular base unit V 16

V 532

Specification

Module type

Plug-in card
Input signal

ASI, DVB-S2
Output signal

ASI, DVB-C
Order number

00380505

EAN-Code

4026187651930

No longer available

Product Details
  • plugin card for modular base unit V 16

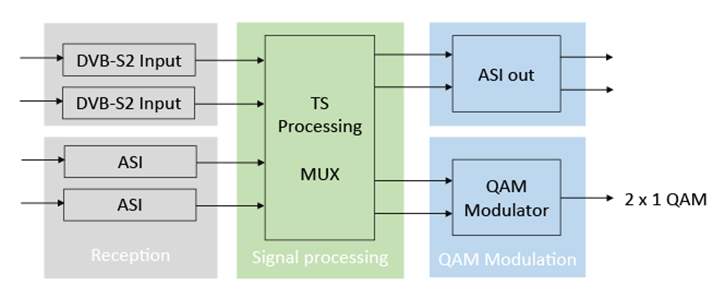

  • for processing 2 independent DVB-S(2)- and 2 ASI input signals into 2 independent QAM output channels and 2 ASI outputs
  • EPG of complete QAM network possible by exchange and multiplexing of EIT
  • Online-Service-PID-Filter
  • NIT generation
  • 2 slots for channel selective output filters
  • outstanding output parameters by Direct Digital Technology
Download Details
