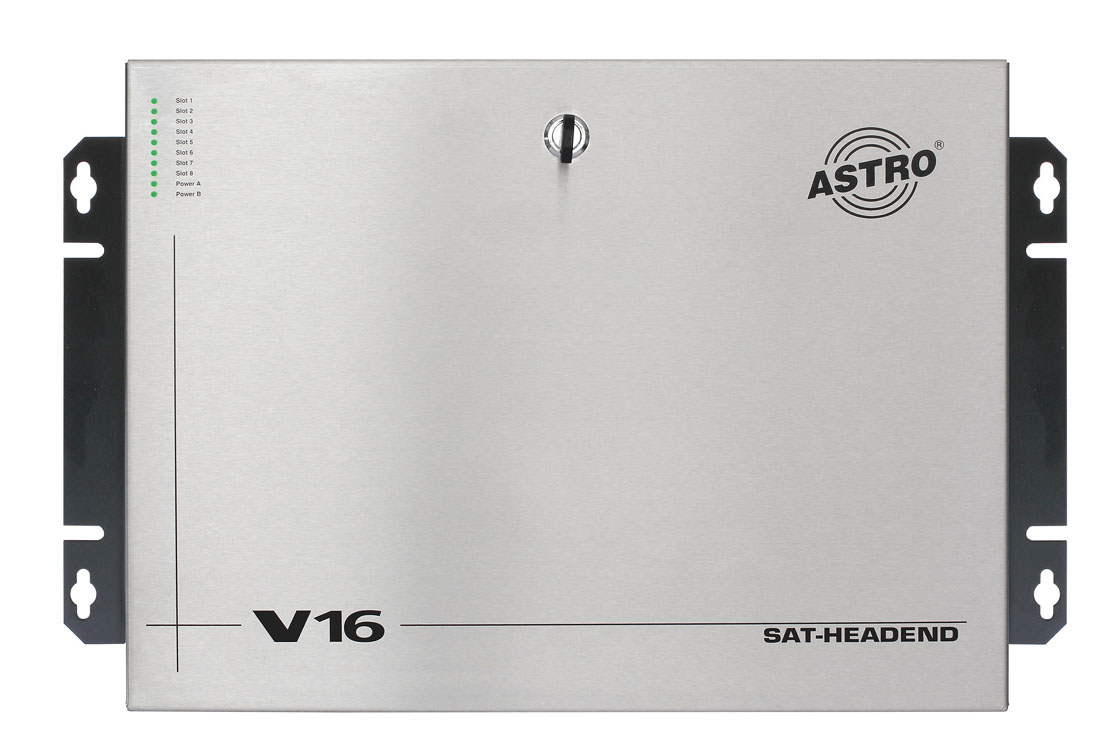

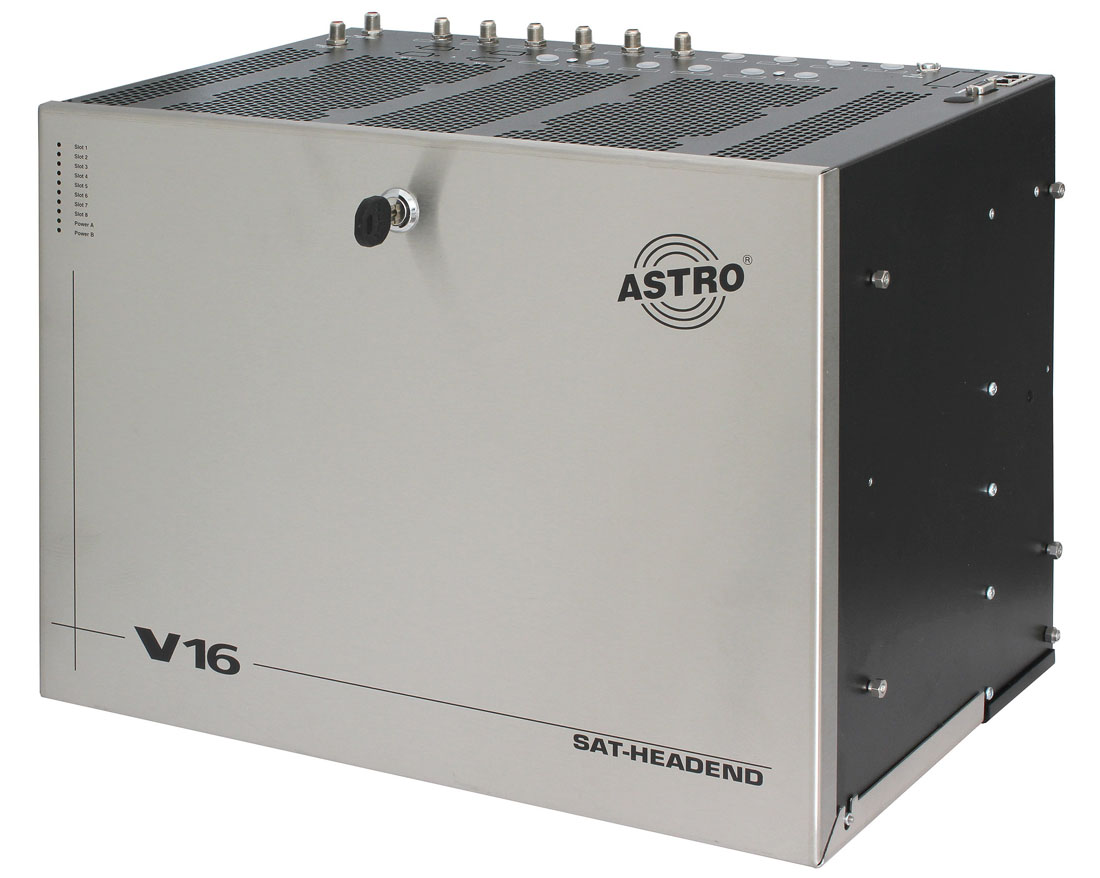

Modular head-end base unit
Modular head-end base unit - Image 2

Modular head-end base unit

for mounting up to 8 plugin cards of the X and V series

Specification

Module type

Base unit
Order number

00380070

EAN-Code

4026187651282

V 16.1

No longer available

Product Details
  • base unit for mounting up to 8 plugin cards of the X and V series
  • including power supply unit and mainboard
  • individual plugging and configuration
  • configuration via HE programming software
  • 2 temperature controlled fans
  • status LED at the front panel
  • lockable stainless steel front cover
  • integrated 230 V single power supply
  • bus adapter
  • serial port, USB port
  • 20 dB testpoint
  • wall mounting or 19" rack mounting
