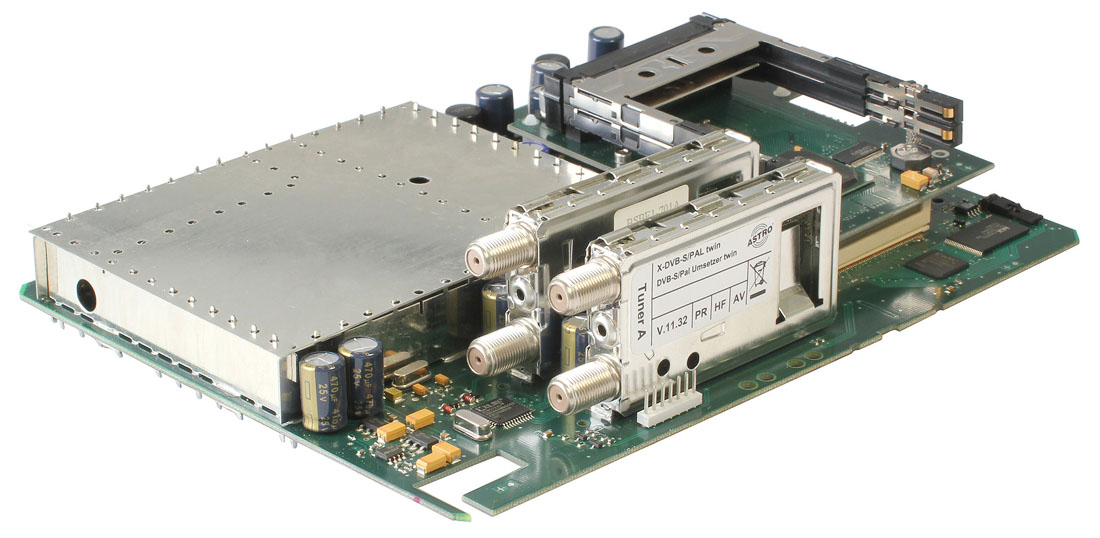

Signal converter 2 x DVB-S to 2 x 1 PAL
plugin card for modular base units X-2 twin, X-8 twin and V 16
X-DVB-S/PAL duo CI
Specification
| Module type | Plug-in card |
|---|---|
| Input signal | DVB-S |
| Output signal | PAL |
| Order number | 00330687 |
|---|---|
| EAN-Code | 4026187111021 |
No longer available
Product Details
- plugin card for modular base units X-2 twin, X-8 twin and V 16

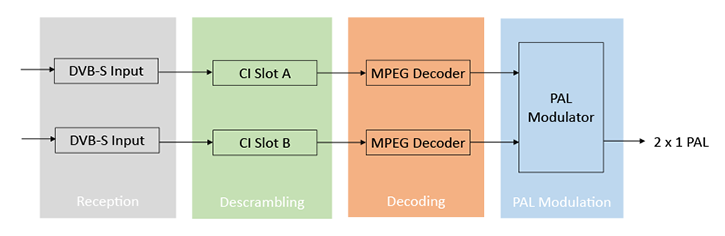

- processing of 2 digital SAT programmes into 2 independent adjustable PAL output channels in the frequency range 47 - 862 MHz
- complient to all common TV norms
- data services like VPS, teletext and WSS can be switched on or off via software as well as generation of test lines
- electronic level controllers
- 2 common interface slots
Download Details
Product is combinable with
No longer available
No longer available
No longer available
