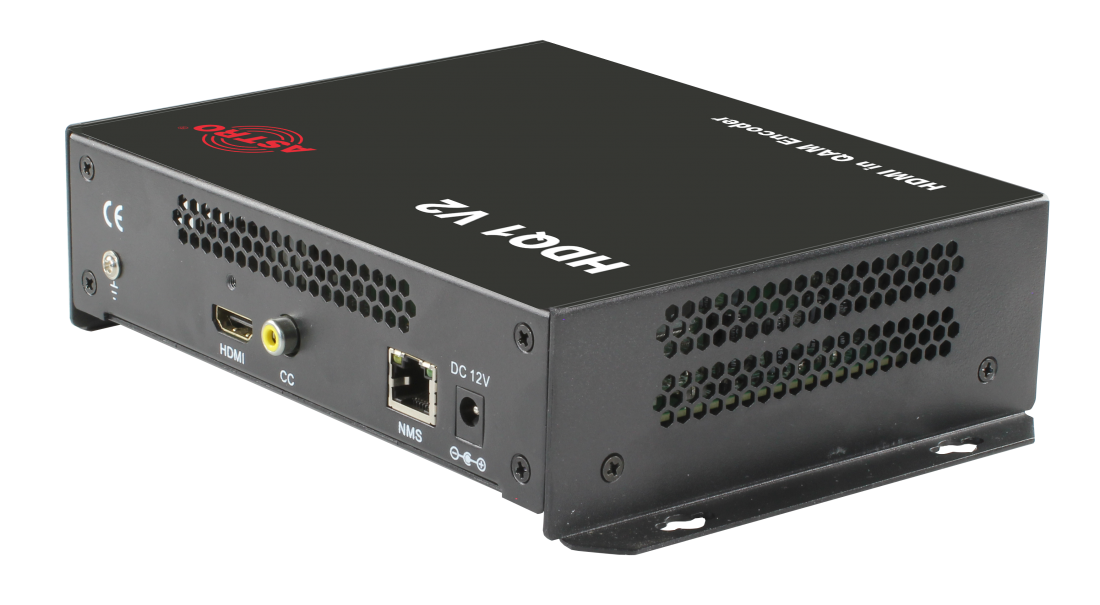

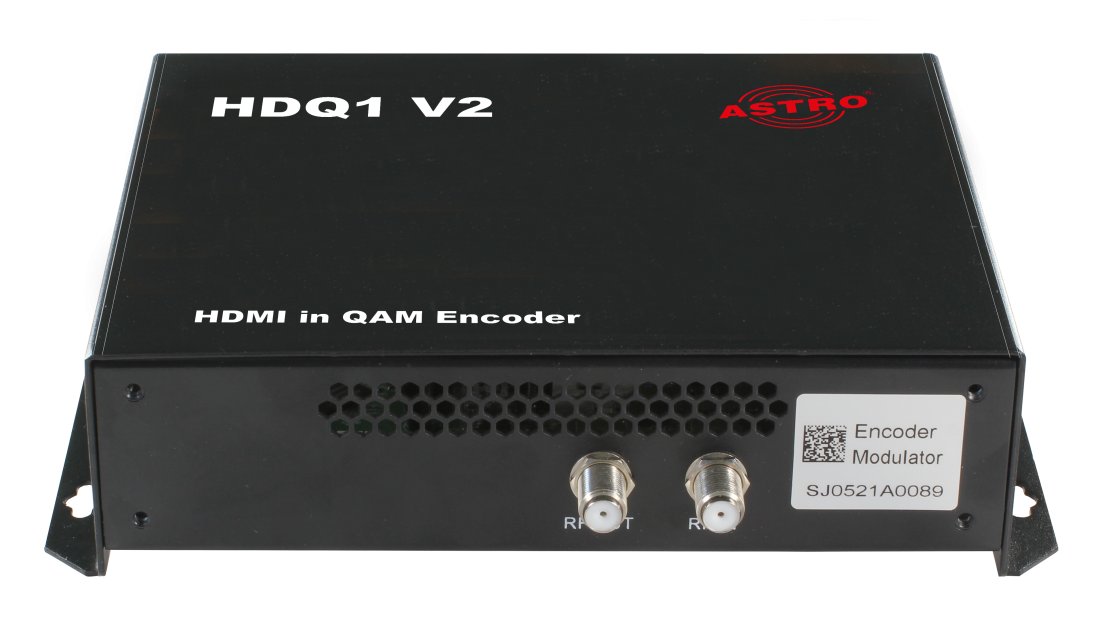

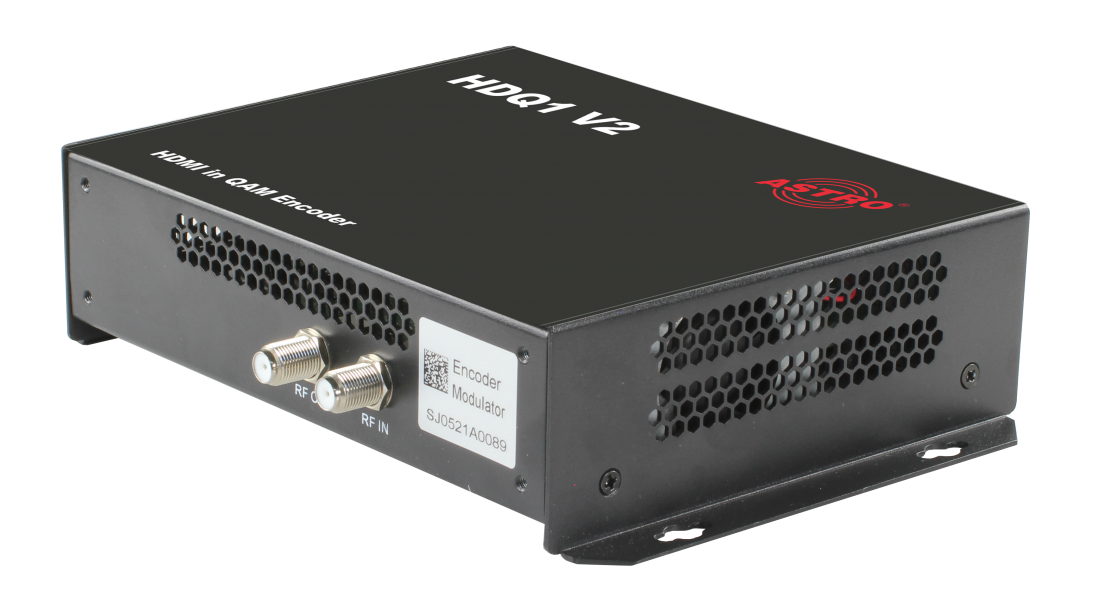

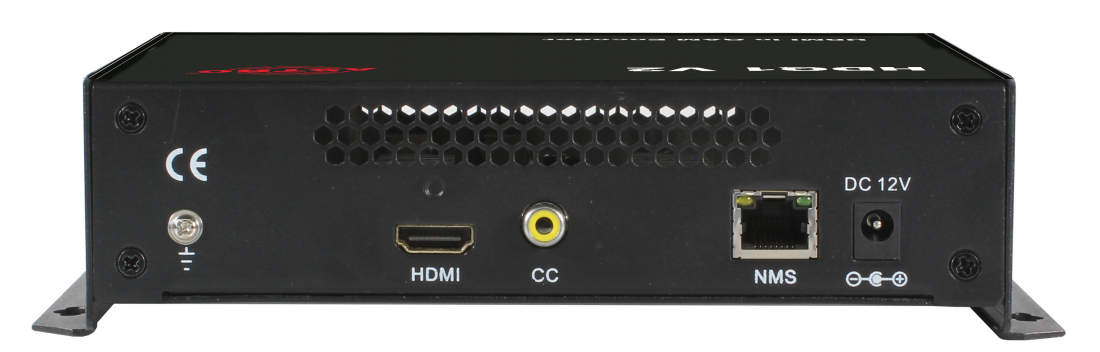

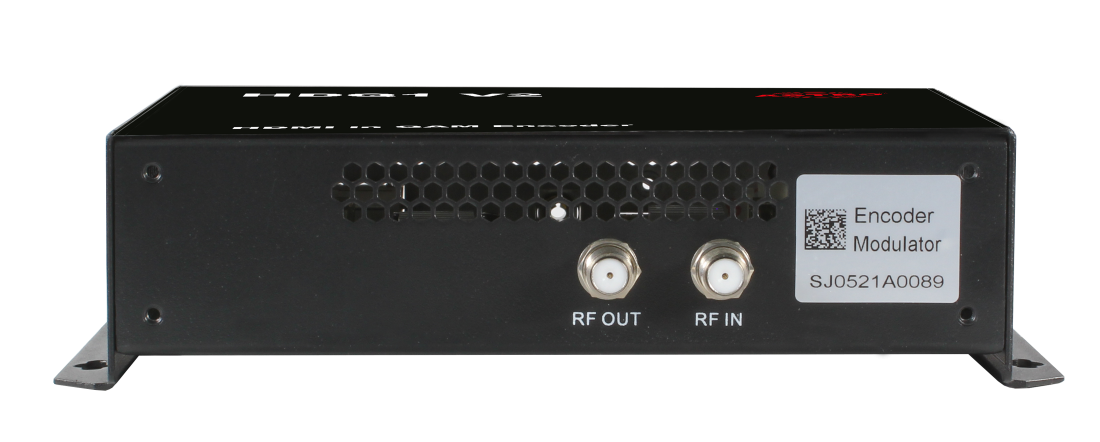

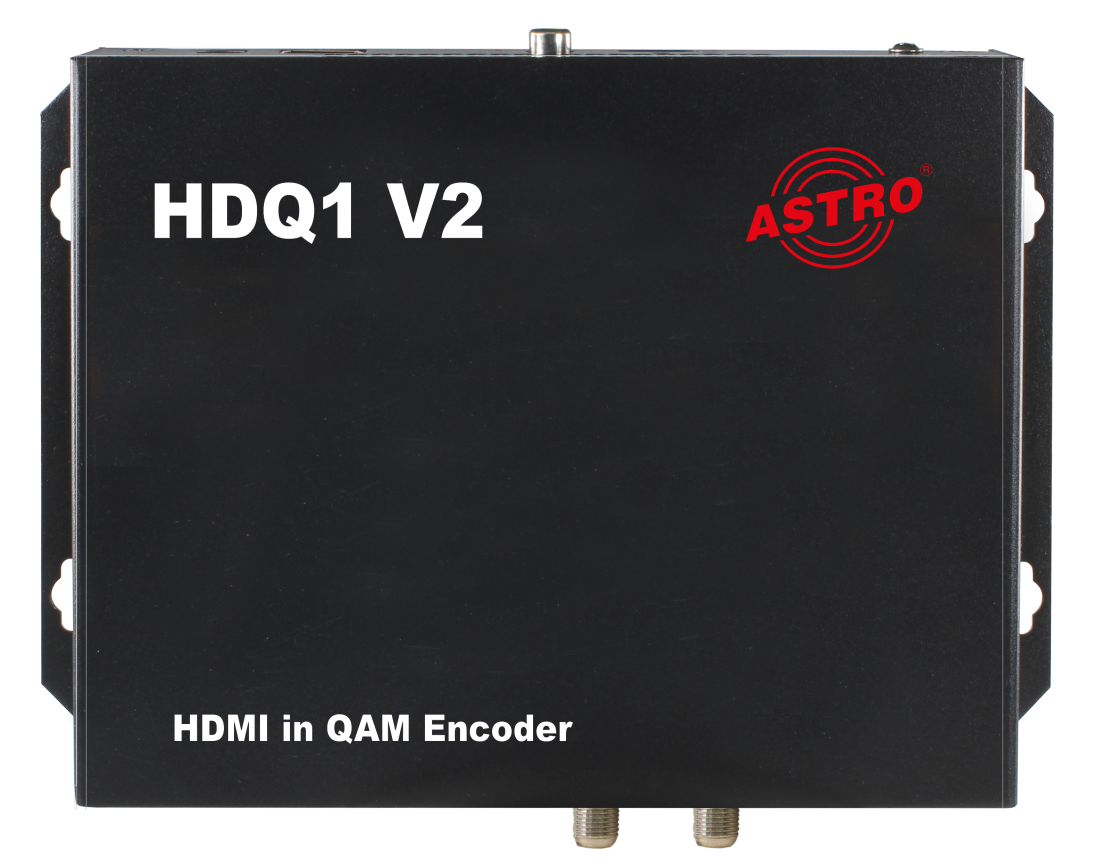

Stand-alone 1-way HDMI in QAM Encoder
Stand-alone 1-way HDMI in QAM Encoder - Image 2
Stand-alone 1-way HDMI in QAM Encoder - Image 3
Stand-alone 1-way HDMI in QAM Encoder - Image 4
Stand-alone 1-way HDMI in QAM Encoder - Image 5
Stand-alone 1-way HDMI in QAM Encoder - Image 6

Stand-alone 1-way HDMI in QAM Encoder

€ 445.00

Output: QAM via F-jack

HDQ1 V2

Specification

Module type

Base unit
Order number

00380288

EAN-Code

4026187210854

Out of stock

Product Details
  • Input: HDMI
  • MPEG 2 Encoder
  • Aspect ratio 16 : 9
  • Bit rate: 1,000 - 20,000 Mbps
  • Output: QAM via F-jack
  • MER: ≥ 35 dB
  • RF frequency range: 100 - 1,000 MHz
  • RF output level range: 46 - 93 dBµV
  • Symbol rate: 3,000 - 7,000 kBd
  • Power supply: 12 V DC via external power supply unit (included)
  • Dimensions: 203 x 144 x 52 mm
  • wall mounting
  • Weight without power supply unit: ca. 550 g
Download Details

Product is combinable with

Compact head-end DVB-S2 in QAM
QAM BOX eco FM
16 x DVB-S2 in 16 x QAM and 16 x FM
2.995,00 € plus VAT

Similar Products

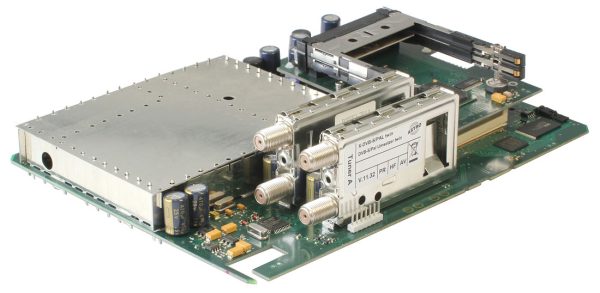

Signal converter 2 x DVB-S2 to 2 x 1 COFDM
X-COFDM duo S2 CI
plugin card for modular base units X-8 twin and V 16

No longer available

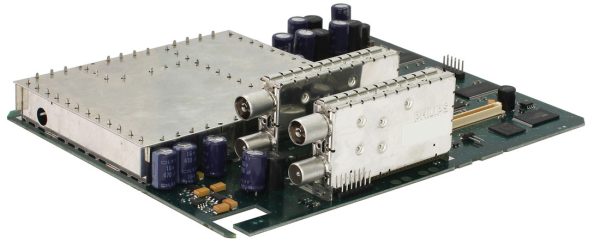

Signalumsetzer 2 x DVB-S in 1 x 2 Multinorm
