Signal converter 2 x DVB-C, DVB-T or DVB-T2 into COFDM
plugin card for modular base units X-8 twin and V16
Specification
| Module type | Plug-in card |
|---|---|
| Input signal | DVB T2, DVB-C, DVB-T |
| Output signal | DVB-T |
| Order number | 00330488 |
|---|---|
| EAN-Code | 4026187171421 |

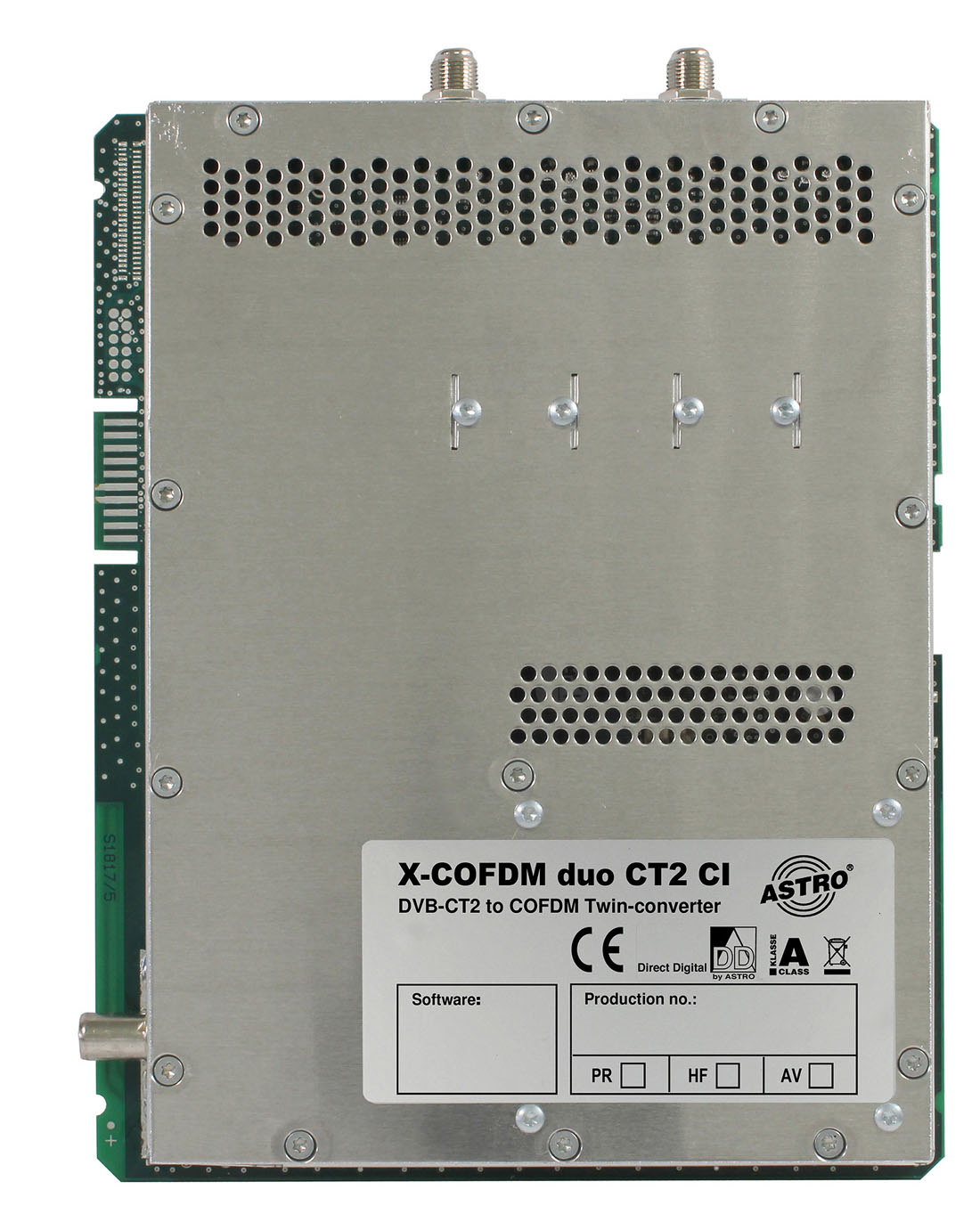

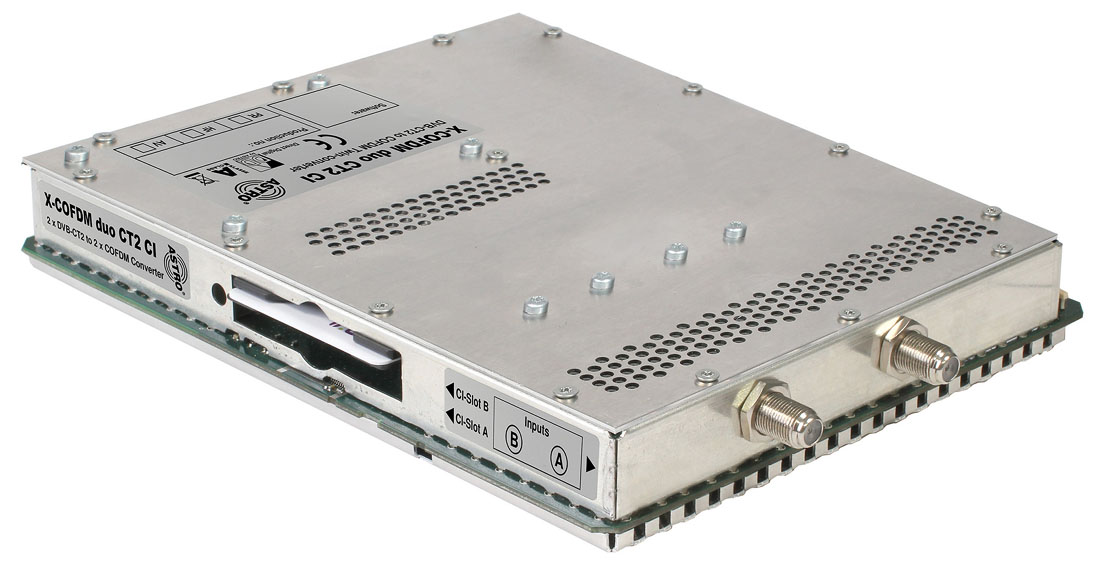

X-COFDM duo CT2 CI
No longer available
Product Details
- plugin card for modular base units X-8 twin and V16

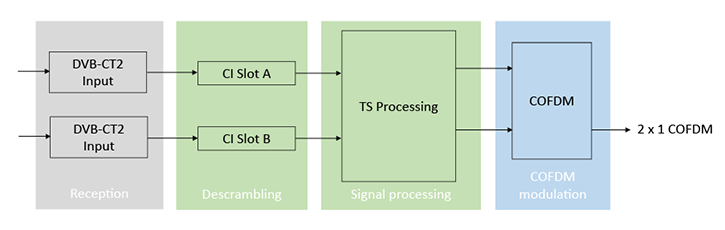

- for processing 2 DVB-C, DVB-T or DVB-T2 signals into COFDM
- integrated data rate adjustment
- PCR correction
- NIT generation
- PID filter
- WSS, teletext, VPS, different analogue TV standards programmable
- 2 cascadable CI interfaces
- outstanding output parameters by Direct Digital Technology
Download Details
