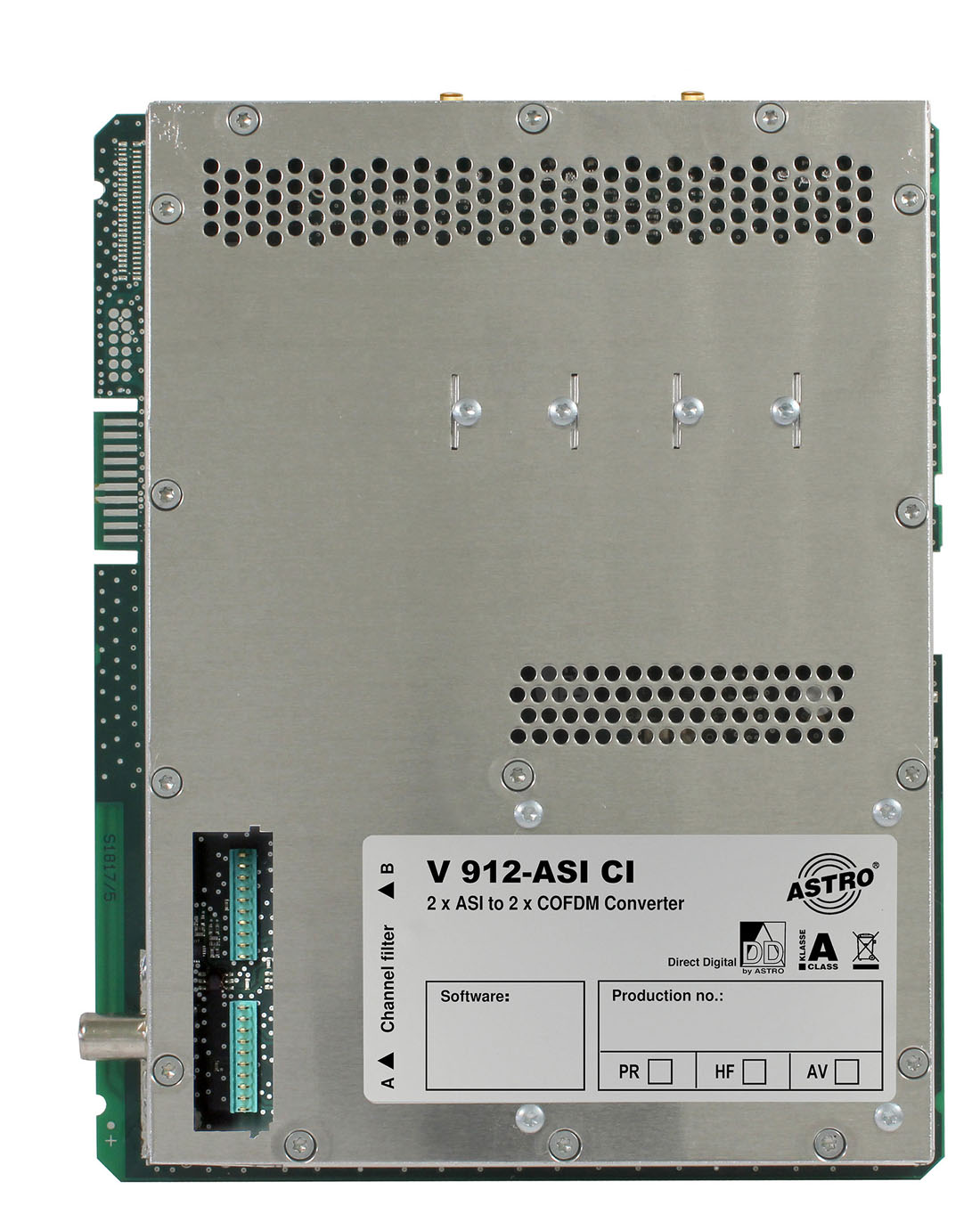

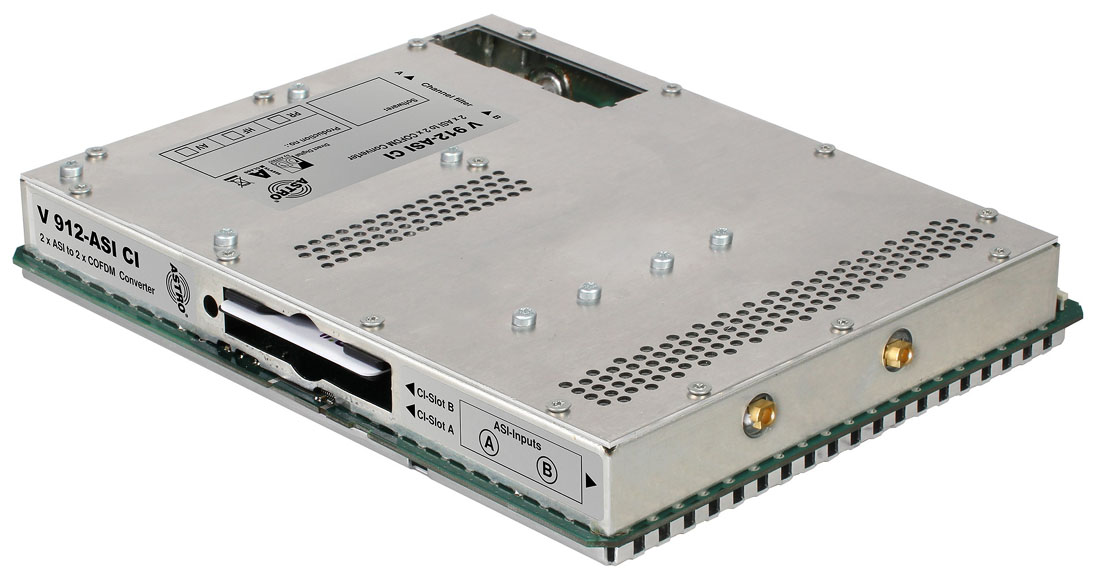

Signal converters 2 x ASI to 2 x 1 COFDM
plugin card for modular base unit V 16
Specification
| Module type | Plug-in card |
|---|---|
| Input signal | ASI |
| Output signal | DVB-T |
| Order number | 00380926 |
|---|---|
| EAN-Code | 4026187131593 |
V 912-ASI CI
No longer available
Product Details
- plugin card for modular base unit V 16
- for processing of 2 ASI input signals into 2 independent COFDM output channels
- selection of programmes for transmodulation happens via Pass- or Drop-Servicefilter
- 2 slots for channel selective filters
- 2 common interface slots with multichannel decoding
Download Details
-
Anleitung V 912-ASI CI pdf · 2mb
-

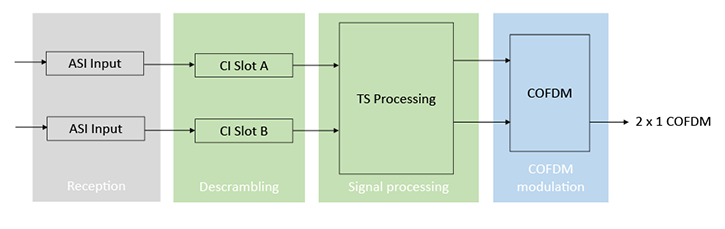

Blockschaltbild V 912-ASI_V 912-ASI CI pdf · 2mb
-
Datenblatt V 912-ASI_V 912-ASI CI pdf · 2mb
-
Datenblatt V 912-ASI_V 912-ASI CI [en] pdf · 2mb
