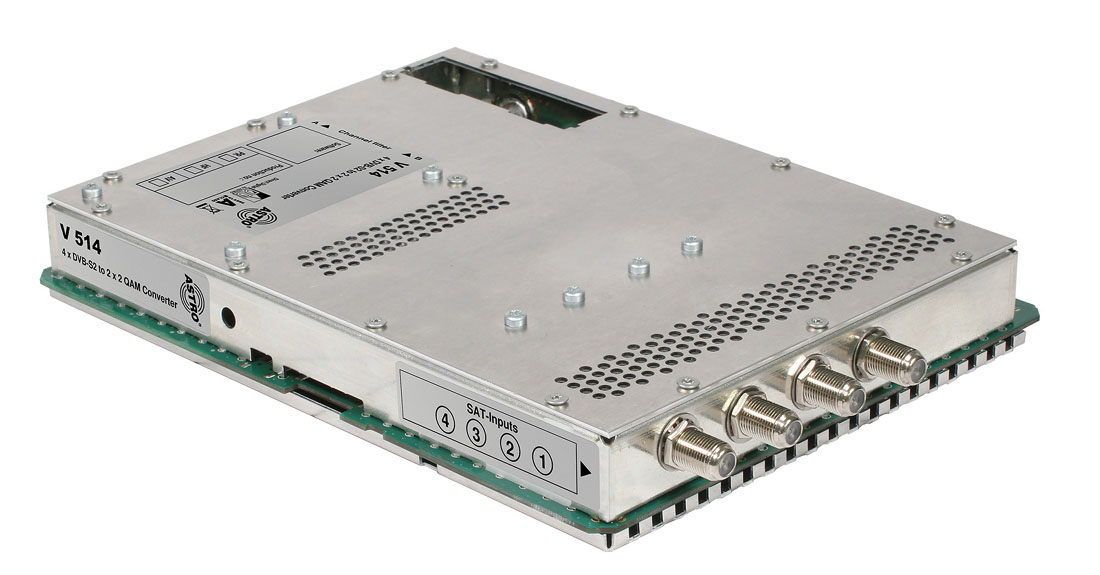

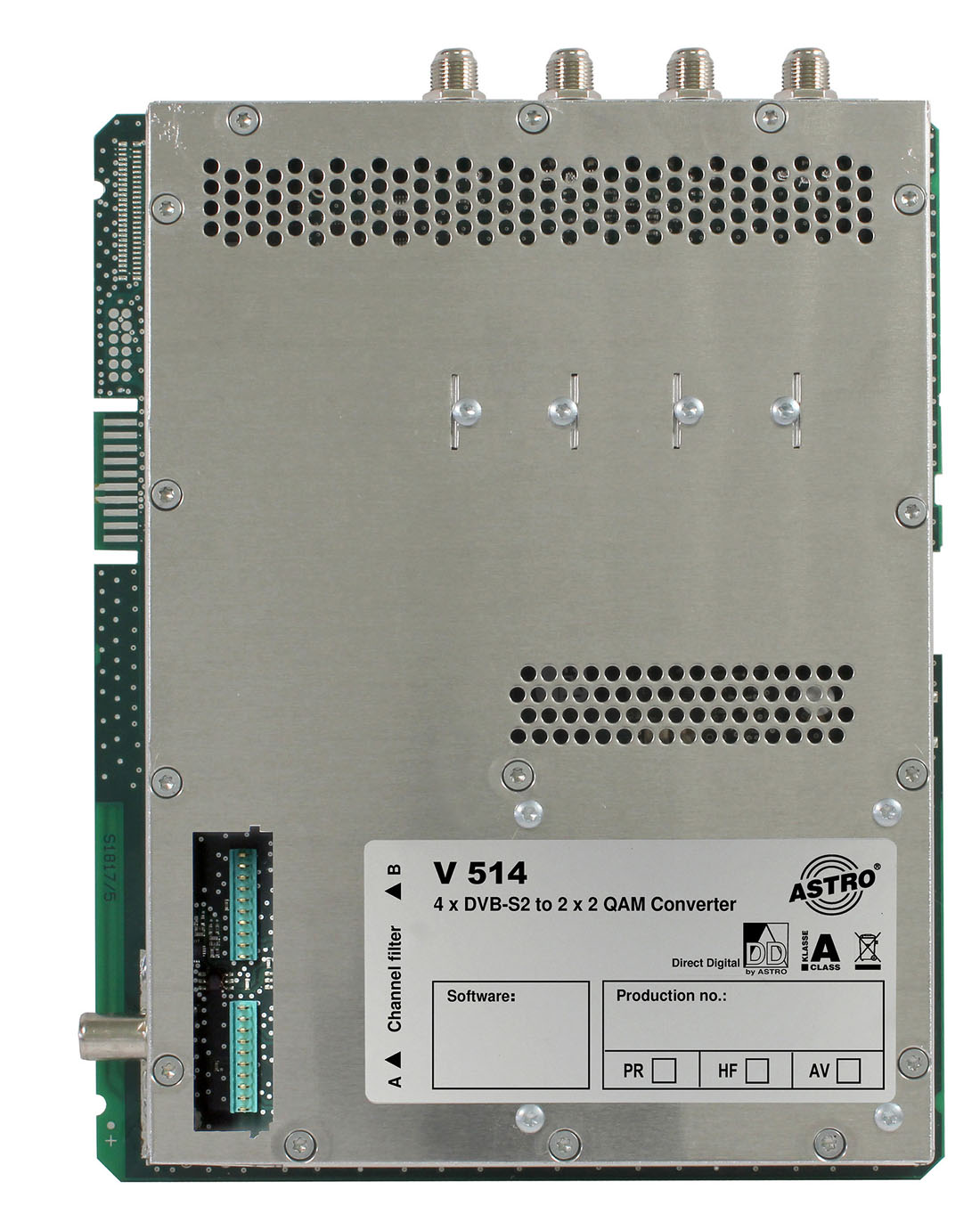

Signal converter 4 x DVB-S2 into 2 x 2 QAM
plugin card for modular base unit V 16
Specification
| Module type | Plug-in card |
|---|---|
| Input signal | DVB-S2 |
| Output signal | DVB-C |
| Order number | 00380514 |
|---|---|
| EAN-Code | 4026187611132 |
V 514
No longer available
Product Details
- plugin card for modular base unit V 16

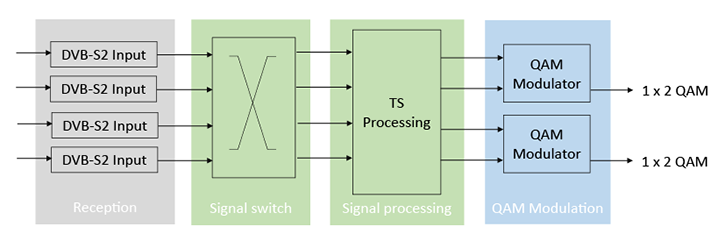

- 4 independent input signals are processed into 2 adjacent QAM channel pairs
- MER typ. 45 dB
- shoulder attenuation typ. 58 dB
- comfortable PID filtering (Online Drop- or Pass-PID)
- Data rate adjustment
- PCR correction and NIT generation
- input channel switch for multiple use of one SAT polarization to reduce cabling effort
- 2 slots for channel selective output filters
Download Details
-
Anleitung V 514 und X-QAM quad [en] pdf · 2mb
-
Datenblatt V 514_X-QAM 642_X-QAM quad pdf · 2mb
-
Anleitung V 514 und X-QAM quad pdf · 2mb
