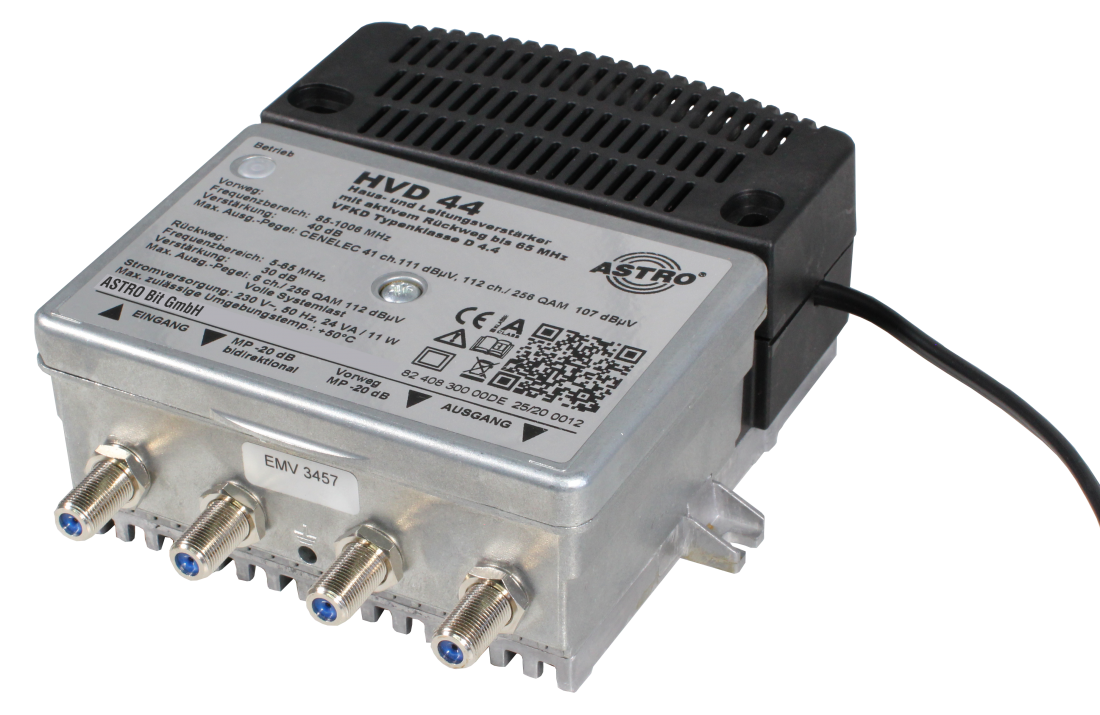

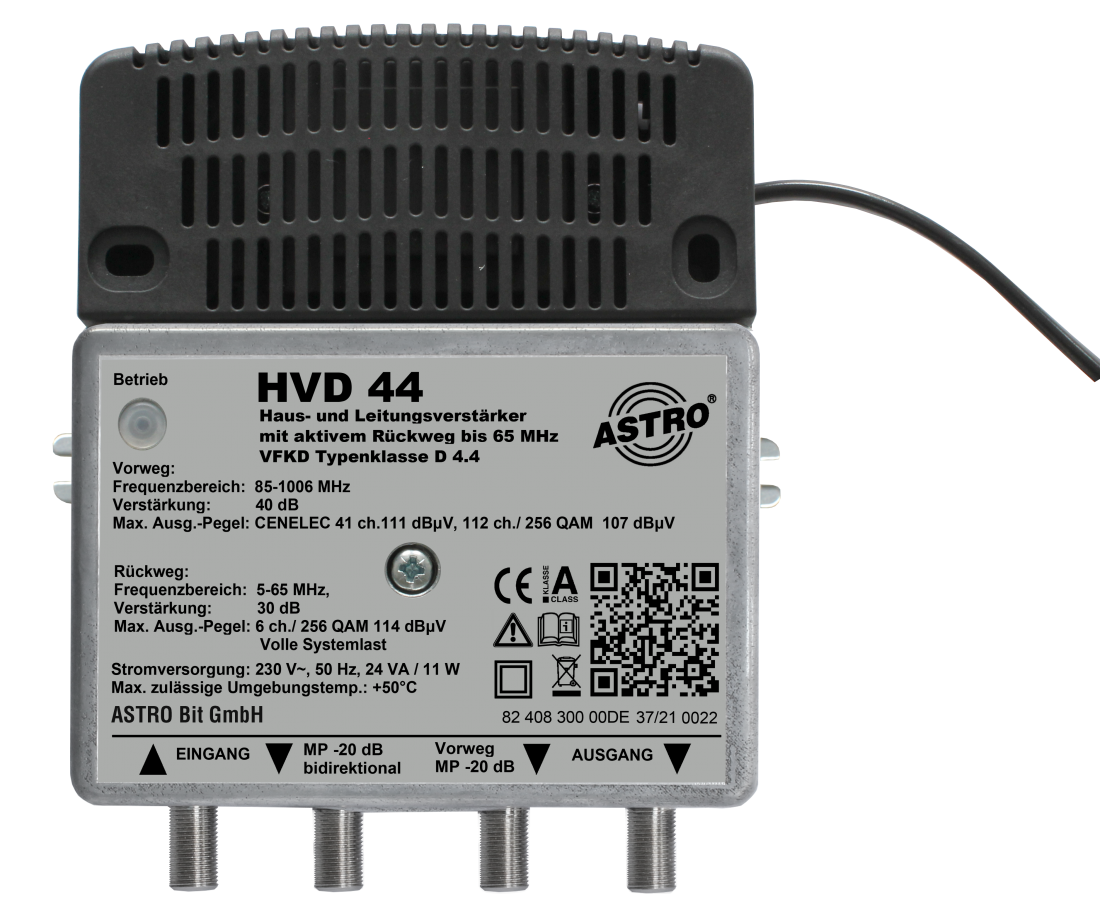

Universal broadband amplifier (5 pieces)
with active 65 MHz return path
HVD 44
Specification
| Device type | Compact |
|---|---|
| Power supply | Local |
| Frequency range | up to 1006 MHz |
| Forward path gain | >39 dB |
| Approval by network operator | Vodafone GmbH |
| Order number | 00217357 |
|---|---|
| EAN-Code | 4026187198930 |
Product Details

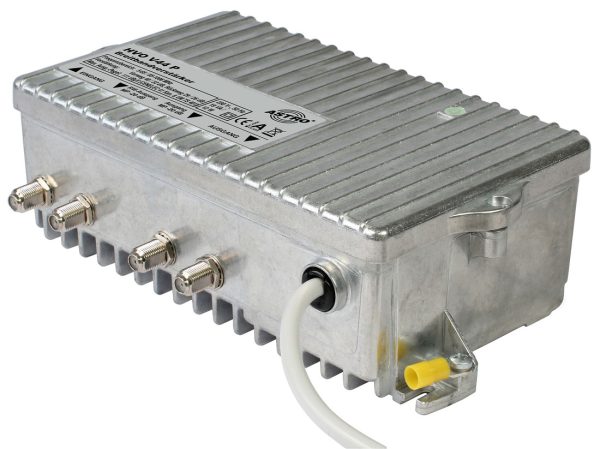

Successor for HVO V44 G
- Wideband amplifier with active 65 MHz return path
- high level control of the return path for operational reliability even with multi-channel load
- Attenuation in the input beforehand via level control 0 - 20 dB
- Equalizer in the input pre-path via level control 0 - 18 dB
- Interstage slope in the pre-path 0, 7 or 10 dB pluggable
- Attenuation in return path input via level control 0 - 15 dB
- Attenuation in return path output via level control 0 - 15 dB
- Interstage slope return path adjustable via level control 0 -10 dB
- Gain before travel 40 dB
- Output level pre-path 113 dBµV
- Gain return path 30 dB
- Output level return path 114 dBµV (According to EN 60728-3, draft, 6 Ch./8 MHz, 256 QAM, BER < 1E-9)
- 20 dB measuring point in input and output
- Vodafone certified, type class D(4.4)
Download Details
-
Betriebsanleitung HVD 44 DE pdf · 2mb
-
Blockschaltbild HVD 44 pdf · 2mb
-
Datenblatt HVD 44 DE pdf · 2mb
-
Produkt-Newsflyer HVD 44 DE pdf · 2mb
Product is combinable with
Grounding bracket
ESF 02
for connection of 2 coaxial cables and 1 earthing cable according to VDE regulations
