Broadband amplifier
Specification
| Device type | Compact |
|---|---|
| Power supply | Local |
| Frequency range | up to 862 MHz |
| Forward path gain | >39 dB |
| Order number | 00217390 |
|---|---|
| EAN-Code | 4026187140373 |

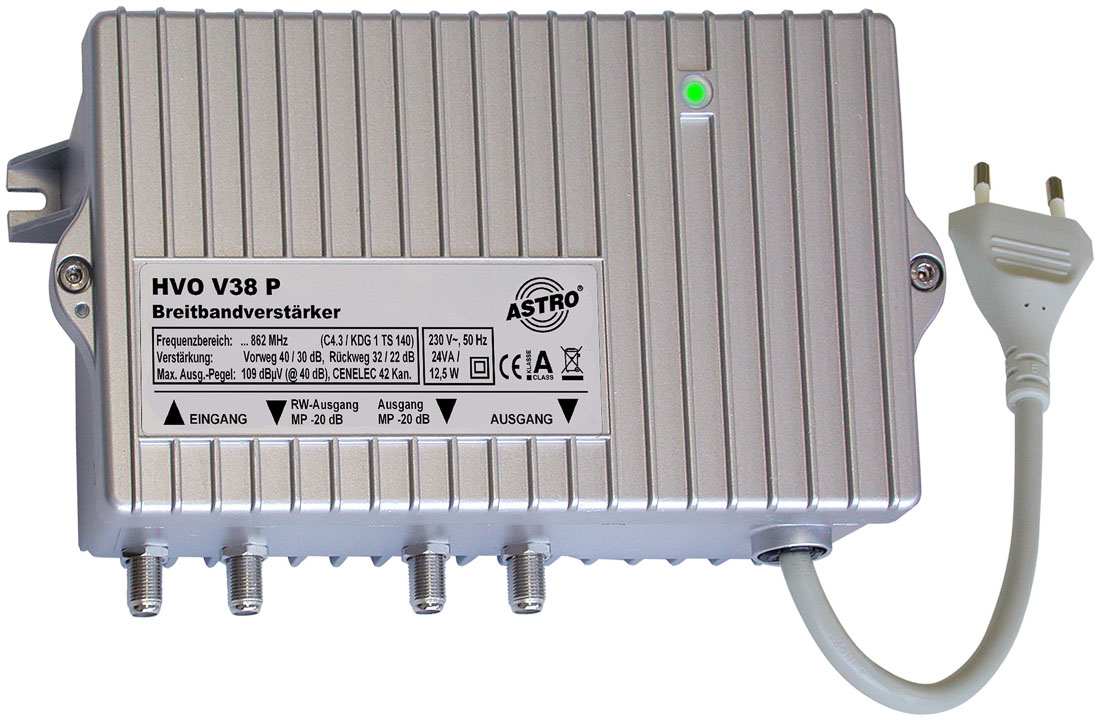

HVO V38 P
No longer available
Product Details
- Broadband amplifier with 65 MHz return path
- High output level with high C/N thanks to push-pull
- Diplexer and return path amplifier on-board
- 40/30 dB gain in forward path, switchable
- 32/22 dB gain in return path, switchable via jumper
- Switched signal paths are indicated by LEDs
- Measuring points in input and output
- Configuration via jumpers and pads
- Forward path up to 862 MHz
- Forward output level 111 dBµV
- Return output level 112 / 117 dBµV (2 / 3 transmitters)
- Option of band 1 pass-through (from 47 MHz without return path or with return path up to 65 MHz and forward path from 80 MHz)
Download Details
-
Anleitung HVO V38 P DE pdf · 2mb
-
Datenblatt HVO V38 P EN pdf · 2mb
-

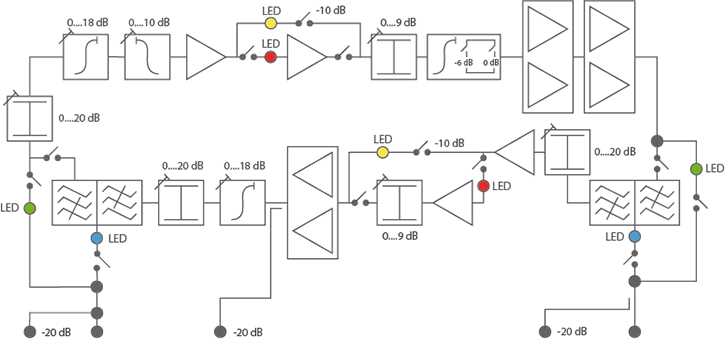

Blockschaltbild HVO V38 P pdf · 2mb
-
Datenblatt HVO V38 P DE pdf · 2mb
