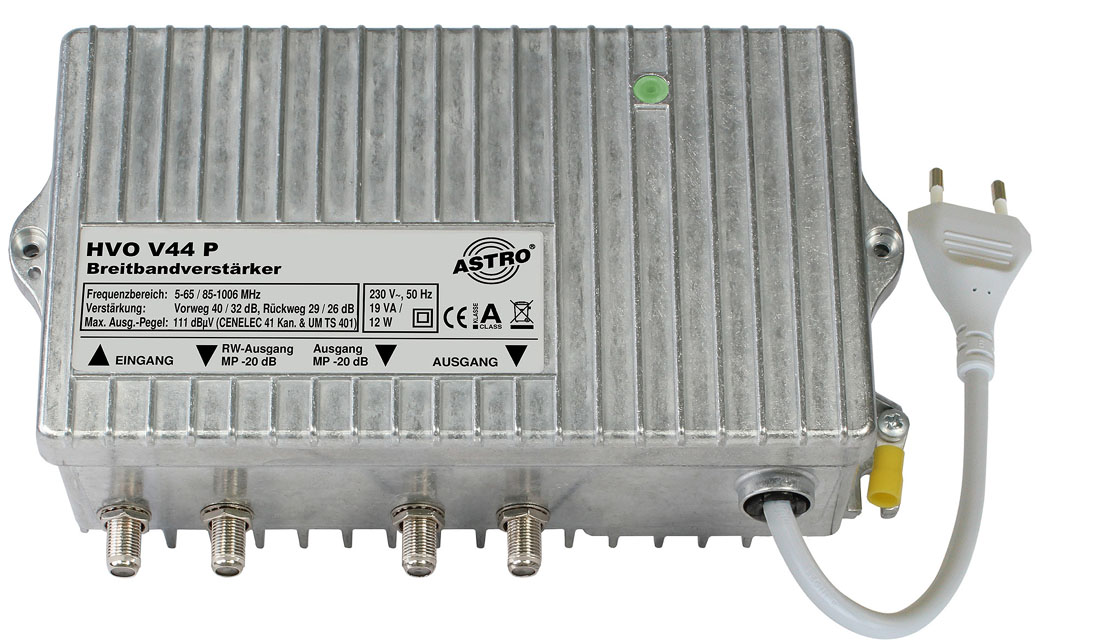

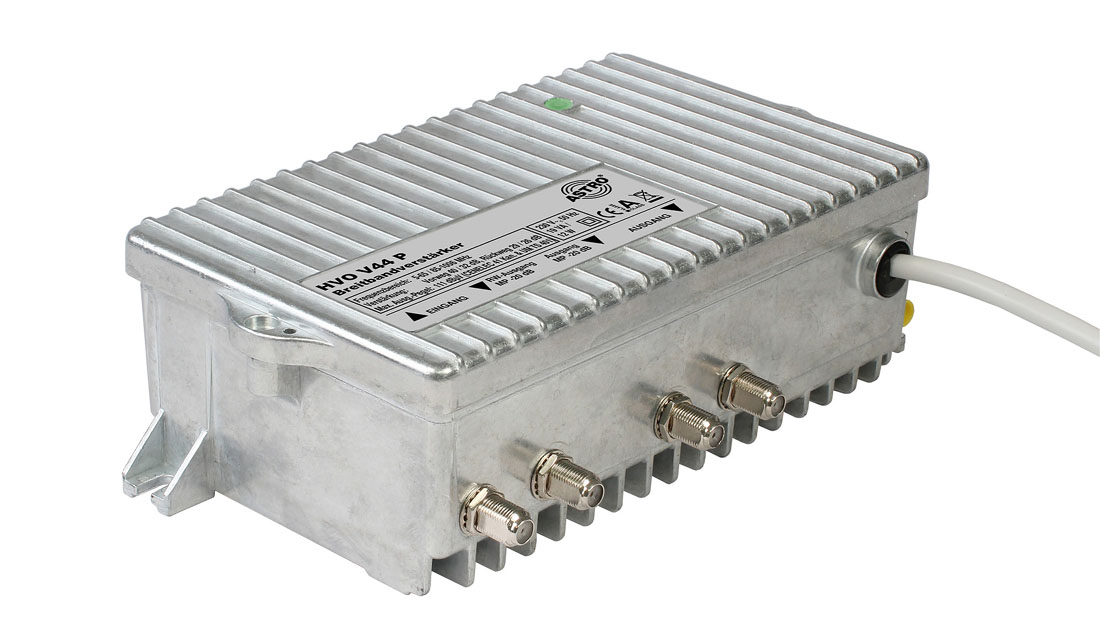

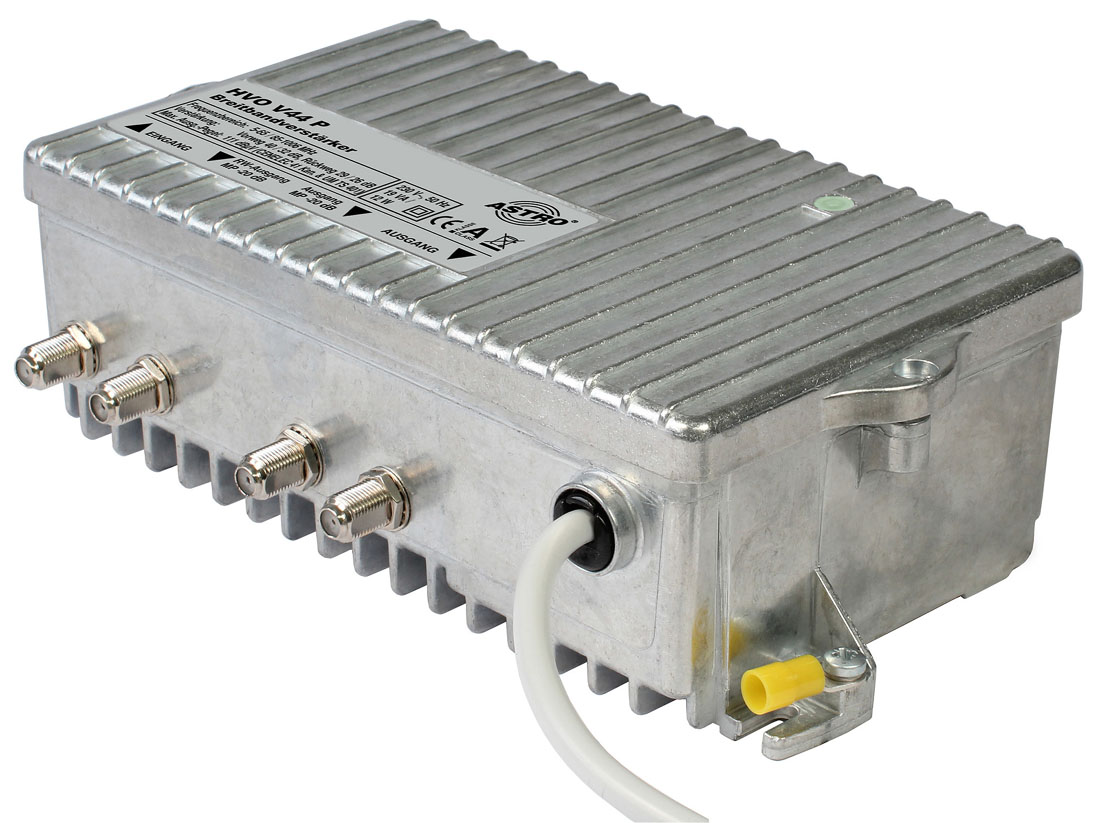

Broadband amplifier
with 65 MHz return path
HVO V44 P
Specification
| Device type | Compact |
|---|---|
| Power supply | Local |
| Frequency range | up to 1006 MHz |
| Forward path gain | >39 dB |
| Approval by network operator | Vodafone GmbH |
| Order number | 00217404 |
|---|---|
| EAN-Code | 4026187171223 |
No longer available
Product Details
- Local powered broadband amplifier with 65 MHz return path
- forward path up to 1006 MHz
- gain forward path 40 / 32 dB
- output level forward path 111 dBµV
- gain return path 29 / 26 dB
- output level return path 116 / 112 dBµV (2 / 3 carriers)
- various configuration options
Download Details
-
Data sheet HVO V44 P EN pdf · 2mb
-
Manual HVO V44 P DE pdf · 2mb
-
Block diagram HVO V44 P pdf · 2mb
-
Data sheet HVO V44 P DE pdf · 2mb
