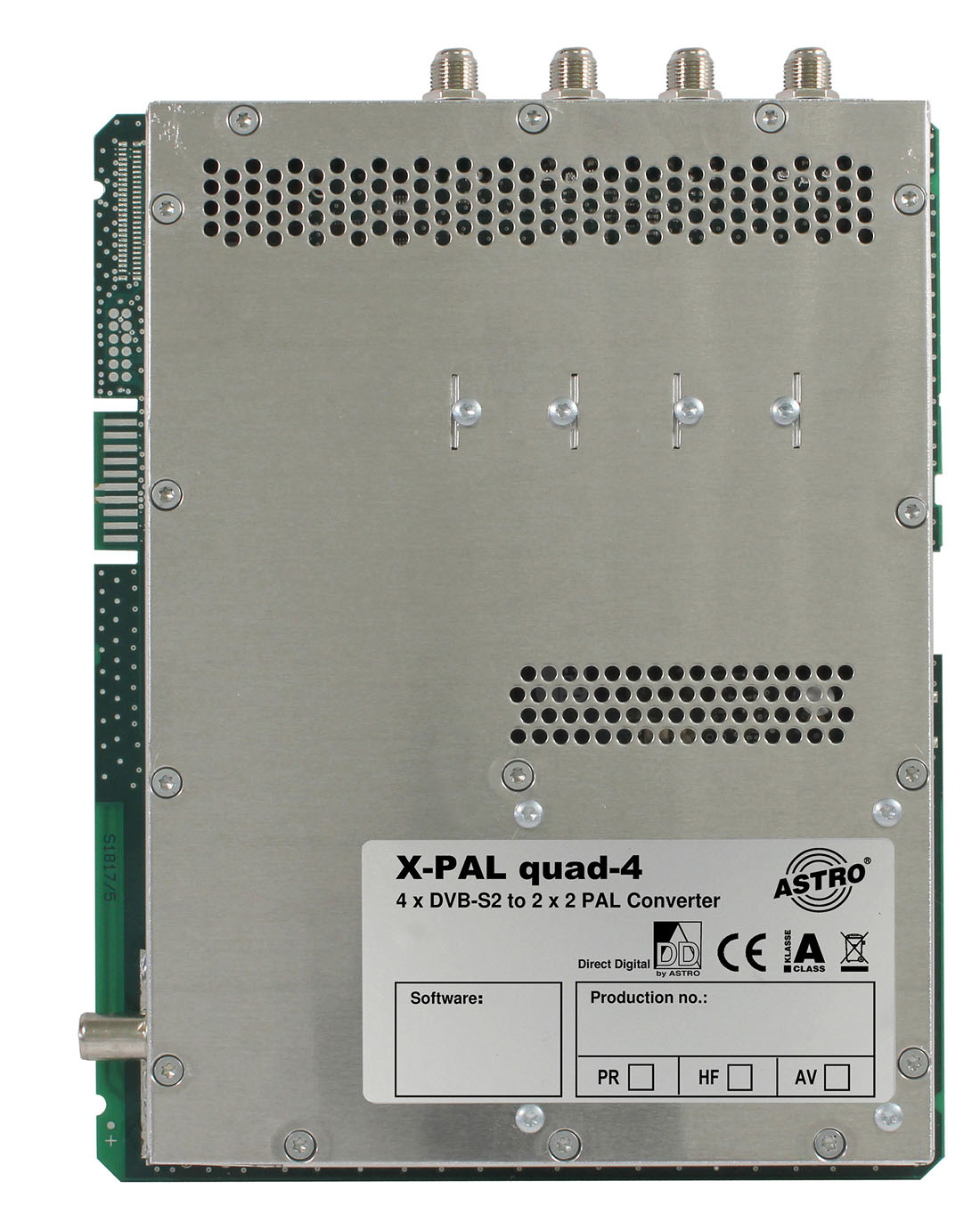

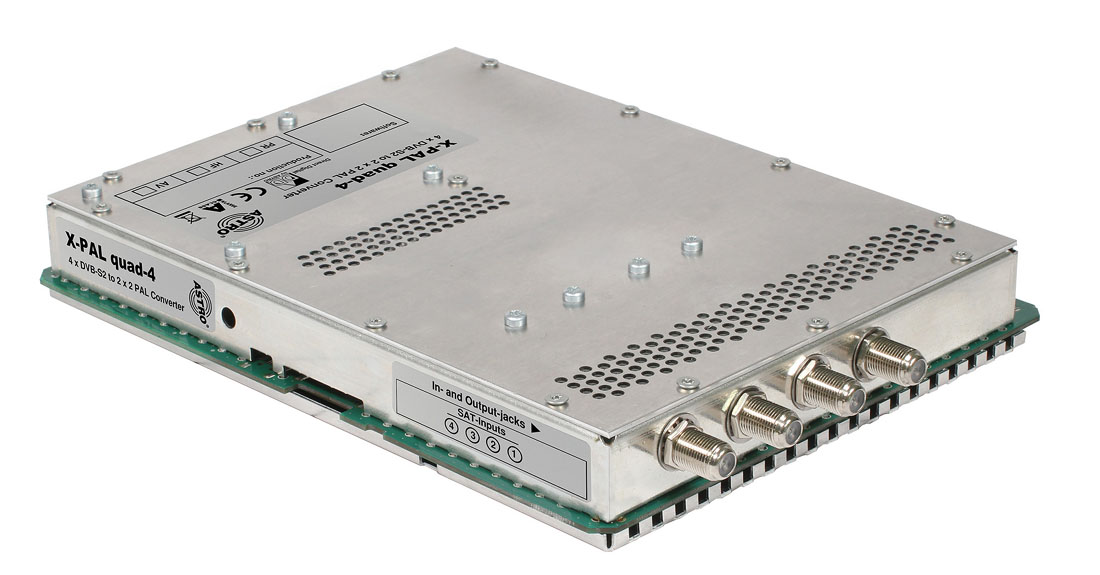

Signal converter 4 x DVB-S into 2 x 2 PAL
plugin card for modular base units X-8 twin and V 16
X-PAL quad-4
Specification
| Module type | Plug-in card |
|---|---|
| Input signal | DVB-S |
| Output signal | PAL |
| Order number | 00380331 |
|---|---|
| EAN-Code | 4026187150839 |
No longer available
Product Details
- plugin card for modular base units X-8 twin and V 16

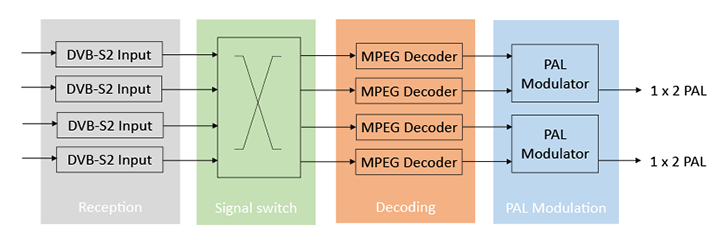

- processing of 4 independent DVB-S input signals into 2 PAL adjacent channel pairs in the frequenzy range 47 to 862 MHz
- Beyond standard features like VPS, teletext and WSS this transcoder offers free programmable tickertext, which can time controlled or in case of error inform customers.
- input signal switch for multiple use of one SAT polarization to reduce cabling effort
- 2 slots for channel selective output filters
- outstanding output parameters by Direct Digital Technology
Download Details
-
Anleitung V 614-4 und X-PAL quad 4 pdf · 2mb
-
Datenblatt V 614-4_X-PAL quad [en] pdf · 2mb
-
Datenblatt V 614-4_X-PAL quad pdf · 2mb
-
Blockschaltbild V 614-4_X-PAL quad pdf · 2mb
