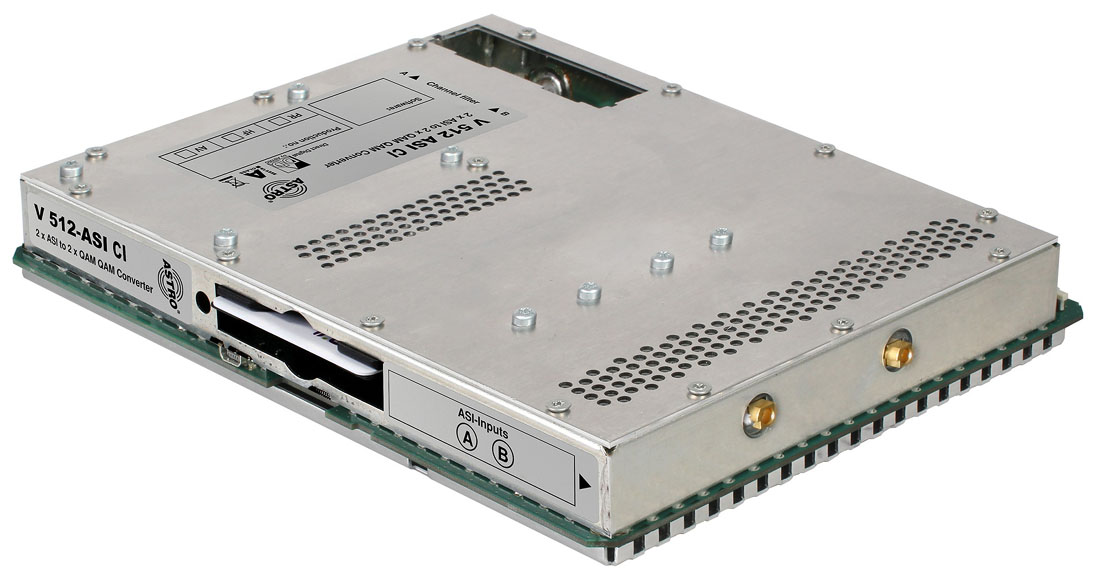

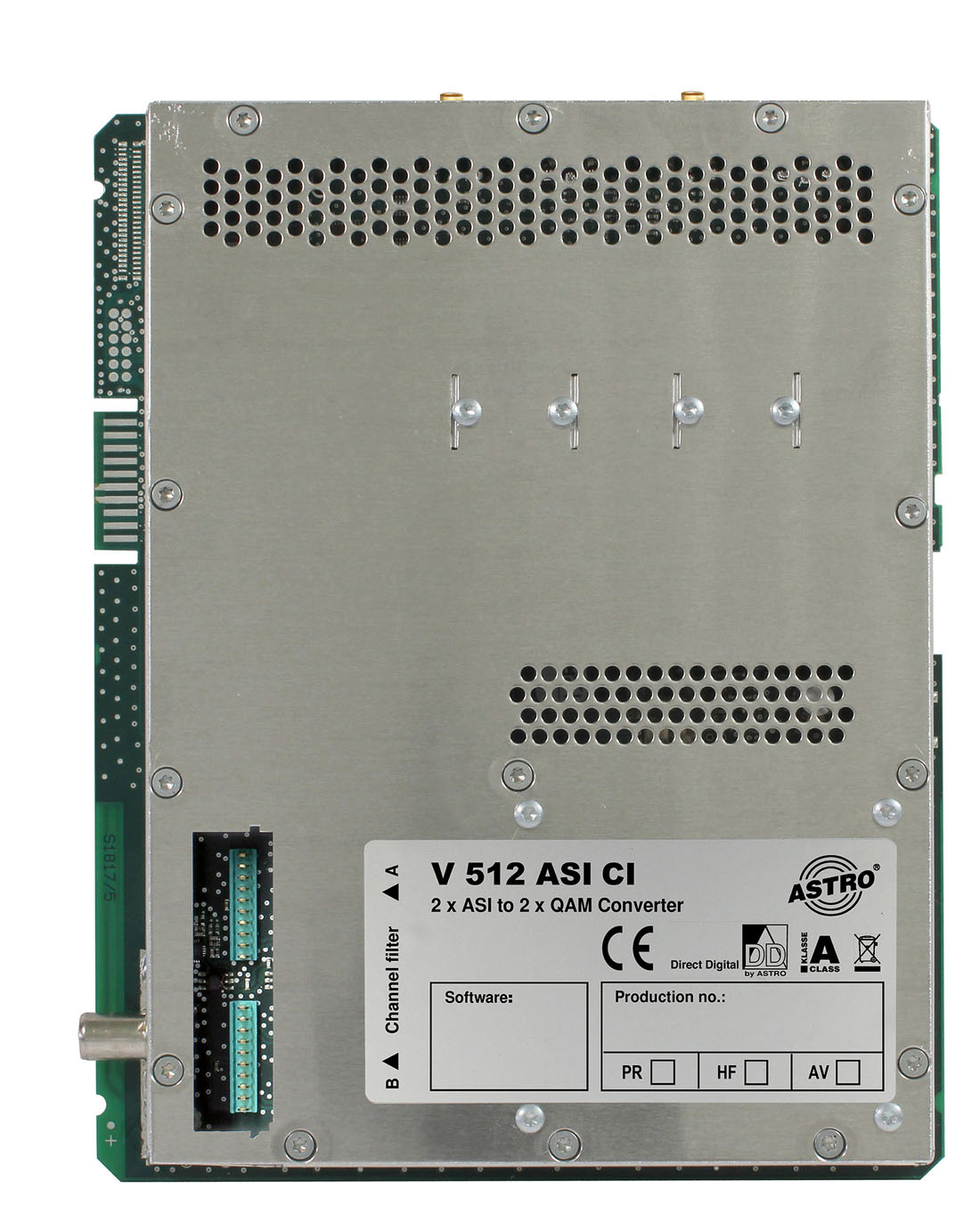

Signal converter 2 x ASI into 2 x 1 QAM
Signal converter 2 x ASI into 2 x 1 QAM - Image 2
Signal converter 2 x ASI into 2 x 1 QAM - Image 3

Signal converter 2 x ASI into 2 x 1 QAM

plugin card for modular base unit V 16

Specification

Module type

Plug-in card
Input signal

ASI
Output signal

DVB-C
Order number

00380511

EAN-Code

4026187190750

V 512-ASI CI

No longer available

Product Details
  • plugin card for modular base unit V 16

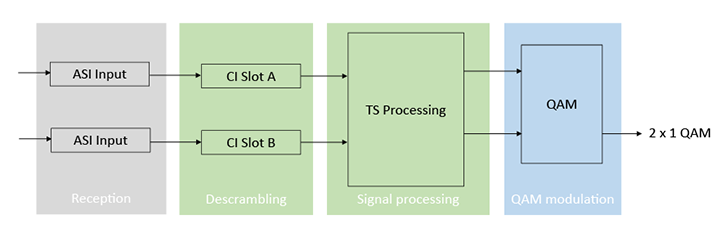

  • for processing of 2 ASI input signals into 2 independent QAM output channels
  • integrated data rate adjustment
  • PCR correction
  • NIT generation
  • Online-Service-PID-Filter
  • 2 cascadable CI interfaces with Multi Channel Descrambling
  • 2 slots for channel selective output filters
  • outstanding output parameters by Direct Digital Technology
Download Details

Product is combinable with

Modular head-end base unit
V 16.25
base unit for mounting up to 8 plugin cards of the X and V series

No longer available
