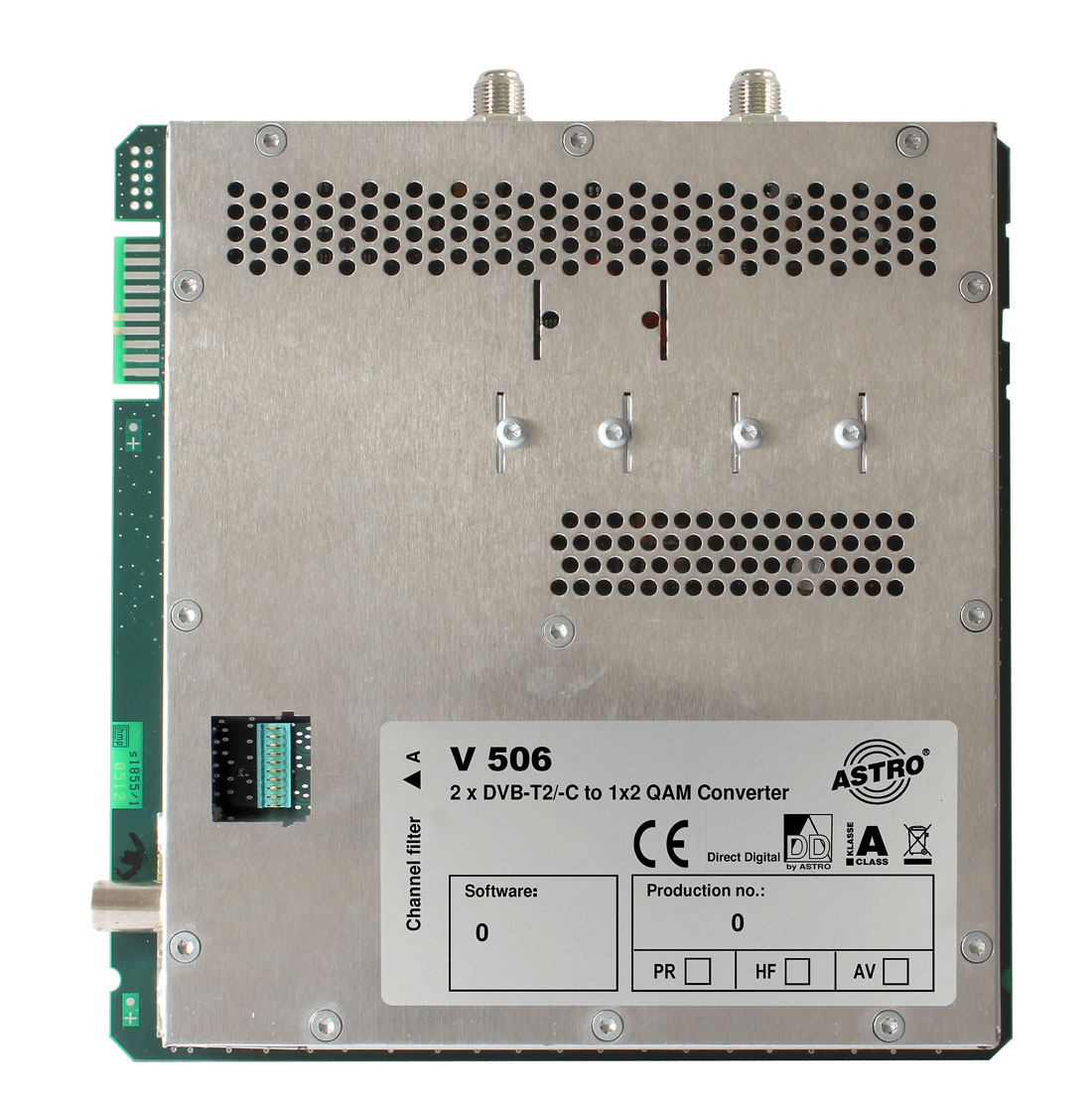

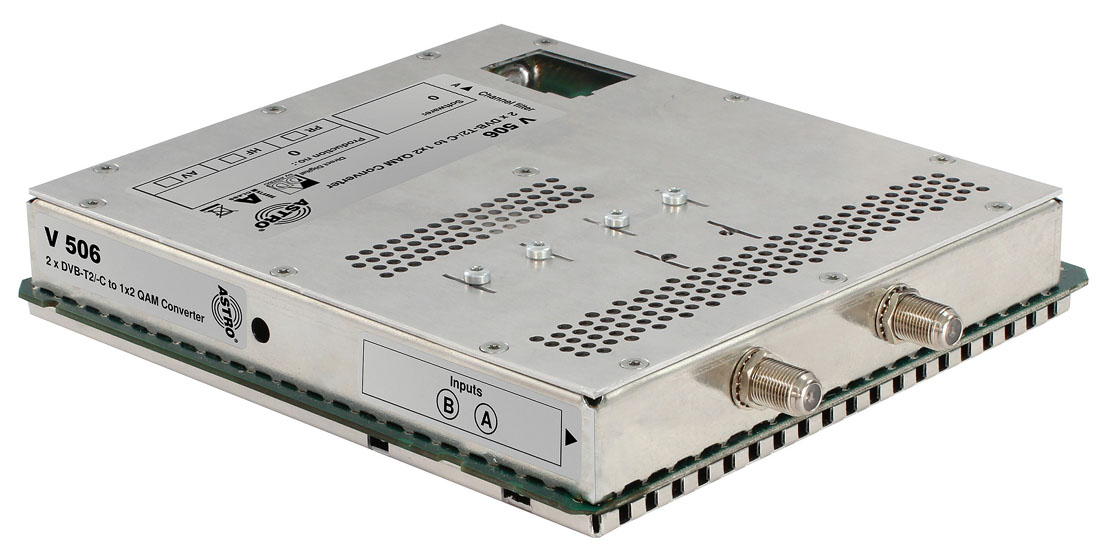

Signal converter 2 x DVB-C, DVB-T or DVB-T2 into 1 x 2 QAM
plugin card for modular base unit V 16
Specification
| Module type | Plug-in card |
|---|---|
| Input signal | DVB T2, DVB-C, DVB-T |
| Output signal | DVB-C |
| Order number | 00380516 |
|---|---|
| EAN-Code | 4026187003524 |
V 506
No longer available
Product Details
- plugin card for modular base unit V 16
- for processing of 2 DVB-C, DVB-T or DVB-T2 signals into 2 QAM adjacent channels
- integrated data rate adjustment
- PCR correction
- NIT generation
- PID filter
- one slot for channel selective output filters
- outstanding output parameters by Direct Digital Technology
Download Details
-
Anleitung V 506 und X-QAM 621 CT2 [en] pdf · 2mb
-
Anleitung V 506 und X-QAM 621 CT2 pdf · 2mb
-
Datenblatt V 506_X-QAM 621 CT2 [en] pdf · 2mb
-
Datenblatt V 506_X-QAM 621 CT2 pdf · 2mb
-

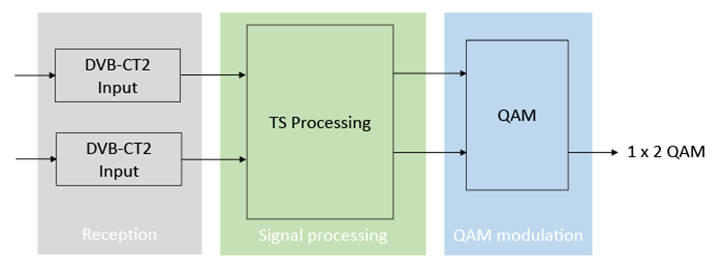

Blockschaltbild V 506_X-QAM 621 CT2 pdf · 2mb
