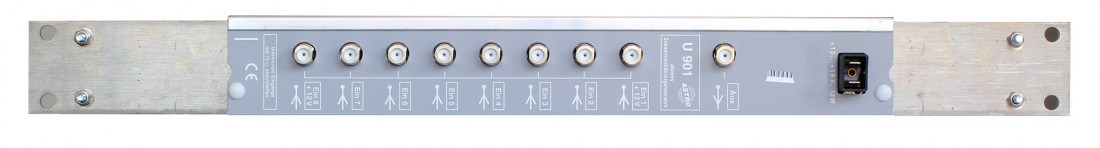

Active combining network

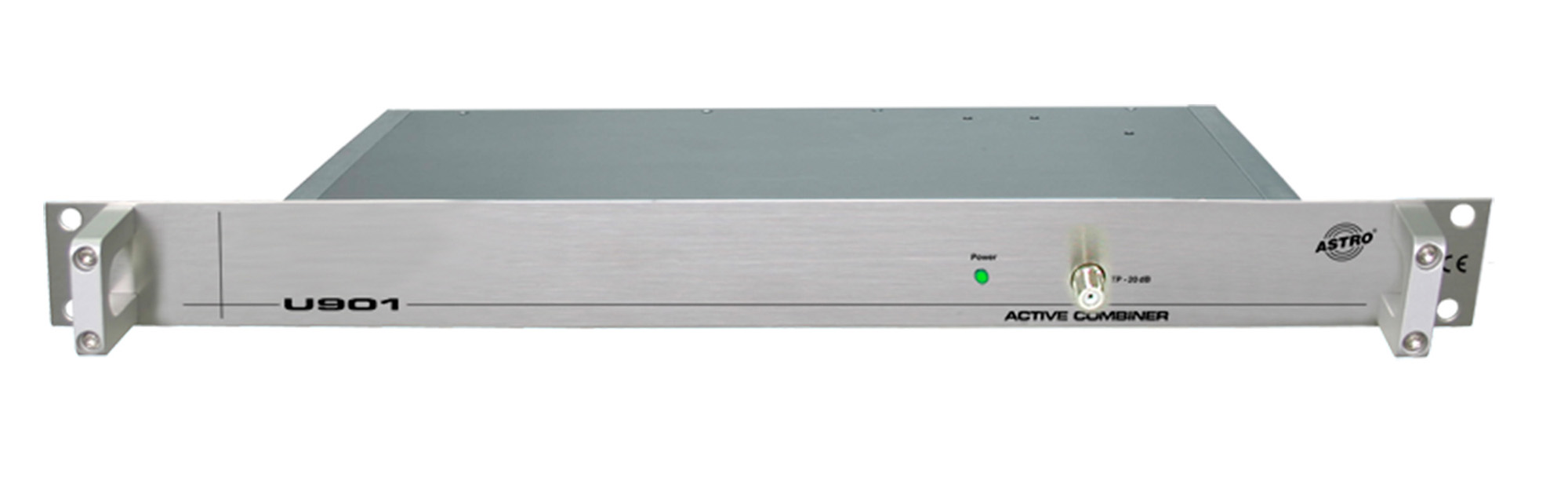

Active combining network - Image 2

Active combining network

€ 478.95

combining of up to 8 base units

U 901

Specification

Accessory type

Active combining
Order number

00380190

EAN-Code

4026187651244

Out of stock

Product Details
  • for extremely low-noise and low-distortion combining of up to 8 base units
  • gain matching can be effected individually either for each input or all inputs by means of fixed attenuation pads
  • preemphase adjustable
  • testpoint (-20 dB, directional coupler) for measuring purposes
  • can receive the operating voltage either directly via the RF inputs (remote feeding via V 16) or via an external power supply
  • 19" housing, 1 RU
Download Details

Product is combinable with

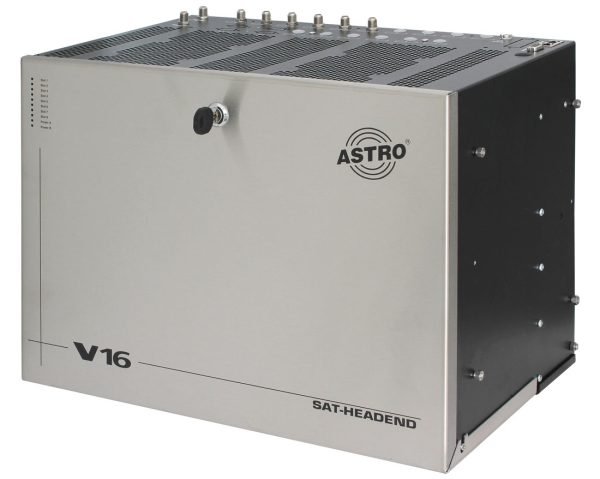

Modular head-end base unit
V 16.1
for mounting up to 8 plugin cards of the X and V series

No longer available

Modular head-end base unit
V 16.2
base unit for mounting up to 8 plugin cards of the X and V series

No longer available
