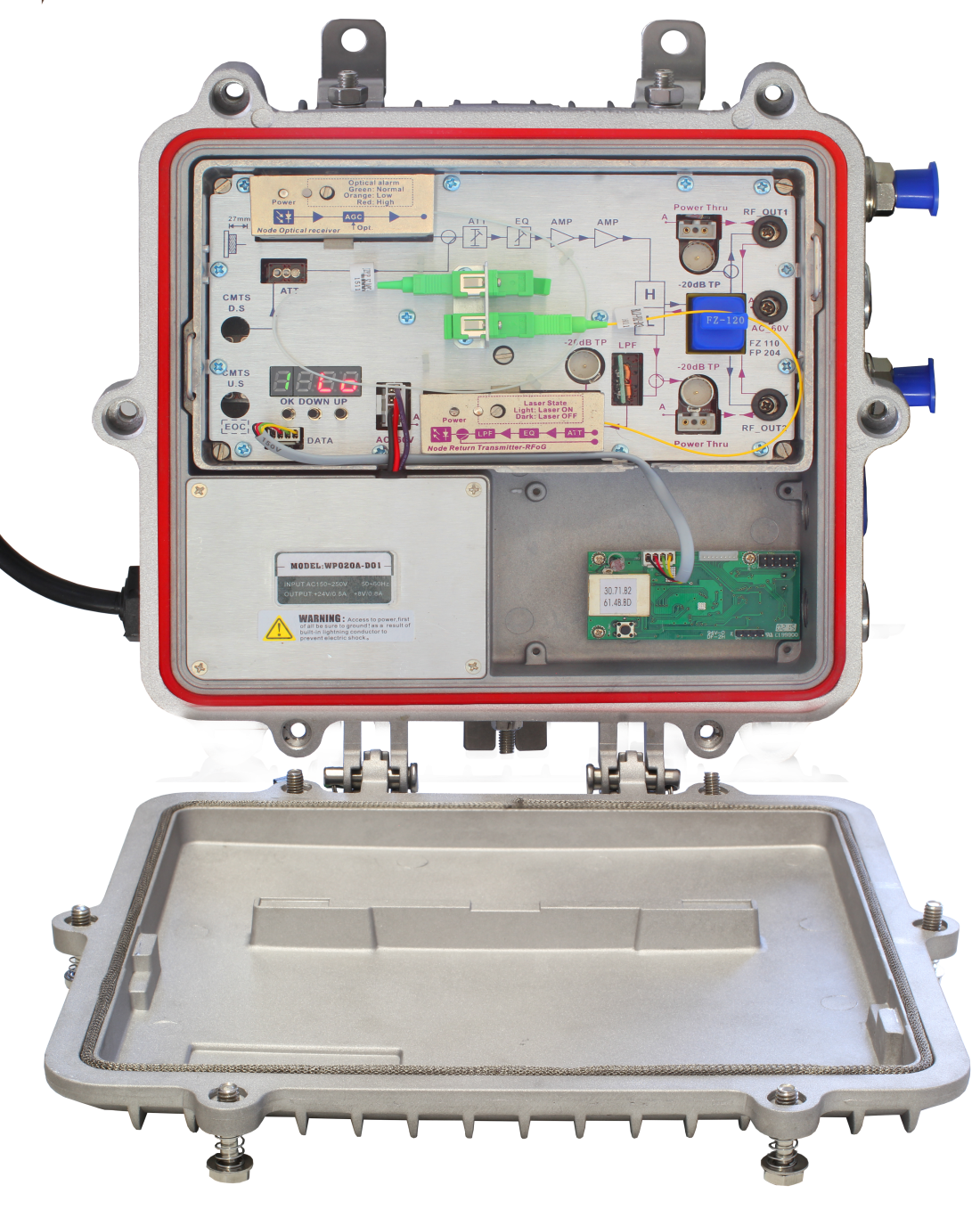

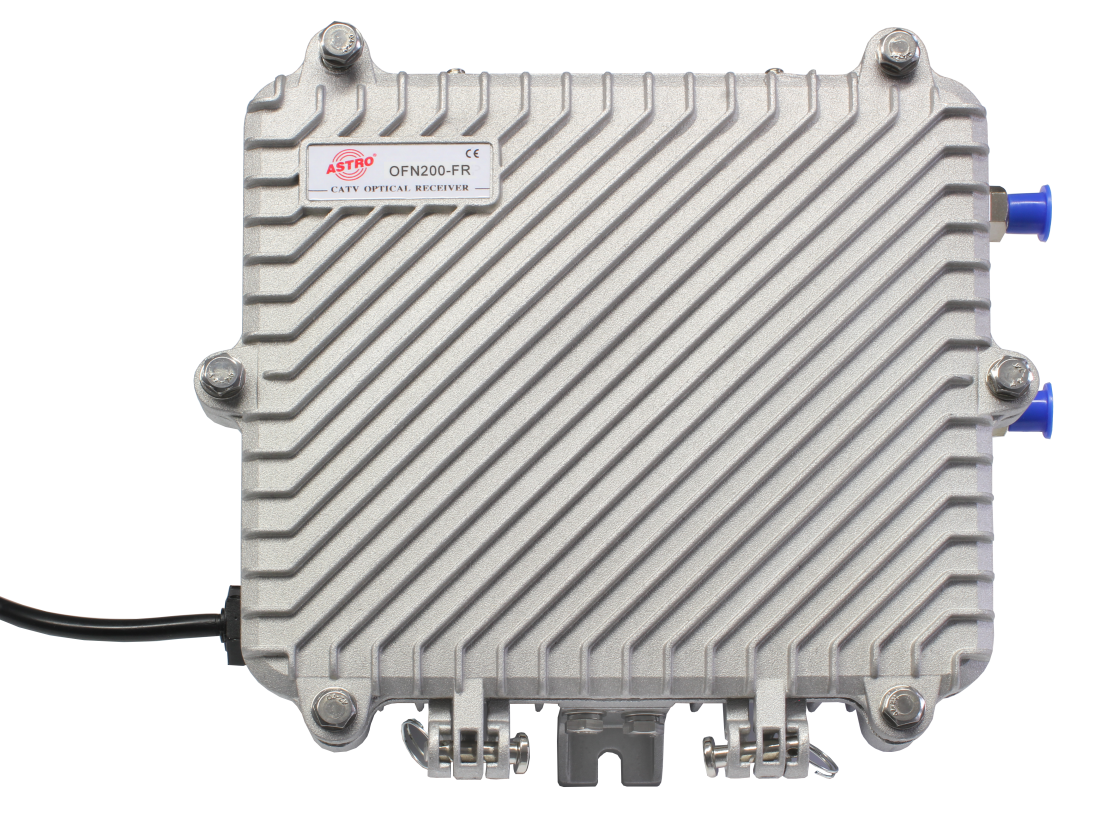

Modular optical CATV Node
€ 369.00
Downstream reception of CATV signals
OFN200-FR-1330 AC
Specification
| Type | Modular Node |
|---|
| Order number | 00212152 |
|---|---|
| EAN-Code | 4026187194819 |
Out of stock
Product Details
- FTTB/FTTC optical Node
- Downstream reception of CATV signals
- integrated 3 dBm / 1330 nm upstream transmitter
- optical input power -7 ... +2 dBm
- nominal output level >108 dBµV (@ OMI 3,5%)
- electronically adjustable attenuation and equalizer
- RF frequency range 5-65 MHz / 87-1006 MHz
- operational voltage 150 - 265 VAC
- optical connectors SC/APC
Download Details
-
Anleitung OFN200 DE pdf · 2mb
-
Anleitung OFN200 EN pdf · 2mb
-
Datenblatt OFN200 Serie DE pdf · 2mb
-
Datenblatt OFN200 Serie EN pdf · 2mb
-
Blockschaltbild OFN200-FR pdf · 2mb
