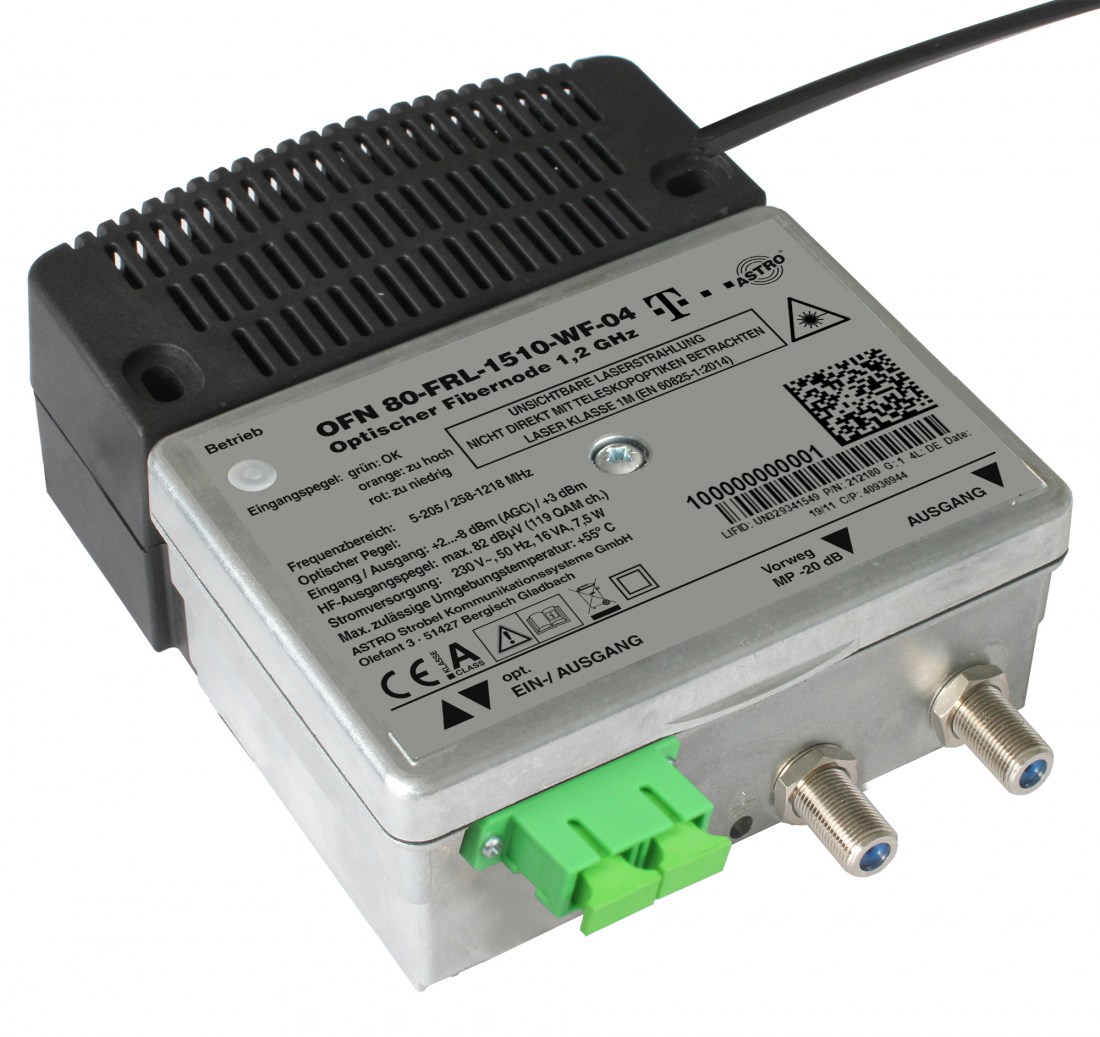

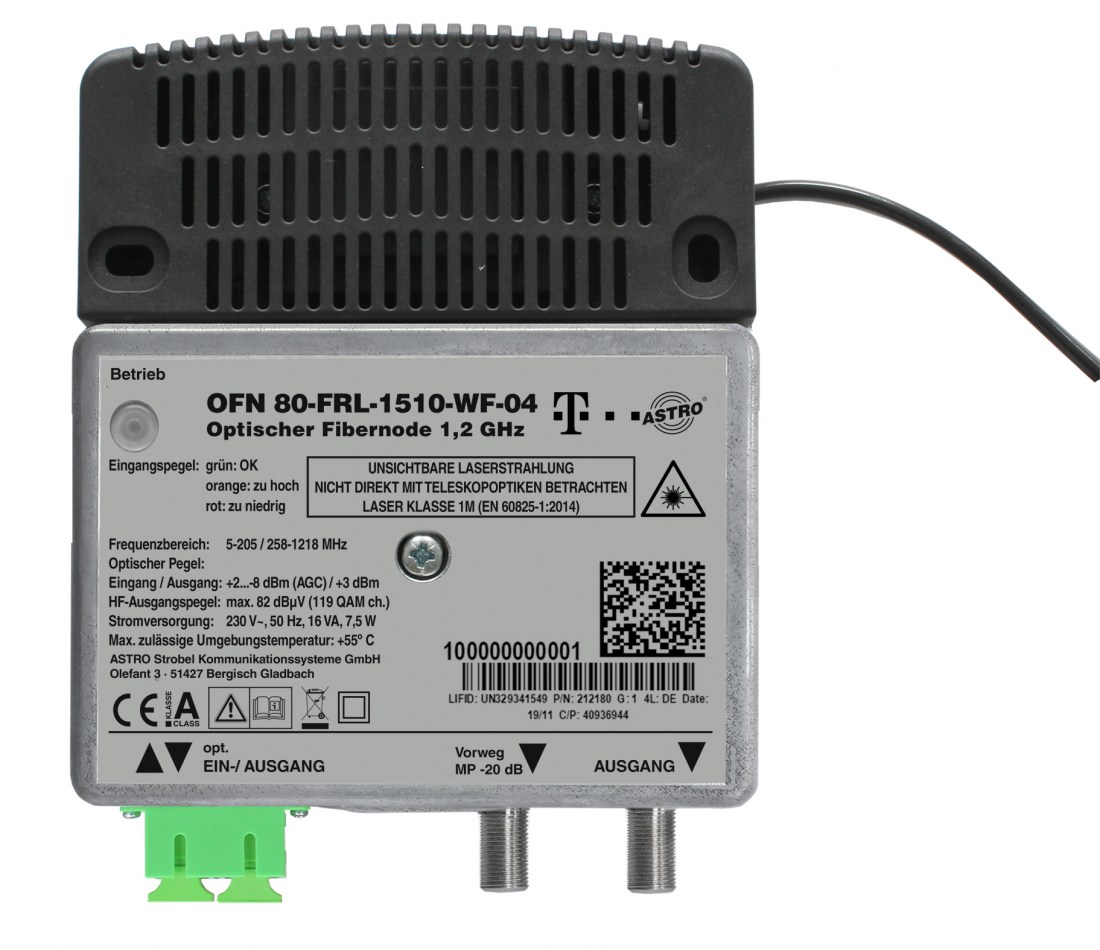

Compact optical CATV receiver
€ 145.00
1510 nm Upstream TX
OFN80-FRL-1510-WF-04
Specification
| Type | Mini Node |
|---|
| Order number | 00212242 |
|---|---|
| EAN-Code | 4026187210618 |
6 in stock
Product Details

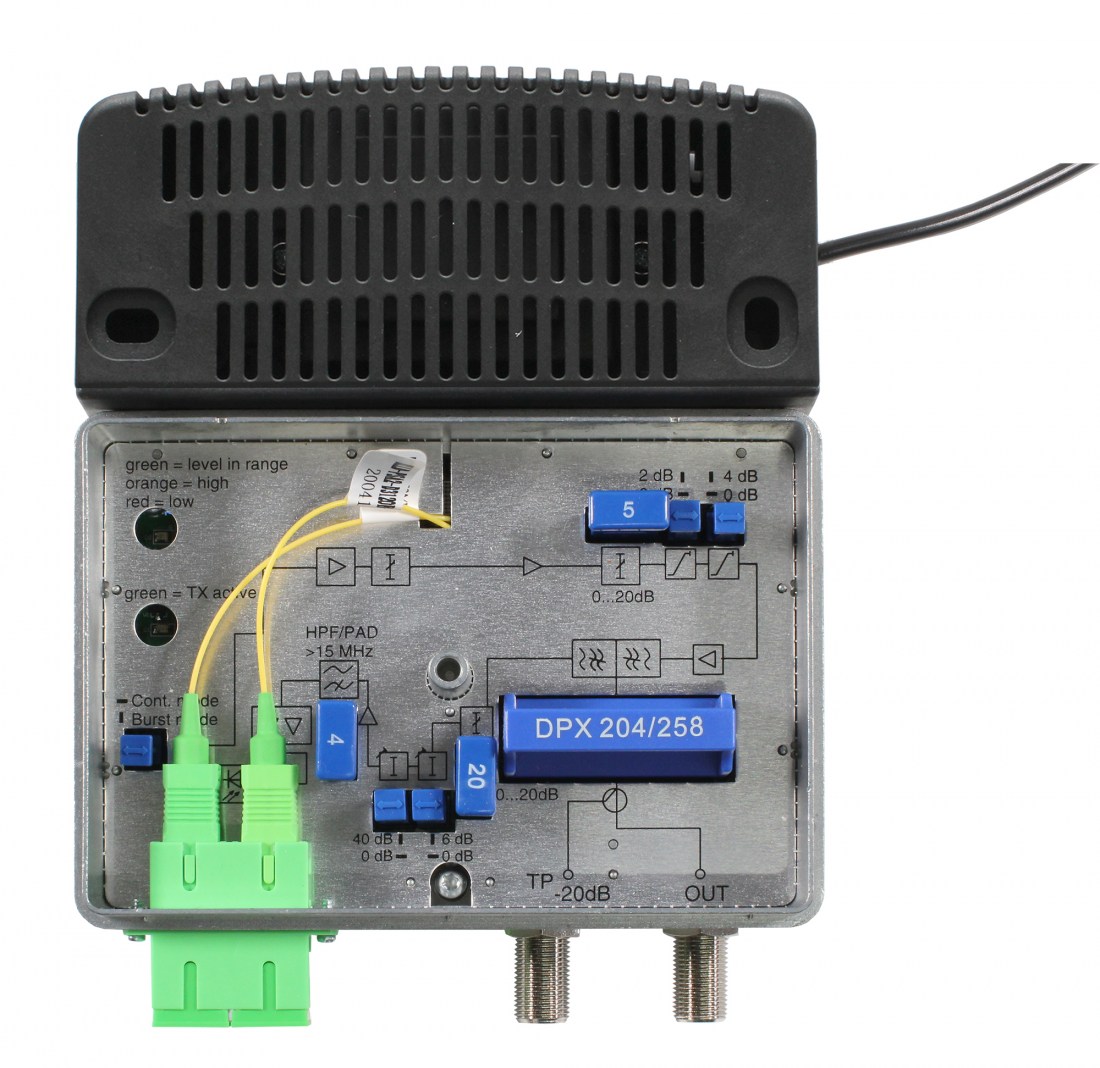

- Fibre node with separate forward and return fibre
- wavelength in forward path 1545 - 1565 nm
- 1510 nm Upstream TX
- Automatic Gain Control (AGC)
- attenuation with PAD in forward path
- slope adjustment selectable with jumper 0db / 2dB / 4dB / 6dB
- return path with continuous or burst mode
- attenuation in return path with PADs
- ingress noise test/filter with jumpers (0dB / 6dB /40dB)
- pluggable diplexer: 65/85 or 204/258
- forward path frequency: 1218 MHz
- Return path 5-205 MHz
- separate forward and return path fibre
- built-in power supply 230 VA

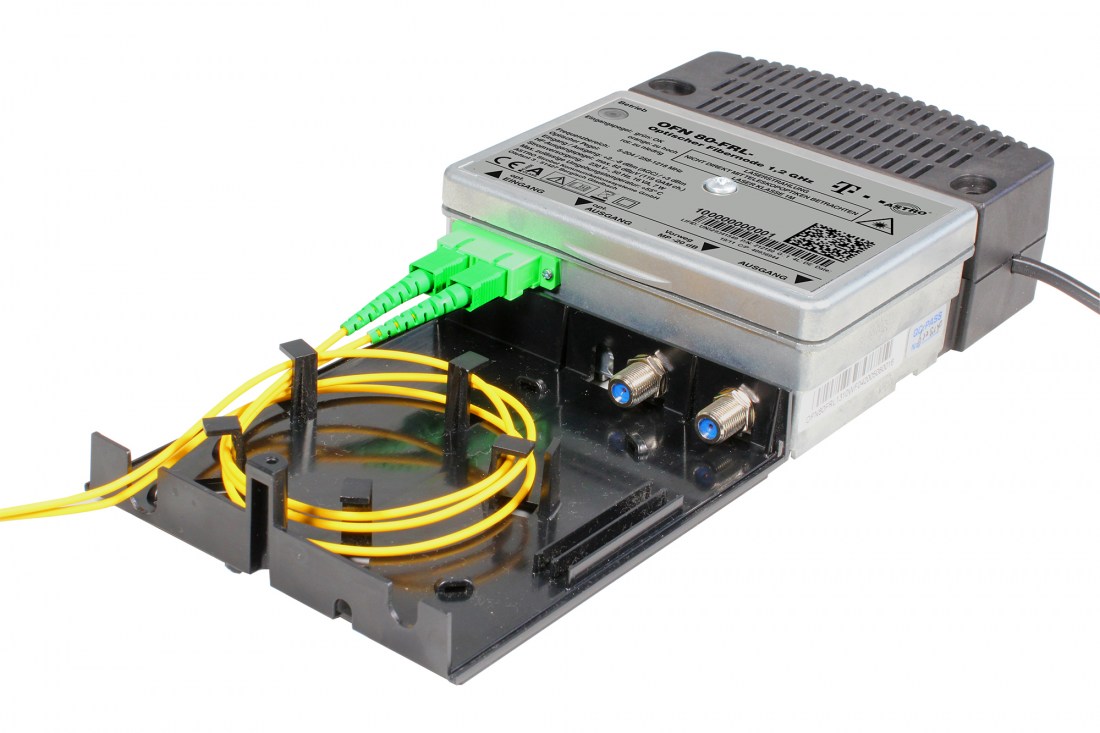

- optional fibre tray available
Download Details
-
Anleitung OFN80 Serie DE pdf · 2mb
-
Anleitung OFN80 Serie EN pdf · 2mb
-
Datenblatt OFN80 Serie_DE pdf · 2mb
-
Datenblatt OFN80 Serie_EN pdf · 2mb
-

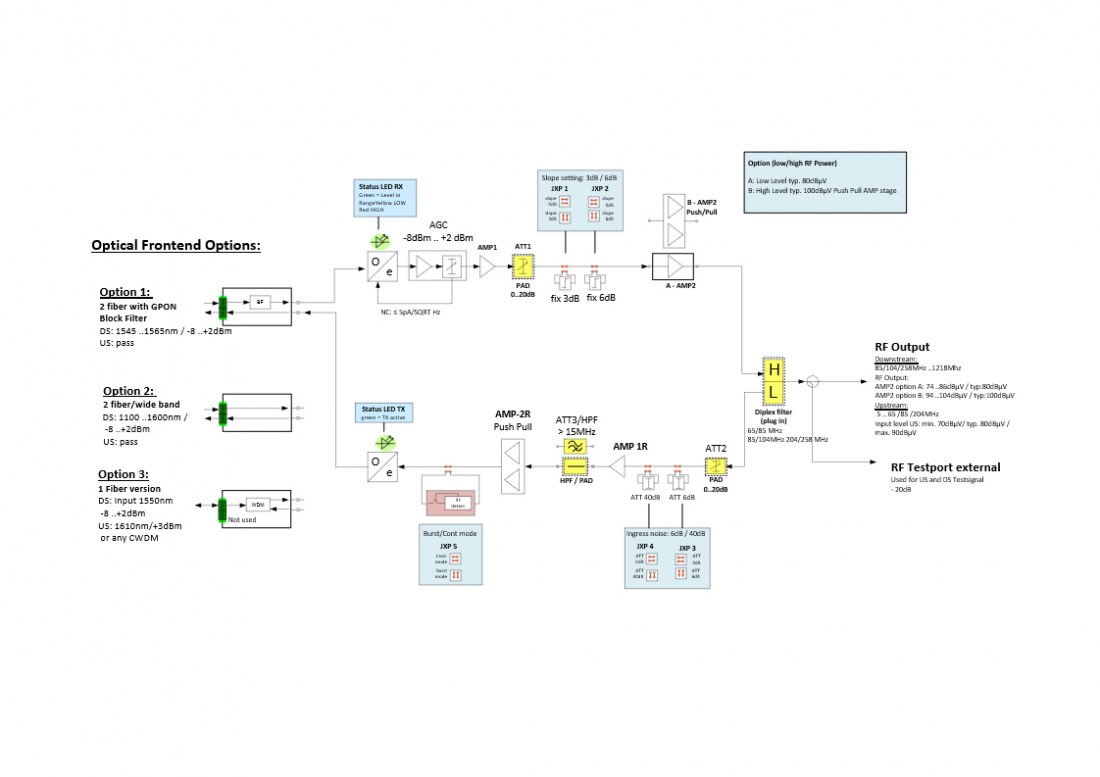

Blockschaltbild OFN80 pdf · 2mb
