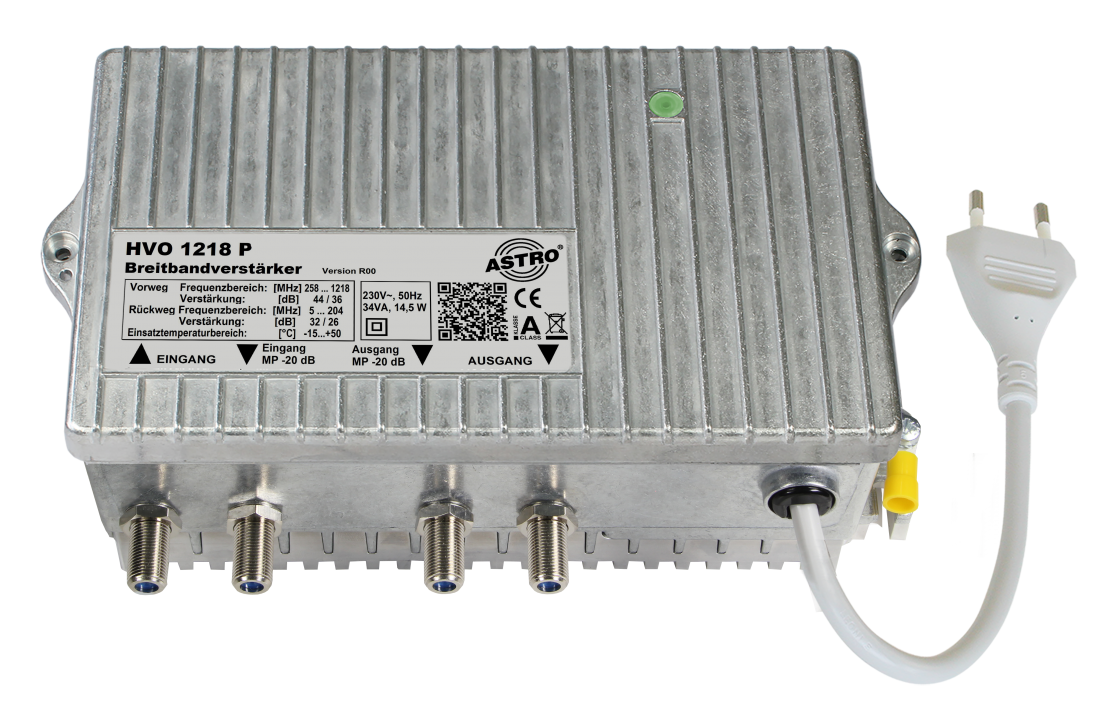

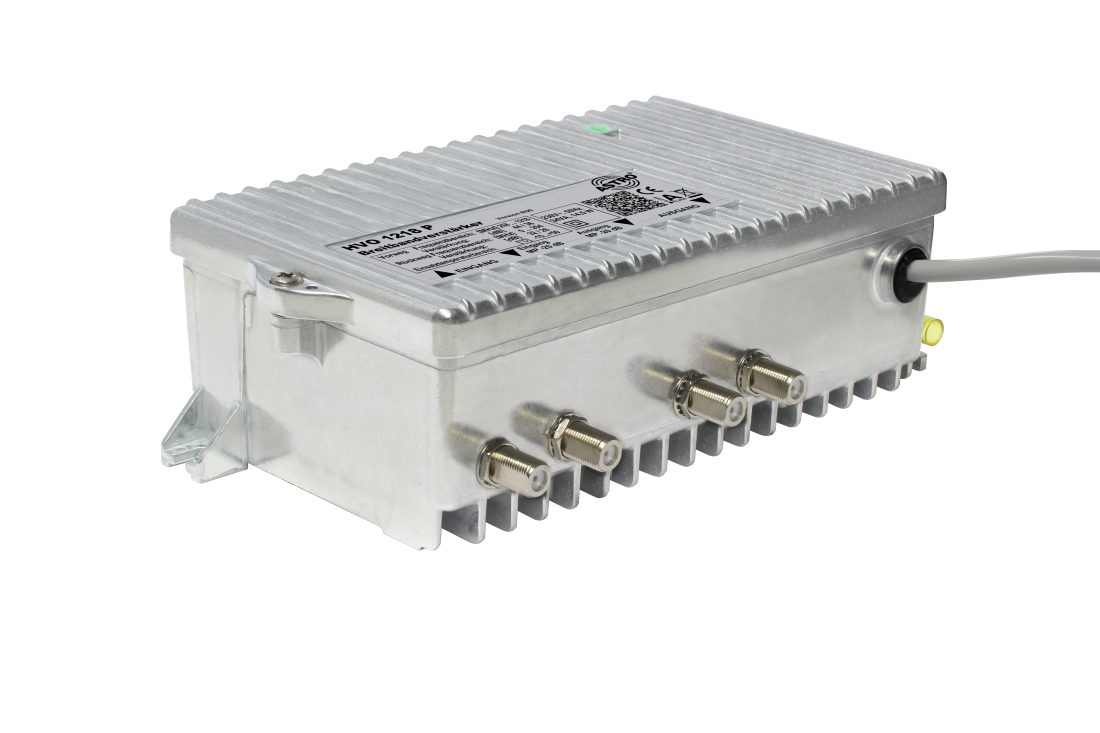

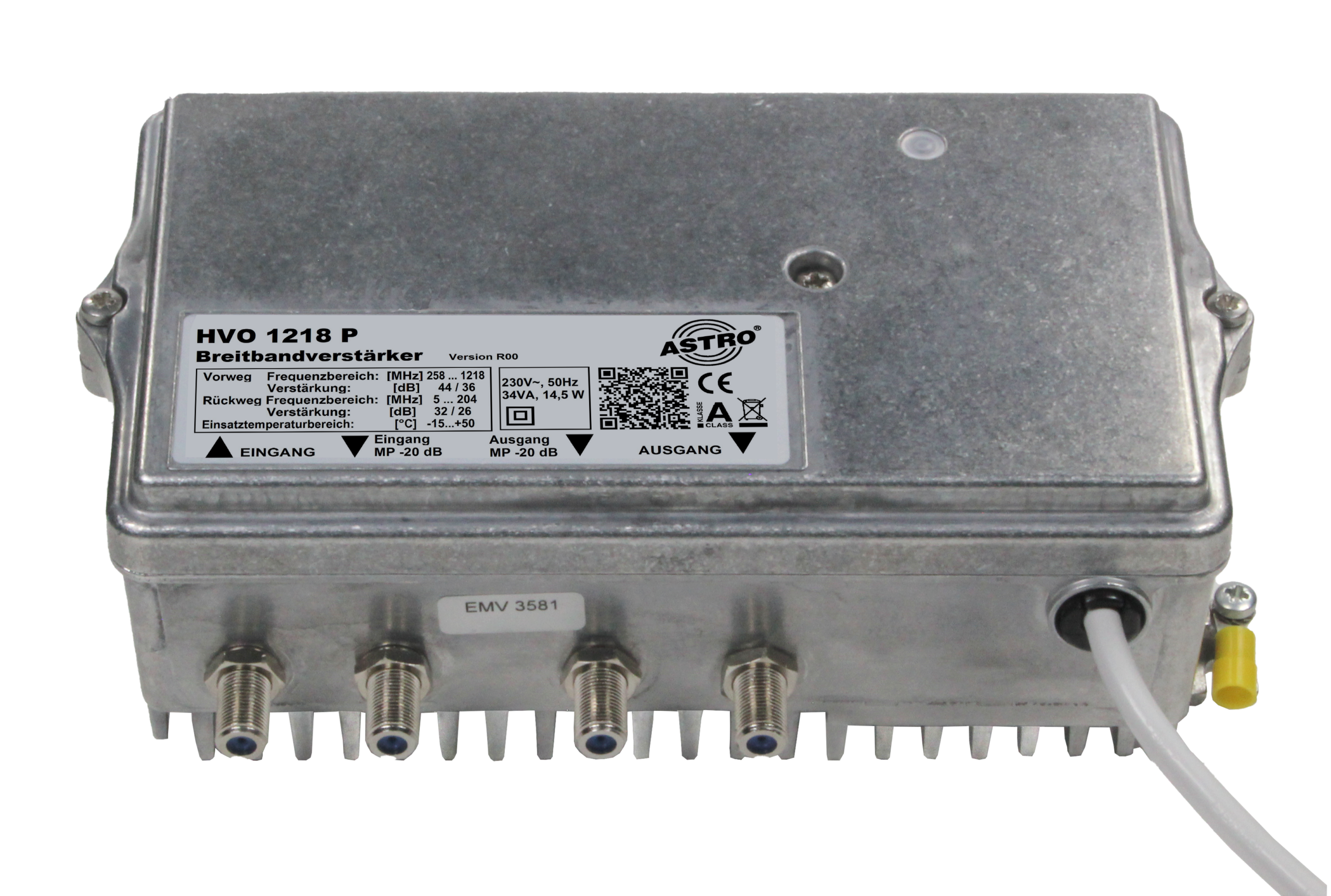

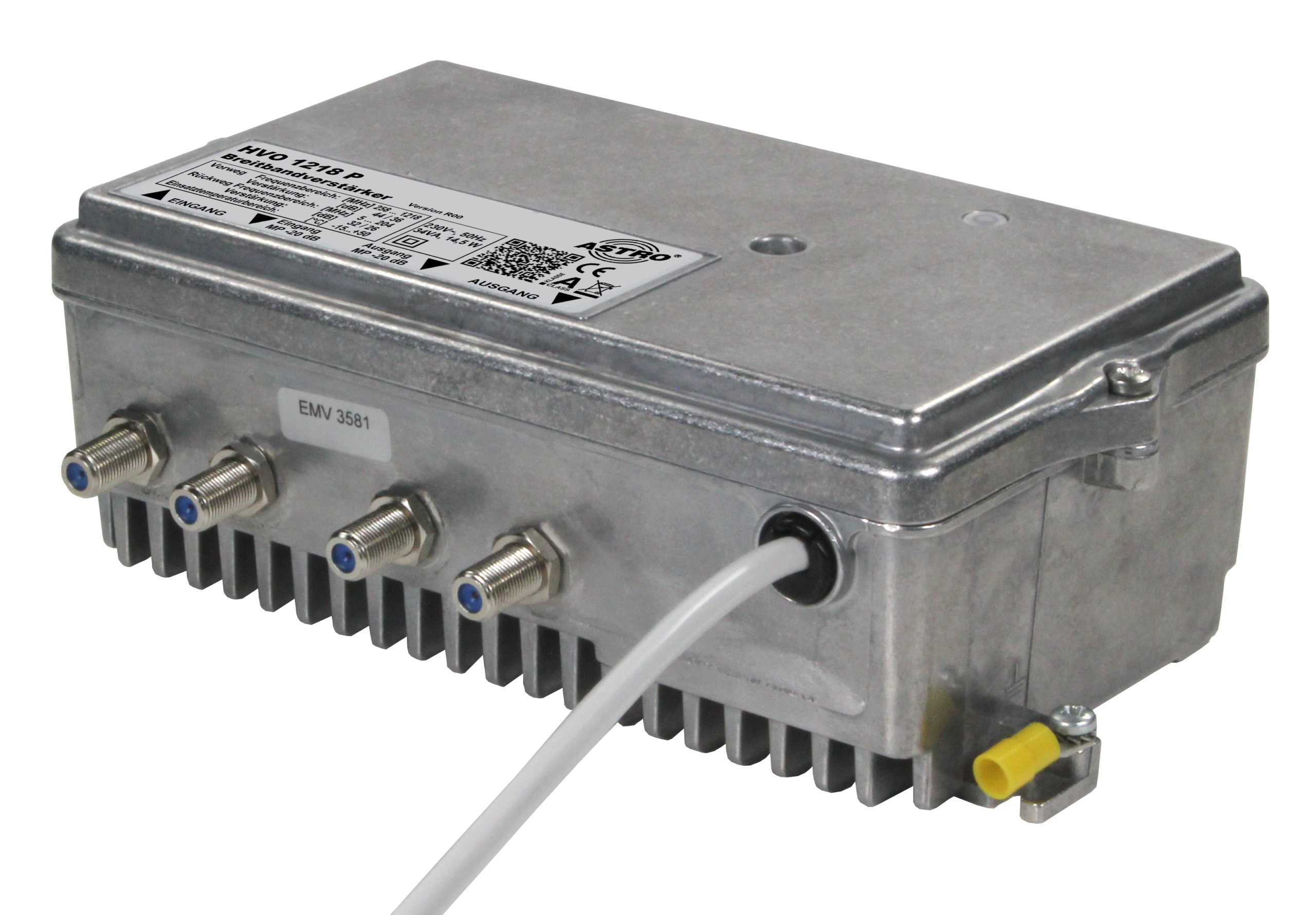

Broadband amplifier
€ 149.95
with active 204 MHz return path
HVO 1218 P
Specification
| Device type | Compact |
|---|---|
| Power supply | Local |
| Frequency range | up to 1218 MHz |
| Forward path gain | >39 dB |
| Order number | 00217130 |
|---|---|
| EAN-Code | 4026187240943 |
22 in stock
Product Details
- Broadband amplifier with active 204 MHz return path
- Forward path up to 1218 MHz
- High output level at high C/N due to new interstage equaliser technology and sophisticated push-pull technique
- Diplex filter and return path amplifier on-board
- 44 / 36 dB gain in advance (switchable with the slide switch)
- 32 / 26 dB dB gain in return path (pluggable with the jumper)
- Measuring points in input and output
- Output level forward pathup to 107 dBµV
- Output level return path up to 108 dBµV for 24 ch.256 QAM
Download Details
-
Anleitung HVO 1218 P DE pdf · 2mb
-
Blockschaltbild HVO 1218 P.pdf pdf · 2mb
-
Datenblatt HVO 1218 P pdf · 2mb
Product is combinable with
67,00 € plus VAT

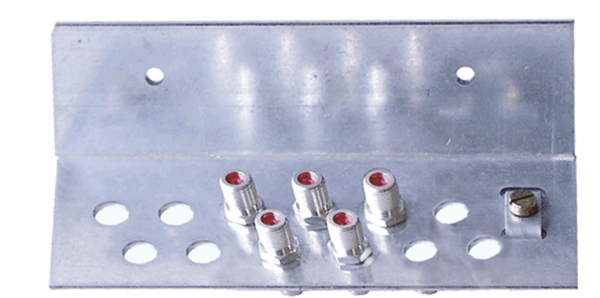

Grounding bracket
