Broadband amplifier
with active 65 MHz return path
Specification
| Device type | Compact |
|---|---|
| Power supply | Remote |
| Frequency range | up to 1006 MHz |
| Forward path gain | >39 dB |
| Approval by network operator | Vodafone GmbH |
| Order number | 00217405 |
|---|---|
| EAN-Code | 4026187191368 |

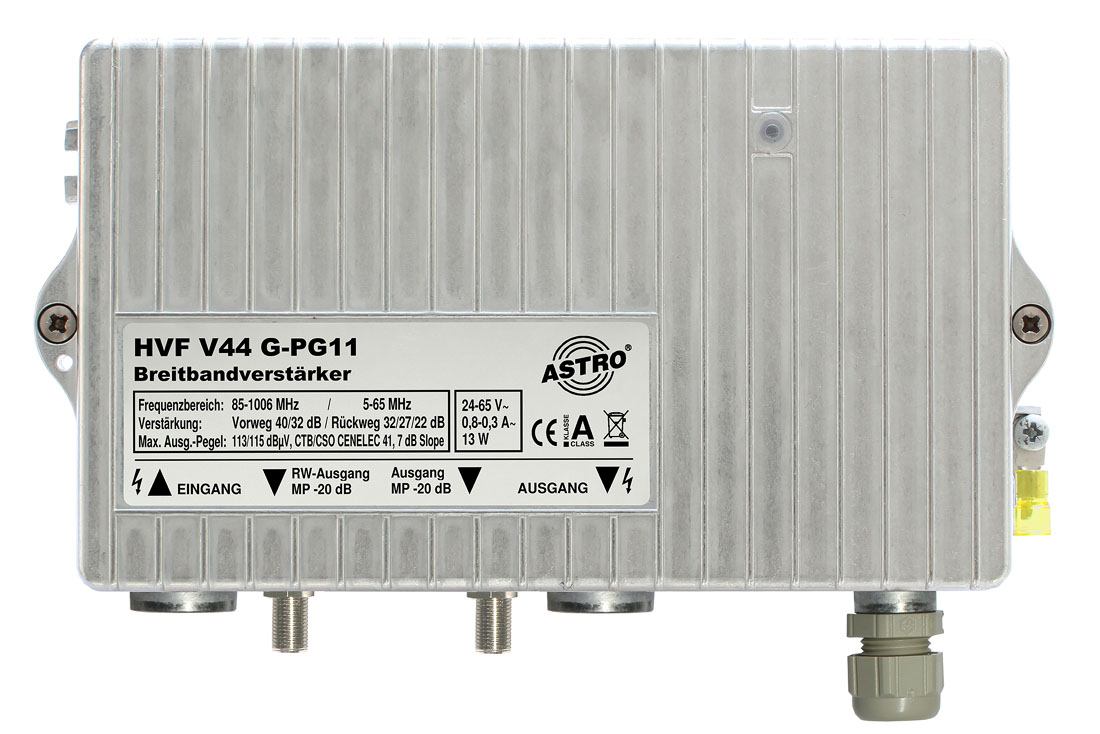

HVF V44 G PG11
No longer available
Product Details
- Broadband amplifier with active 65 MHz return path
- Inputs and outputs with PG11 thread
- high output level at high C/N by push-pull
- Diplex filter and return path amplifier on-board
- 40 / 32 dB gain in advance (pluggable via jumper)
- 32 / 27 / 22 dB gain in return path (pluggable via jumper)
- Interstage damping in forward and return path
- switched signal paths are indicated via LED
- Configuration via jumpers and potentiometers
- Measuring points in input and output (F sockets)
- Advance to 1006 MHz
- Output level Pre-way 111 dBµV
- Output level return path 116 dBµV @ 7 x QAM 64 / 6.4 MHz
- Vodafone GmbH certified, type class D(4.4)
Download Details
-
Manual HVF V44 G DE pdf · 2mb
-
Block diagram HVF V44 G pdf · 2mb
-
Data sheet HVF V44 G DE pdf · 2mb
