Universal broadband amplifier
€ 93.95

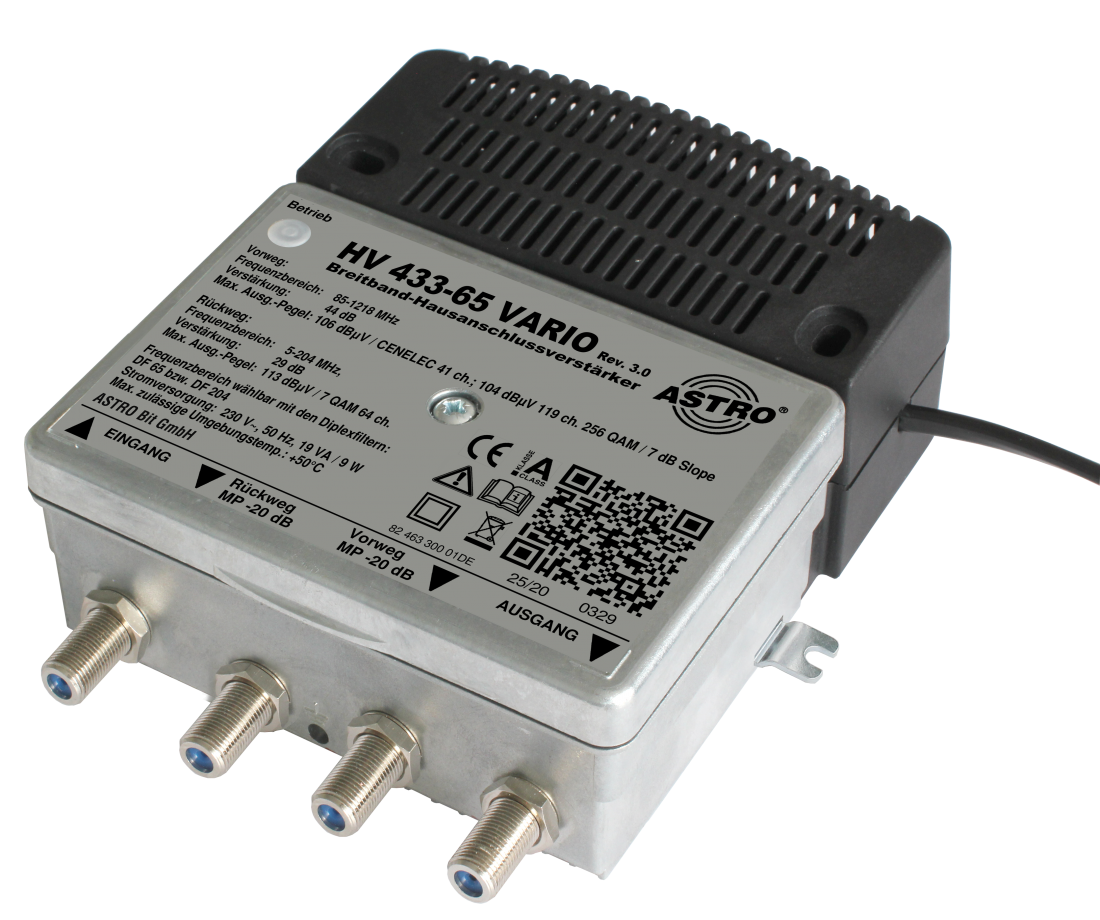

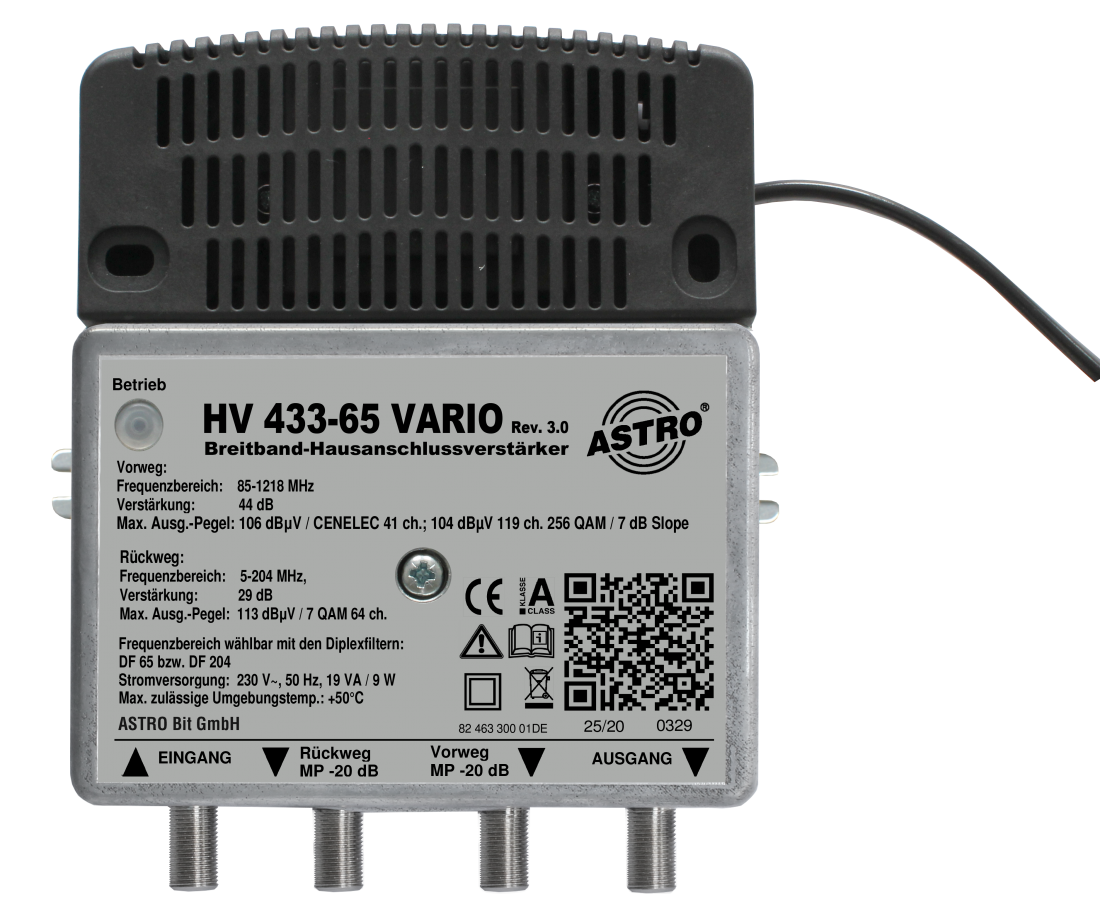

HV 433-65 Vario
Specification
| Device type | Modular |
|---|---|
| Power supply | Local |
| Frequency range | up to 1218 MHz |
| Forward path gain | >39 dB |
| Order number | 00217465 |
|---|---|
| EAN-Code | 4026187210144 |
1 in stock
Product Details
Please note: The DF 65, DF 85 and DF 204 diplex filters are no longer available. Alternatively, the HV 433-65 Vario, HV 433-85 Vario, HV 433-65 Vario and HV 433-85 Vario amplifiers can be used in conjunction with the DF 12xxx diplex filters
- Broadband amplifier with active variable return path 5-65 MHz or 5-204 MHz
- high modulation of the return path for operational reliability even with multi-channel load
- Input attenuation adjustable via pad
- Equalizer in input adjustable via pad
- Interstage Slope pluggable in advance 0 / 7 dB
- Interstage attenuation pluggable in advance 0 / 6 dB
- Damping in return path adjustable via pad
- Forward path gain 44 dB
- Output level forward path 106 dBµV CENELEC 41, 108 dBµV with 7 dB Interstage Slope
- Return path gain 29 dB
- Output level return path 113 dBµV with 7 QAM 64 carriers / 6 MHz bandwidth
- Attenuation pads Pre-attenuation 0 - 15 dB
- Equalizer pads Pre-path 0 - 15 dB
- Attenuation pads return path 0 - 15 dB
- 20 dB Measuring points in input and output
