Universal broadband amplifier
with active 65 MHz return path
Specification
| Device type | Compact |
|---|---|
| Power supply | Local |
| Frequency range | up to 1218 MHz |
| Approval by network operator | Vodafone GmbH |
| Forward path gain | >39 dB |
| Order number | 00217104 |
|---|---|
| EAN-Code | 4026187270780 |

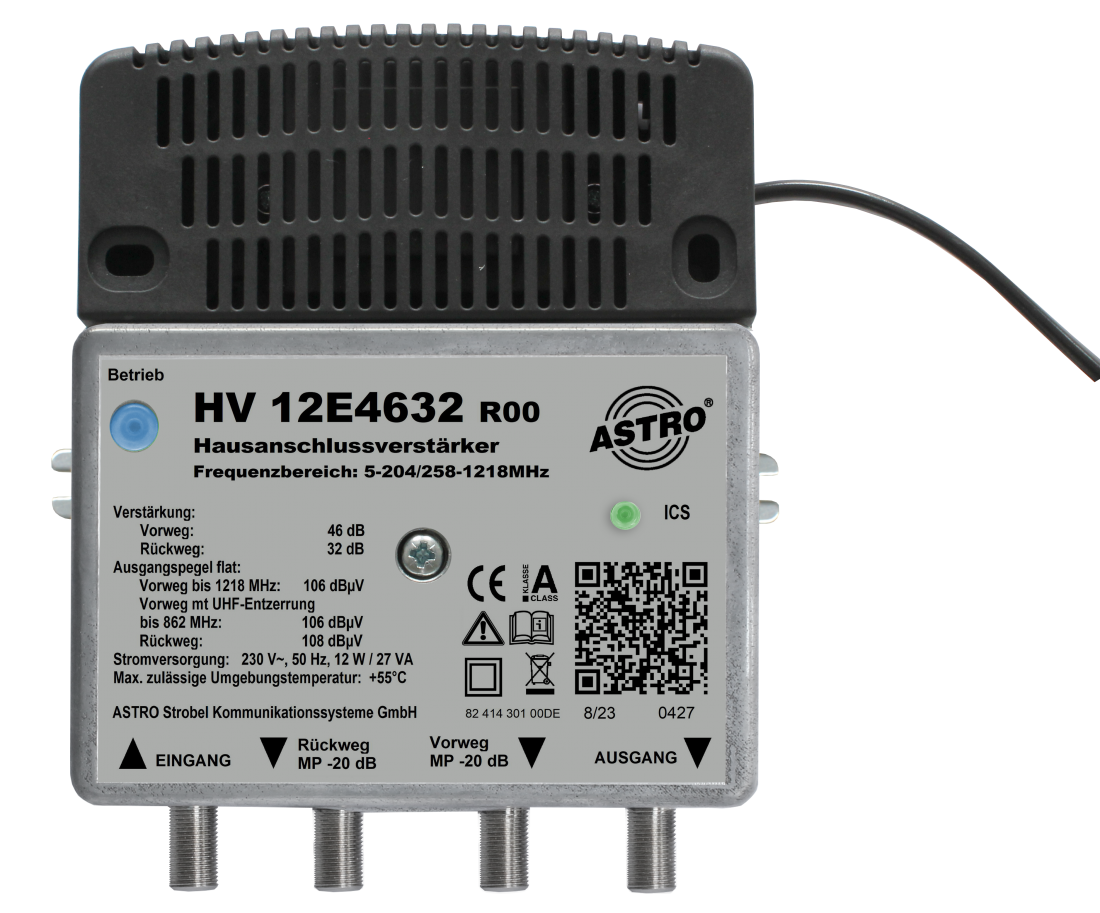

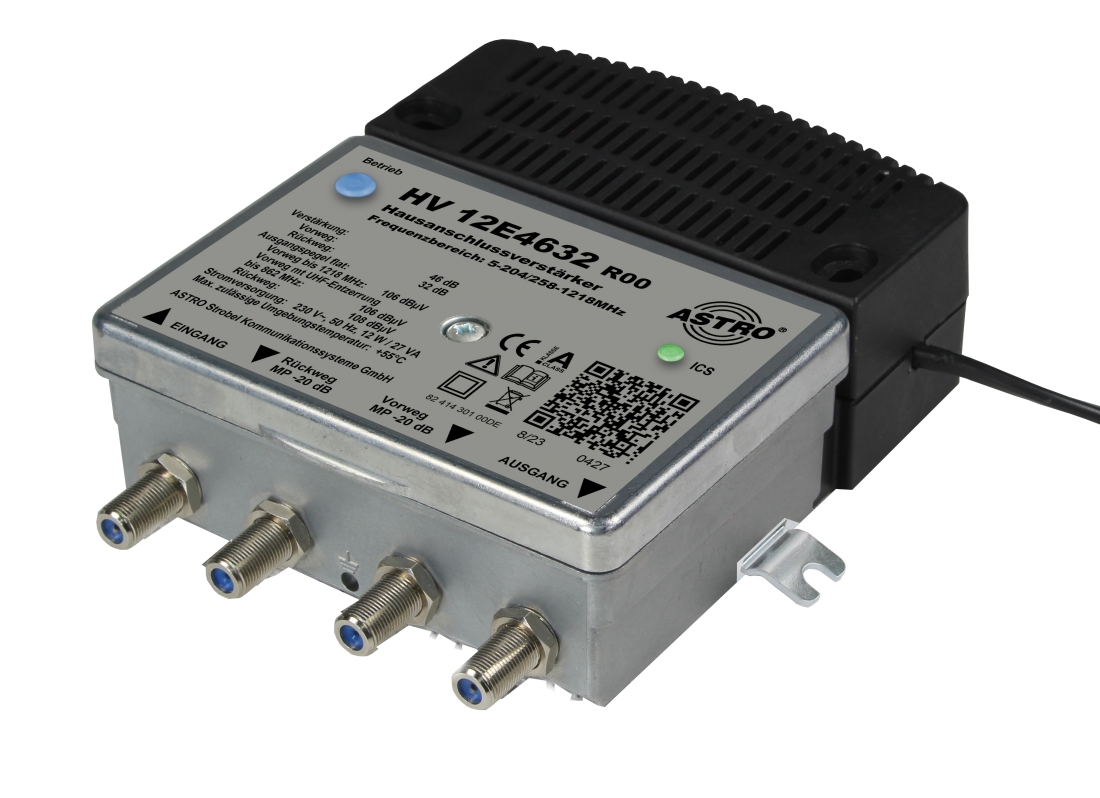

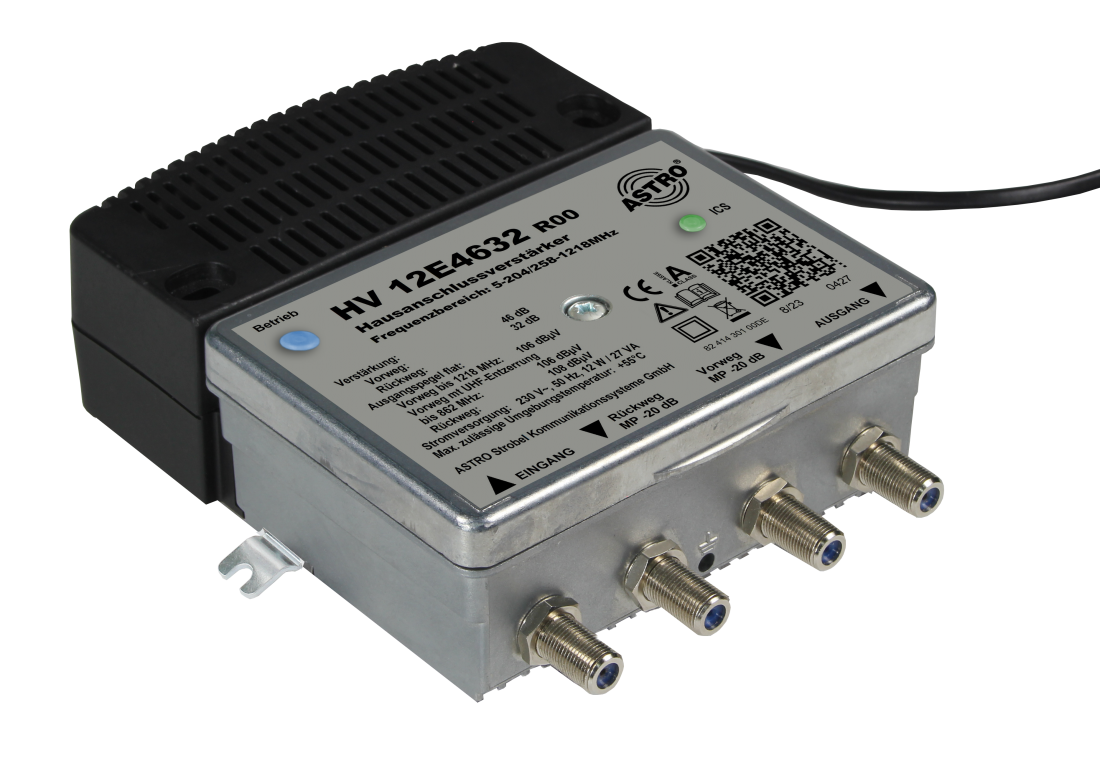

HV 12E4632
On request
Product Details

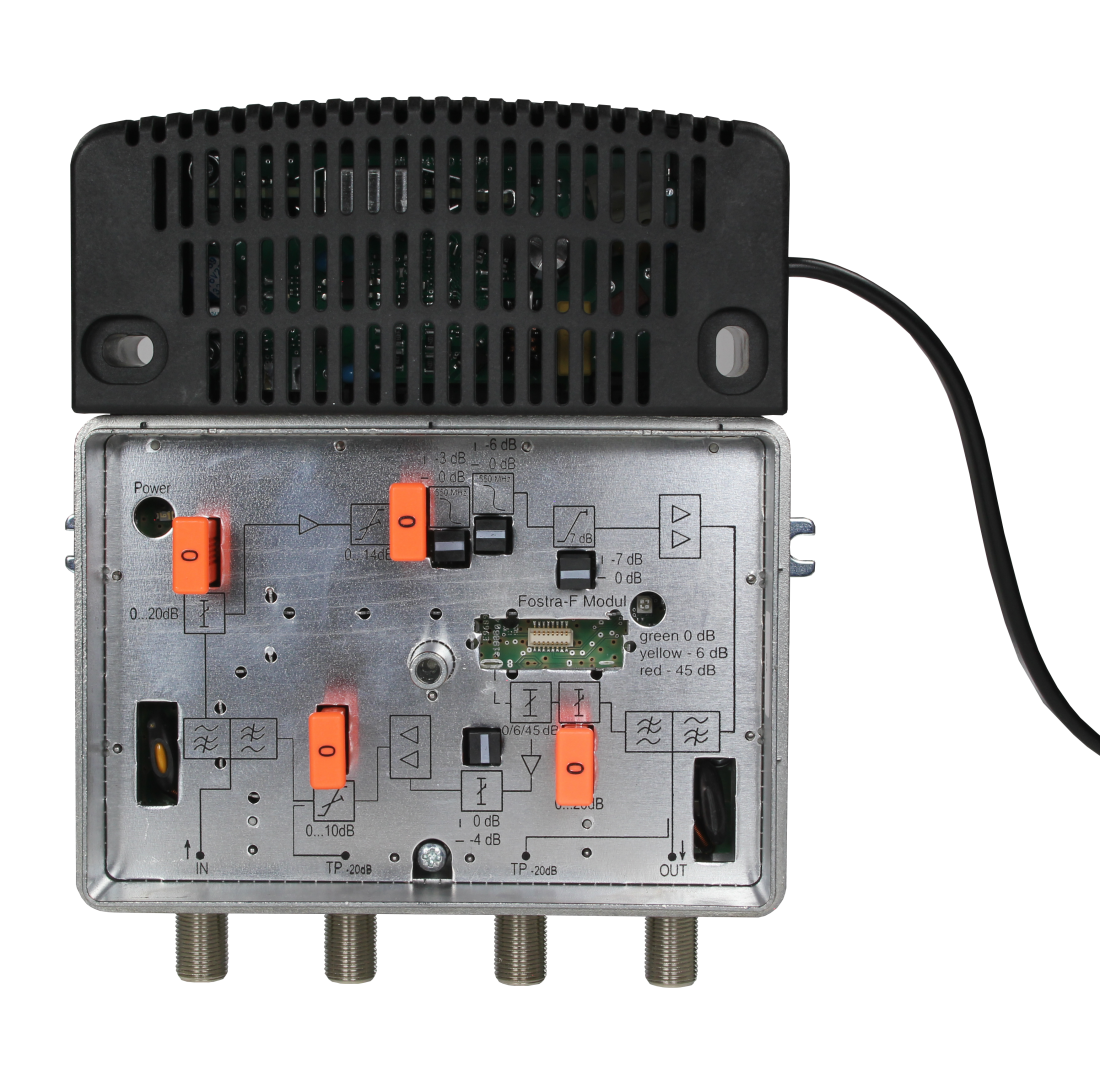

- Forward gain 46 dB
- Input attenuation adjustable via pad (0-20 dB)
- Interstage equaliser in forward path adjustable via pad (0-15 dB)
- Interstage slope in forward path pluggable (0 or 7 dB)
- Preamp output level 106 dBµV
- Feedback gain 32 dB
- Feedback attenuation adjustable via pad (0-20 dB)
- Interstage attenuation in feedback (0 or 6 dB pluggable)
- Feedback output level 108 dBµV
- 20 dB measuring point in output
Download Details
-
Anleitung HV 12E4632 DE pdf · 2mb
