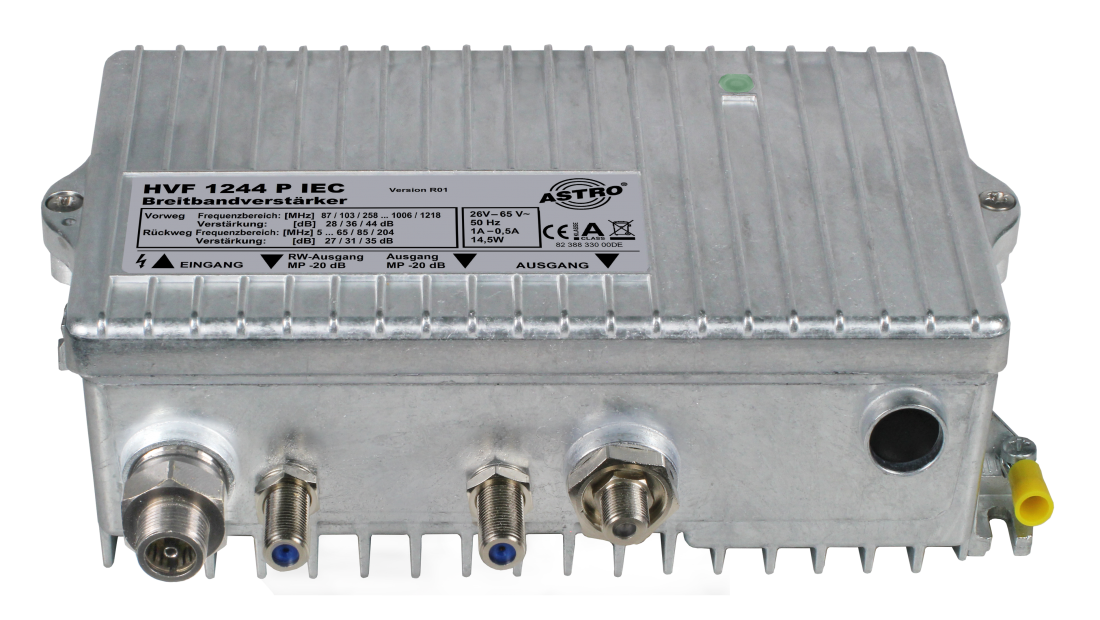

Modular remote feedable DOCSIS 3.1 amplifier
€ 199.95
for DOCSIS 3.1 applications
Specification
| Device type | Compact |
|---|---|
| Power supply | Remote |
| Frequency range | up to 1218 MHz |
| Forward path gain | >39 dB |
| Order number | 00217449 |
|---|---|
| EAN-Code | 4026187241087 |
HVF 1244 P IEC
Out of stock
Product Details
- Modular broadband amplifier, remote fed
- for DOCSIS 3.1 applications
- Frequency range forward path 87 / 103 / 258 - 1218 MHz
- Frequenzy range return path 5 - 65 / 85 / 204 MHz
- configurable via pluggable diplex filters (not within the scope of delivery)
- Gain forward path 44 / 36 / 28 dB
- Gain return path up to 35 dB
- Output level return path up to 114 dB
- extensible adjustment and configuration via pads and jumpers
- Testpoints 20 dB in in- and output
- Input IEC-Buchse, Output F-jack
Download Details
-
Betriebsanleitung HVF 1244 P DE pdf · 2mb
-
Blockschaltbild HVF 1244 P pdf · 2mb
-
Datenblatt HVF 1244 P DE pdf · 2mb
