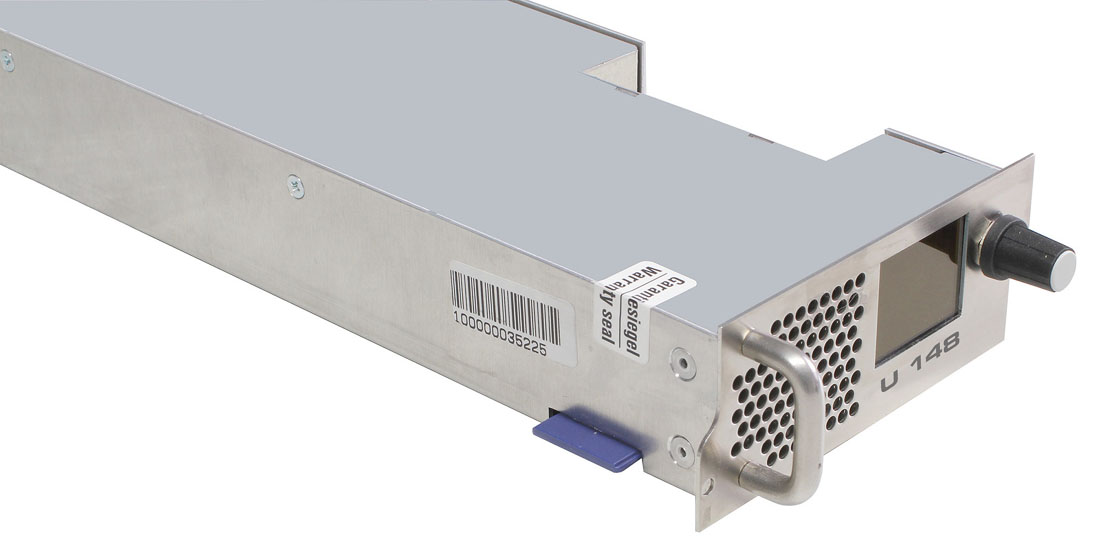

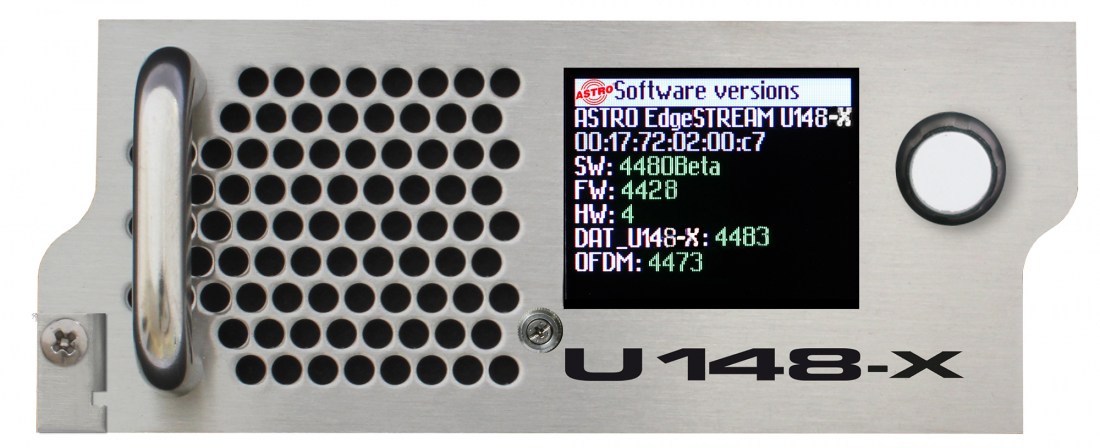

DVB-S2 to IP streamer
DVB-S2 to IP streamer - Image 2
DVB-S2 to IP streamer - Image 3

DVB-S2 to IP streamer

€ 2'850.00

8 DVB-S2 signals into IP multicast groups

U 148-X

Specification

Module type

DVB-S in IP streamer
Order number

00380139

EAN-Code

4026187194482

Out of stock

Product Details
  • new: with embedded BISS descrambling (license key required)
  • plug-in modules for U 100 base unit
  • 4 physical signal input jacks for processing of 8 DVB-S2 signals into IP multicast groups; 8 MPTS, 504 SPTS (activation via SPTS license)
  • 2 x 4 in 4 multiplexer to configure individual IP data streams (activation via multiplexer license)
  • additional features can be activated via licenses (SSL, RADIUS & BISS decryption, as well as blind scan and carrier monitoring)
  • support for Multistream-Transponders
  • up to 24 streams per rack unit
  • tuners with DiSEqC and JESS control
  • monitored fan
Download Details

Product is combinable with

BISS descrambling for streamer modules of the U 100 series (except U 149-X)
U Streamer BISS License
License for unlocking the BISS function of U 100 streamer modules
369,00 € plus VAT

Base unit
U 100-230
230 V version, for mounting up to 3 plugin modules of the U 100 series
559,00 € plus VAT

Base unit
U 100-48
48 V version, for mounting up to 3 plugin modules of the U 100 series
559,00 € plus VAT

Blind Scan for streamer U 144-X and U 148-X
U Blind Scan License
License for unlocking the Blind Scan function of U 144-X and U 148-X streamer modules
369,00 € plus VAT

Monitoring license for streamers U 144-X and U 148-X
U Carrier Monitoring License
License for unlocking the monitoring function of the U 144-X and U 148-X
369,00 € plus VAT

Management controller
U 100-C
for U 1xx devices
2.295,00 € plus VAT
