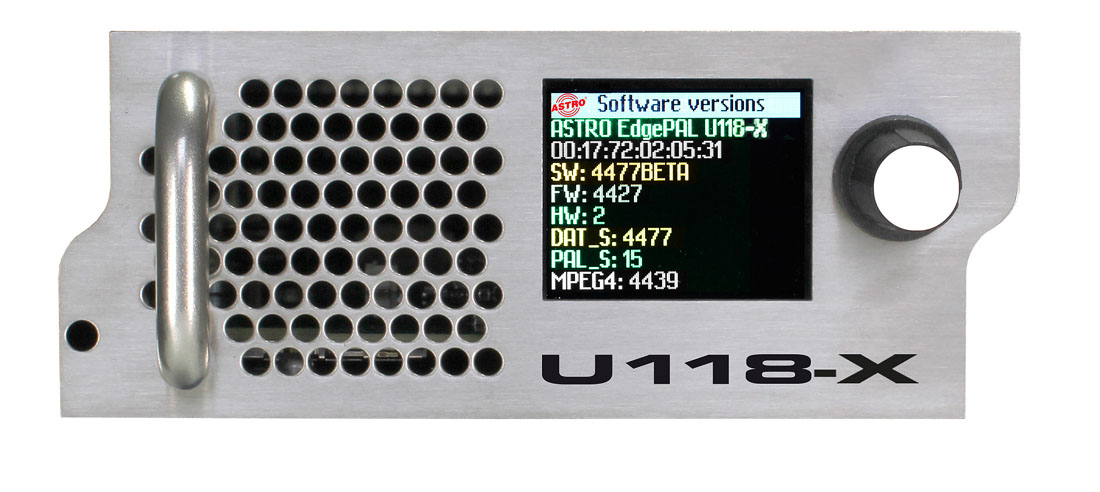

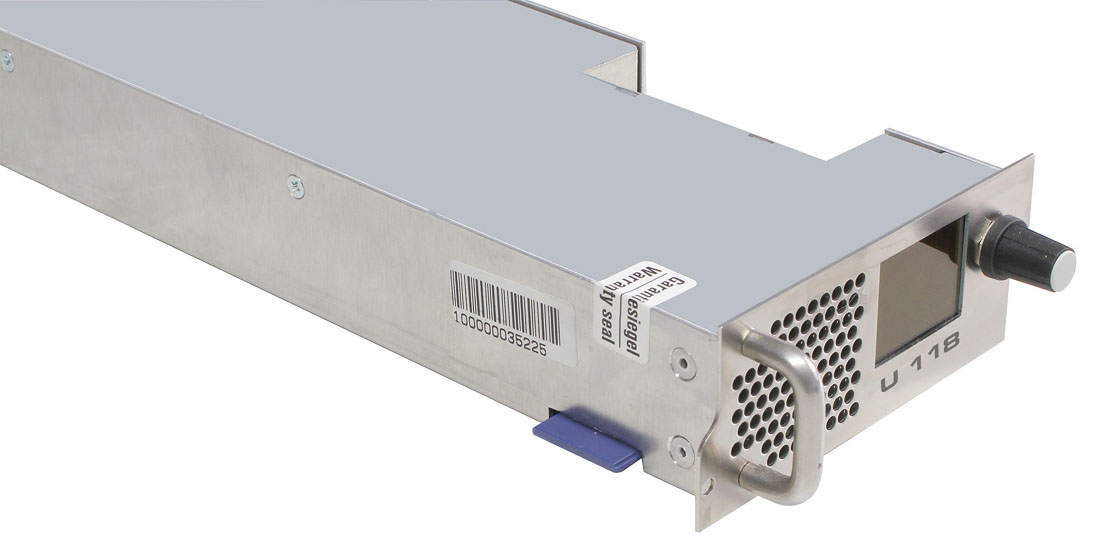

Signal converter IP to PAL / NTSC
€ 3'795.00
up to 8 IP multicast groups of a Gigabit Ethernet MPEG TS in 8 standard PAL programmes
Specification
| Module type | IP in PAL converter |
|---|
| Order number | 00380127 |
|---|---|
| EAN-Code | 4026187192815 |
U 118-X
1 in stock
Product Details
- plug-in module for U 100 base unit
- for processing of up to 8 IP multicast groups of a Gigabit Ethernet MPEG TS in 8 standard PAL programmes
- PAL programmes are led through as two pairs of adjacent channels
- outstanding signal parameters by Direct Digital technology (Video-S/N: typ. 66 dB; residual carrier accuracy: 1 %)
- WSS, Teletext, VPS, programmable ticker
- RTP, FEC, IGMPv3, full MPEG4 support
- HD to SD downscaling, AAC sound

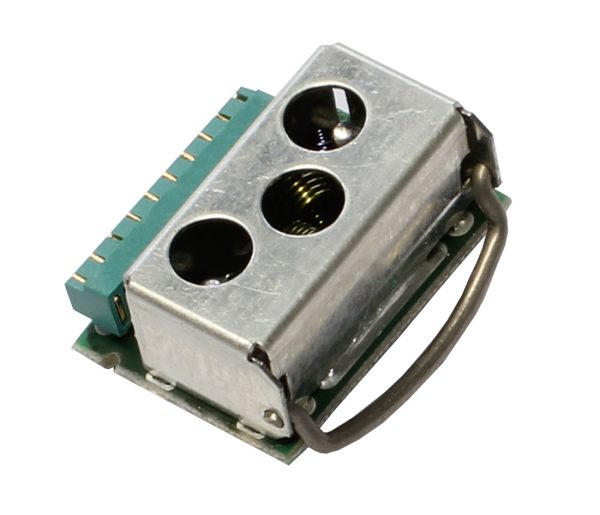

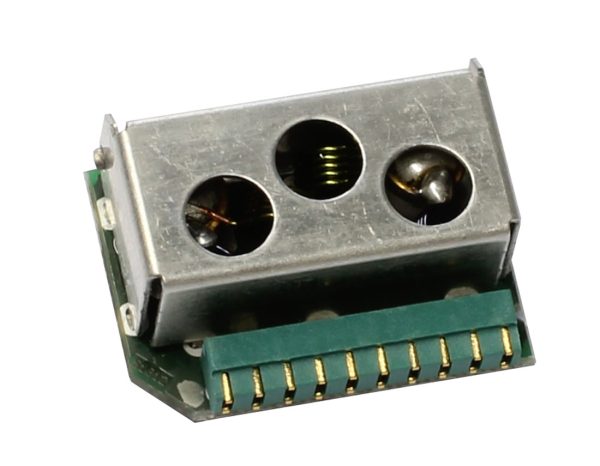

- optionally available output channel filters (U-KF) allow for maintaining the high sigal quality even after combining
- user friendly configuration via web browser
- monitored fan
Product is combinable with

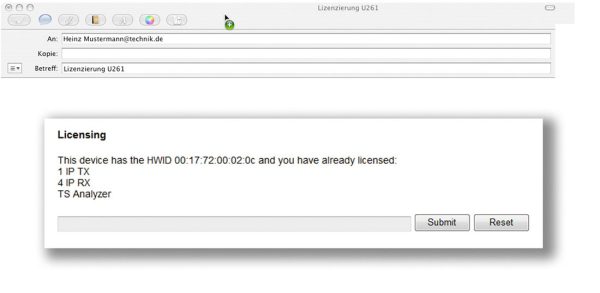

License for transport stream analyzer
TS Analyzer License
License key for activating the transport stream analyzer in the U 261 / U 262
950,00 € plus VAT
23,50 € plus VAT
23,50 € plus VAT
23,50 € plus VAT
23,50 € plus VAT
2.295,00 € plus VAT
Similar Products
3.195,00 € plus VAT
2.950,00 € plus VAT
Signal converter IP to FM
U 125
up to 16 IP multi- cast groups of a Gigabit Ethernet MPEG TS into 2 x 20 standard FM channels
3.495,00 € plus VAT
