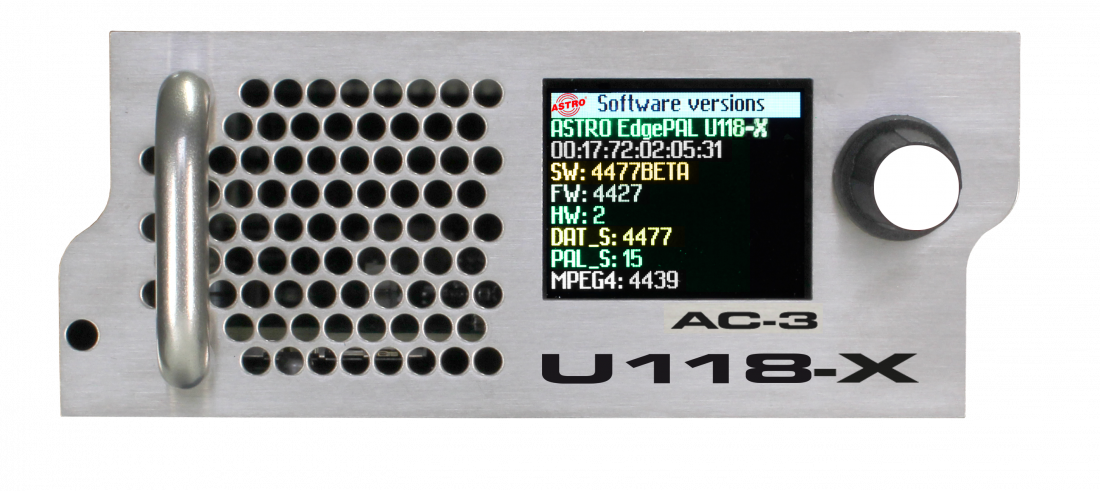

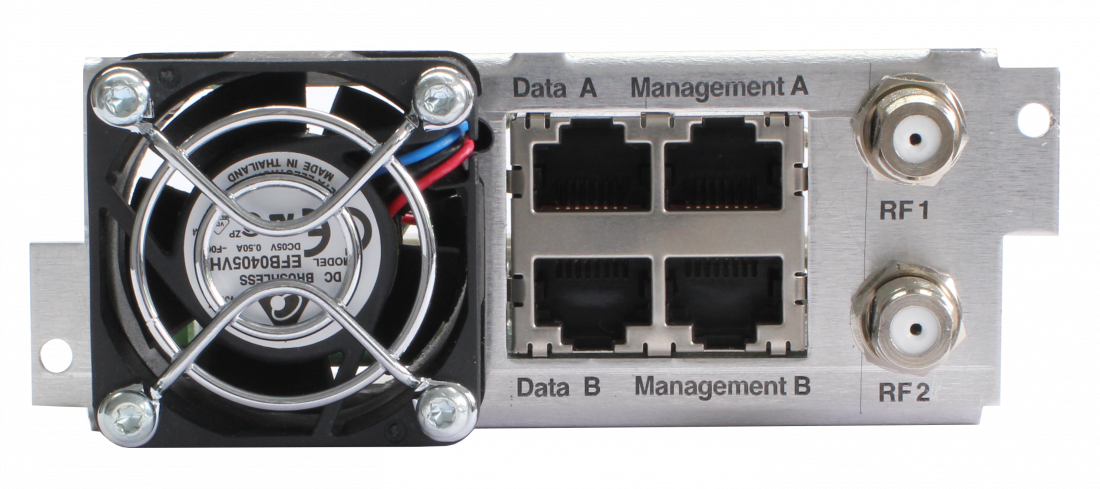

Signal converter IP to PAL
Signal converter IP to PAL - Image 2

Signal converter IP to PAL

€ 3'995.00

plug-in module for U 100 base unit

U 118-X (AC-3)

Specification

Module type

IP in PAL converter
Order number

00380128

EAN-Code

4026187193287

Out of stock

Product Details
  • plug-in module for U 100 base unit
  • for converting up to 8 IP Gigabit Ethernet multicast groups into 2 x 4 standard PAL channels
  • four PAL channels each can be played out in the 80 MHz range
  • WSS, Teletext, VPS, ticker insertion, RTP, FEC, IGMPv3, MPEG4 H.264/AVC Level 4.1, HD to SD downscaling
  • AC-3 sound processing
  • outstanding signal parameters through Direct Digital Technology
  • optionally available output channel filters (U-KF) allow for maintaining the high sigal quality even after combining
  • user friendly configuration via web browser
  • monitored fan
Download Details
