Single-cable Converter for 4 (8) satellites

Login to see prices

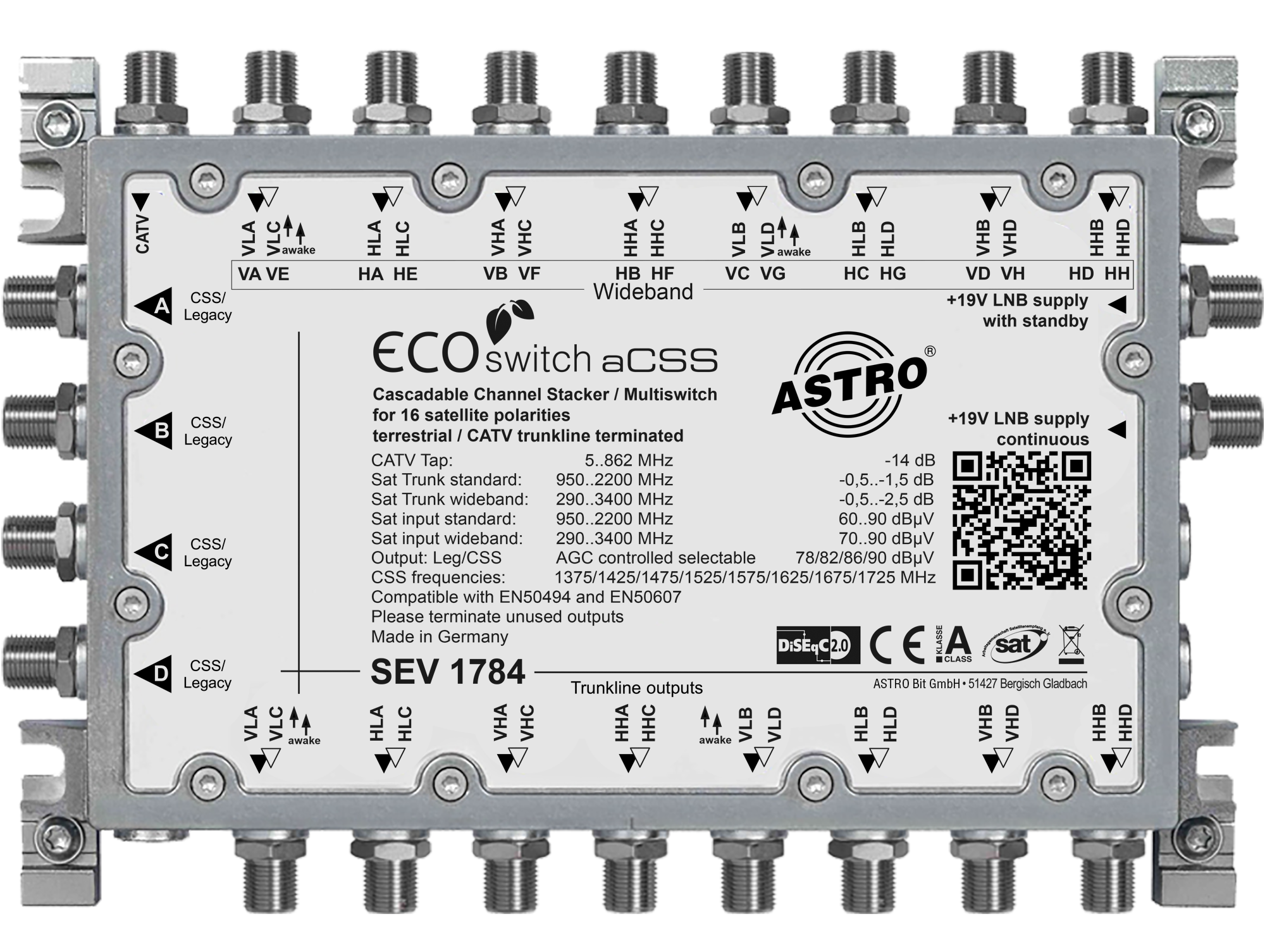

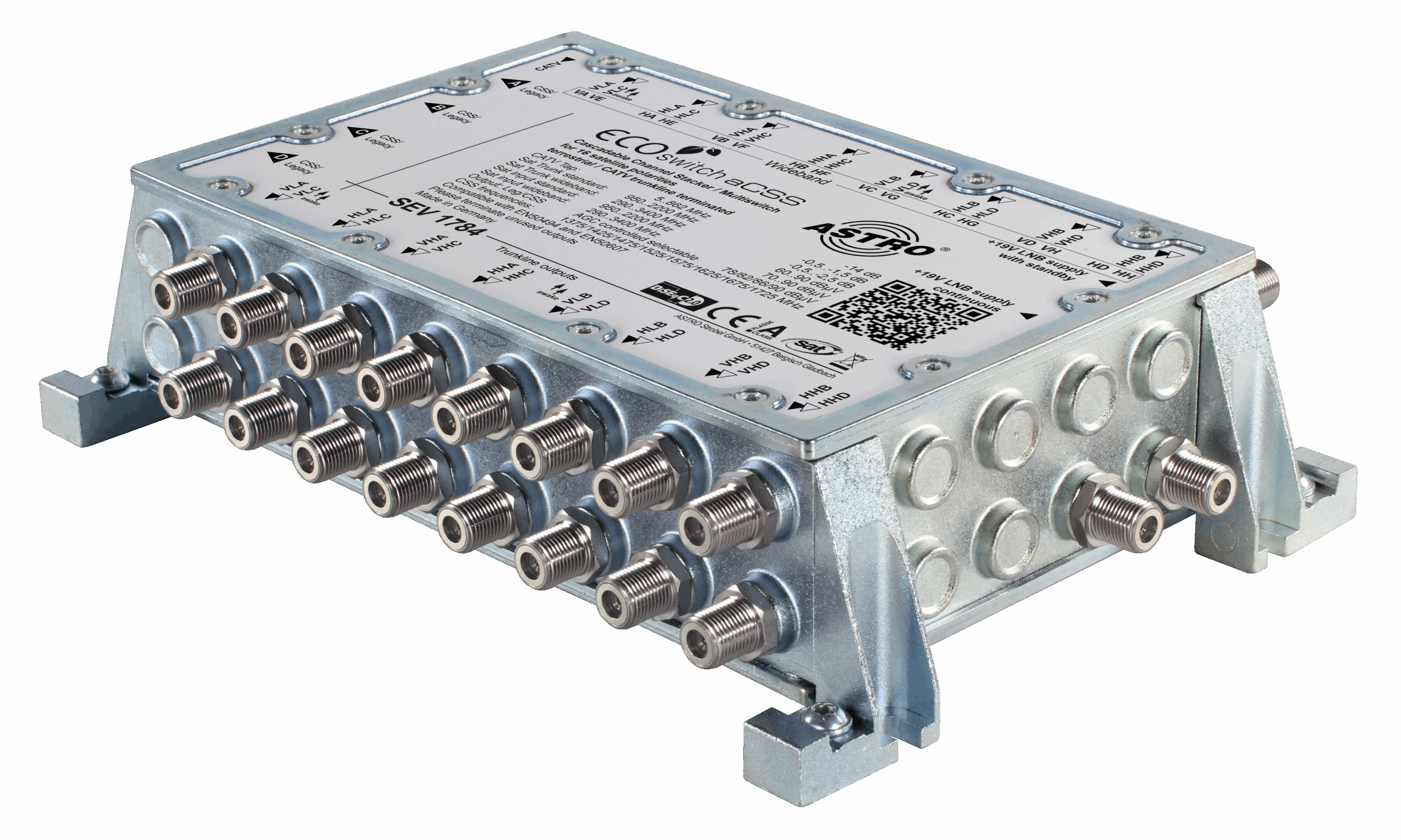

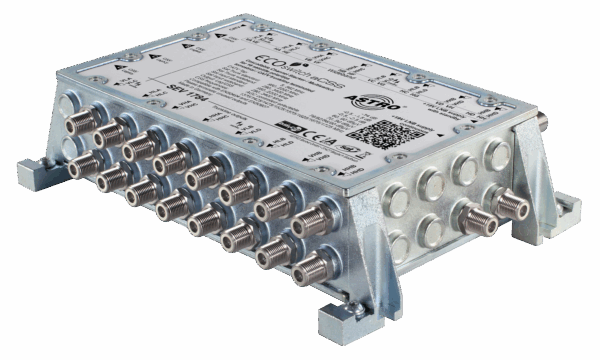

Single-cable Converter for 4 (8) satellites, 4 outputs (each Legacy or each 8 userbands), 16 SAT loop-through outputs

SEV 1784

Specification

Application

BK outlet, SAT outlet
Order number

00540831

EAN-Code

4026187210885

Product Details
  • Signal feed (Coax lines)
    • 4 satellites via Quatro LNB (standard)
    • 8 satellites via Wideband LNBs (programmable)
    • Terrestrial (5 to 862 MHz - suitable for DOCSIS)
    Outputs
    • 4 outputs (each Legacy or each 8 userbands)
    • 16 SAT loop-through outputs
    Output signal
    • AGC
    • Level 78 / 82 / 86 / 90 dBµV (programmable)
    Userbands
    • 8 UBs: 1,375 to 1,725 MHz (standard)
    • Other userband grid programmable
    Supply
    • Power supply unit SEV NT is necessary for LNB supply.
    • Energy-efficient power management concept
Download Details
