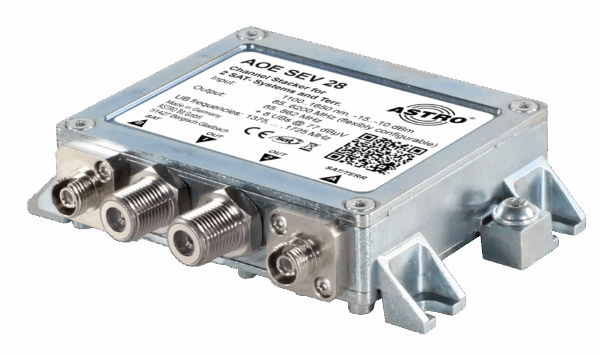

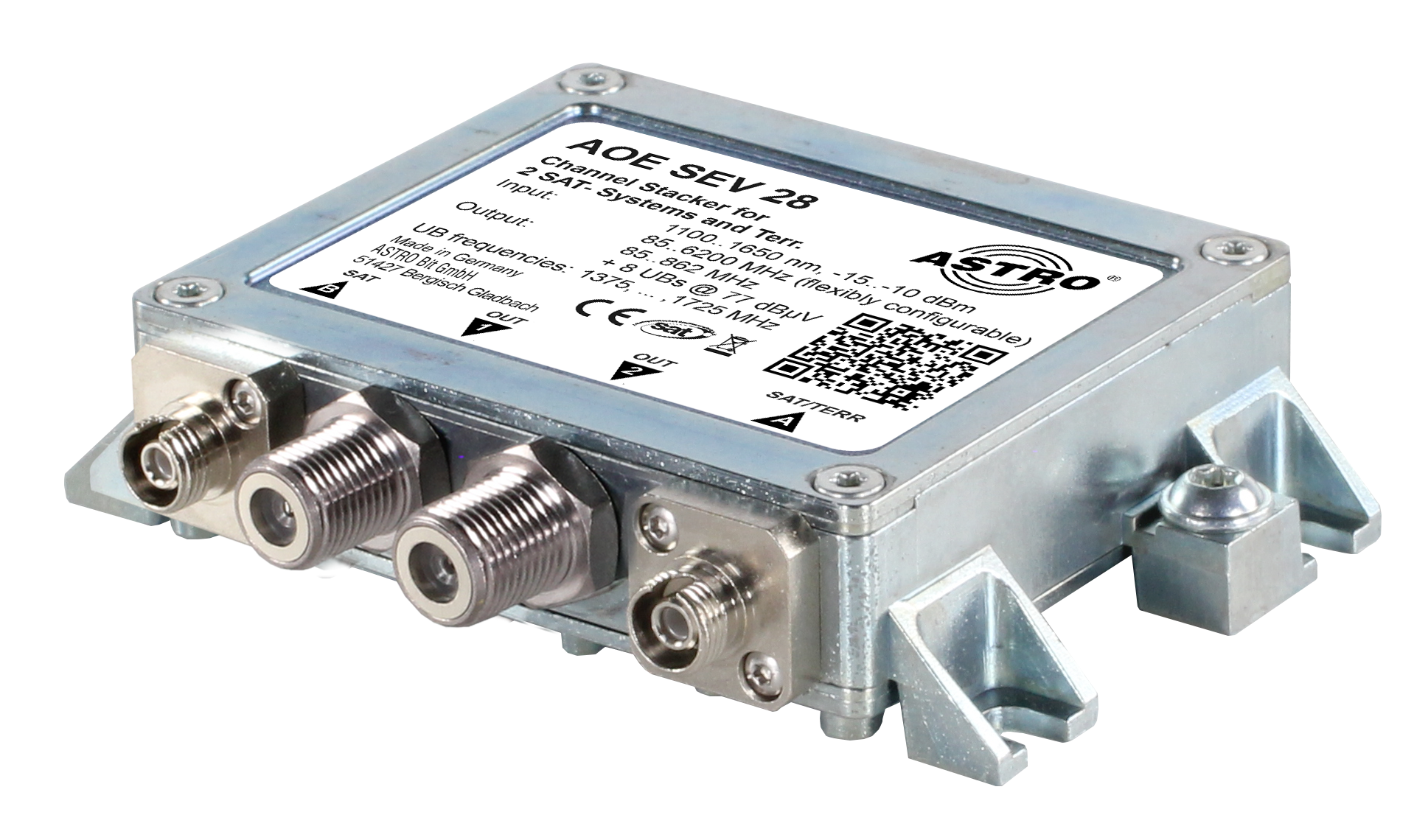

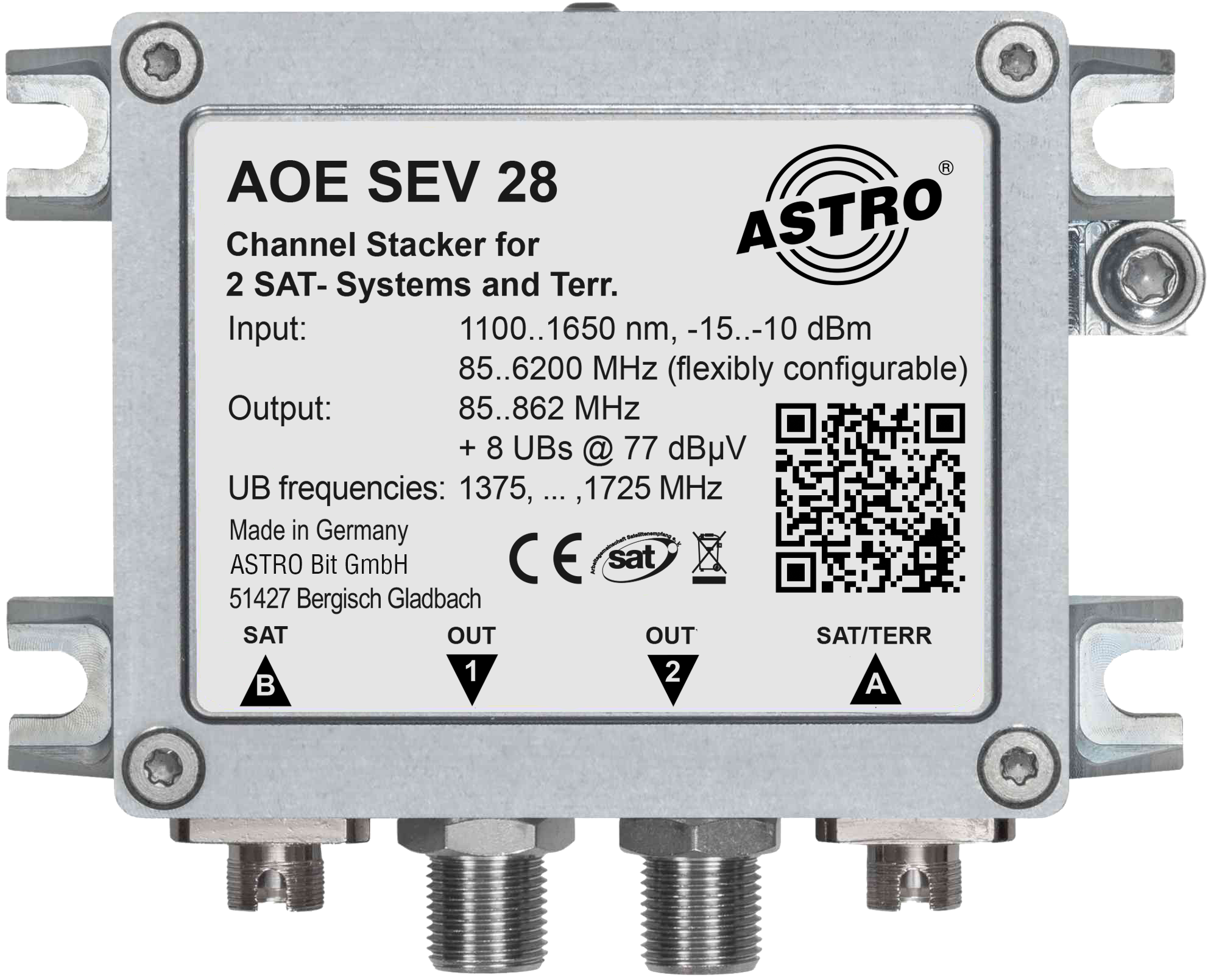

Single-cable Converter for 2 satellites and terrestrial
Single-cable Converter for 2 satellites and terrestrial - Image 2
Single-cable Converter for 2 satellites and terrestrial - Image 3

Single-cable Converter for 2 satellites and terrestrial

Login to see prices

Single-cable Converter for 2 satellites and terrestrial with optical input

AOE SEV 28

Specification

Application

BK outlet, SAT outlet
Order number

00540831

EAN-Code

4026187210779

Product Details
Signal feed (Optical)
  • 2 satellites via optical feeder
  • Global Invacom or Fracarro system (programmable)
Outputs
  • 8 userbands
  • Output via 2 fold splitter (smart splitter)
Output signal
  • AGC control
  • Level 77 dBµV
Userbands
  • 8 UBs: 1,375 to 1,725 MHz (standard)
  • Other userband grid programmable
Supply
  • Feeding via the receiving unit. With terrestrial 5 V feed active
  • Energy-efficient power management concept
Download Details

Product is combinable with

Cover plate for 3 connector wall outlet (10 pieces)

GUZ 45
Cover plate for 3-hole socket, 80×80 mm, electro white, Vodafone and Unitymedia certified.
