Single-cable Converter for 1 (2) satellites
Single-cable Converter for 1 (2) satellites - Image 2
Single-cable Converter for 1 (2) satellites - Image 3

Single-cable Converter for 1 (2) satellites

Login to see prices

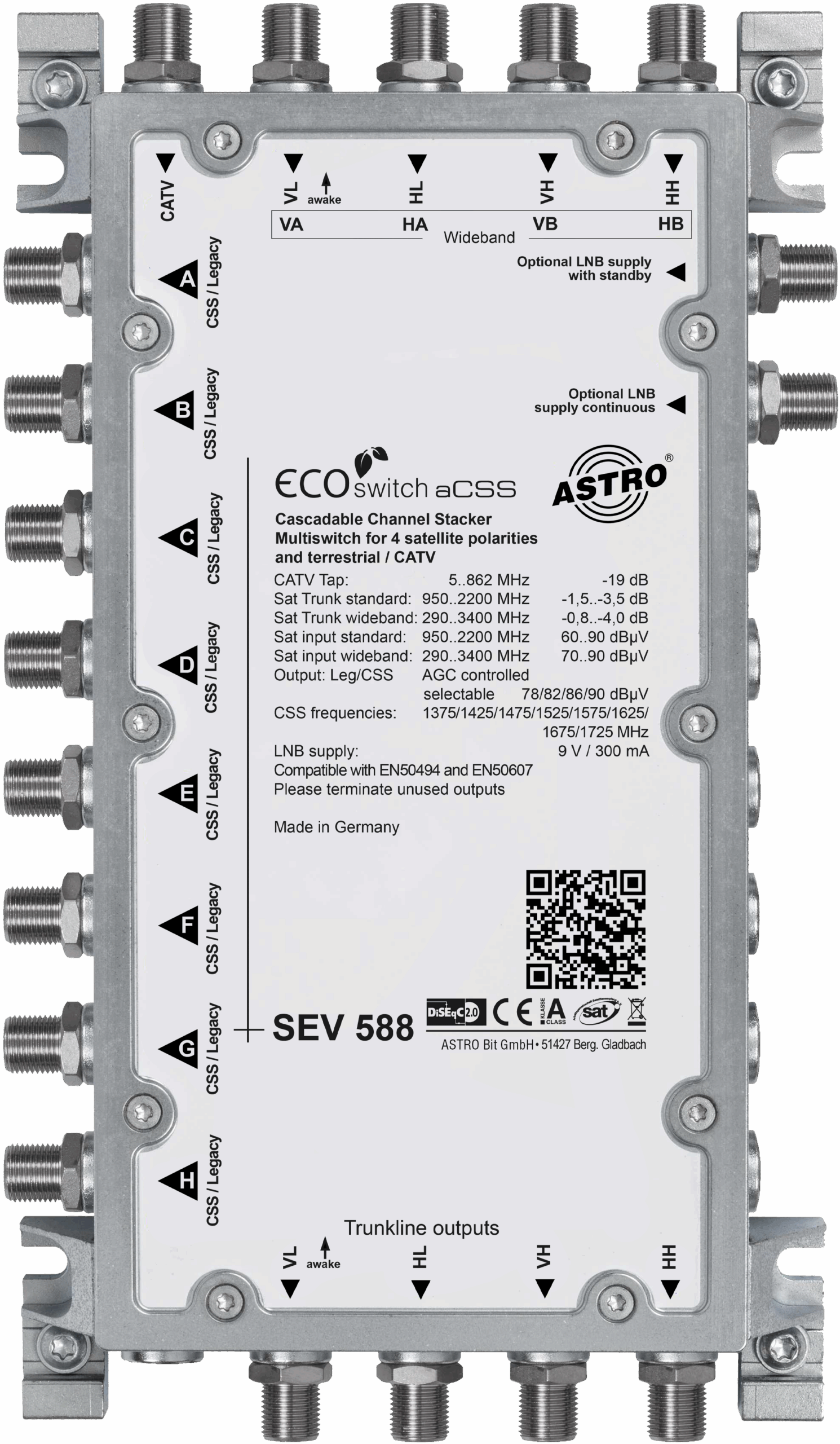

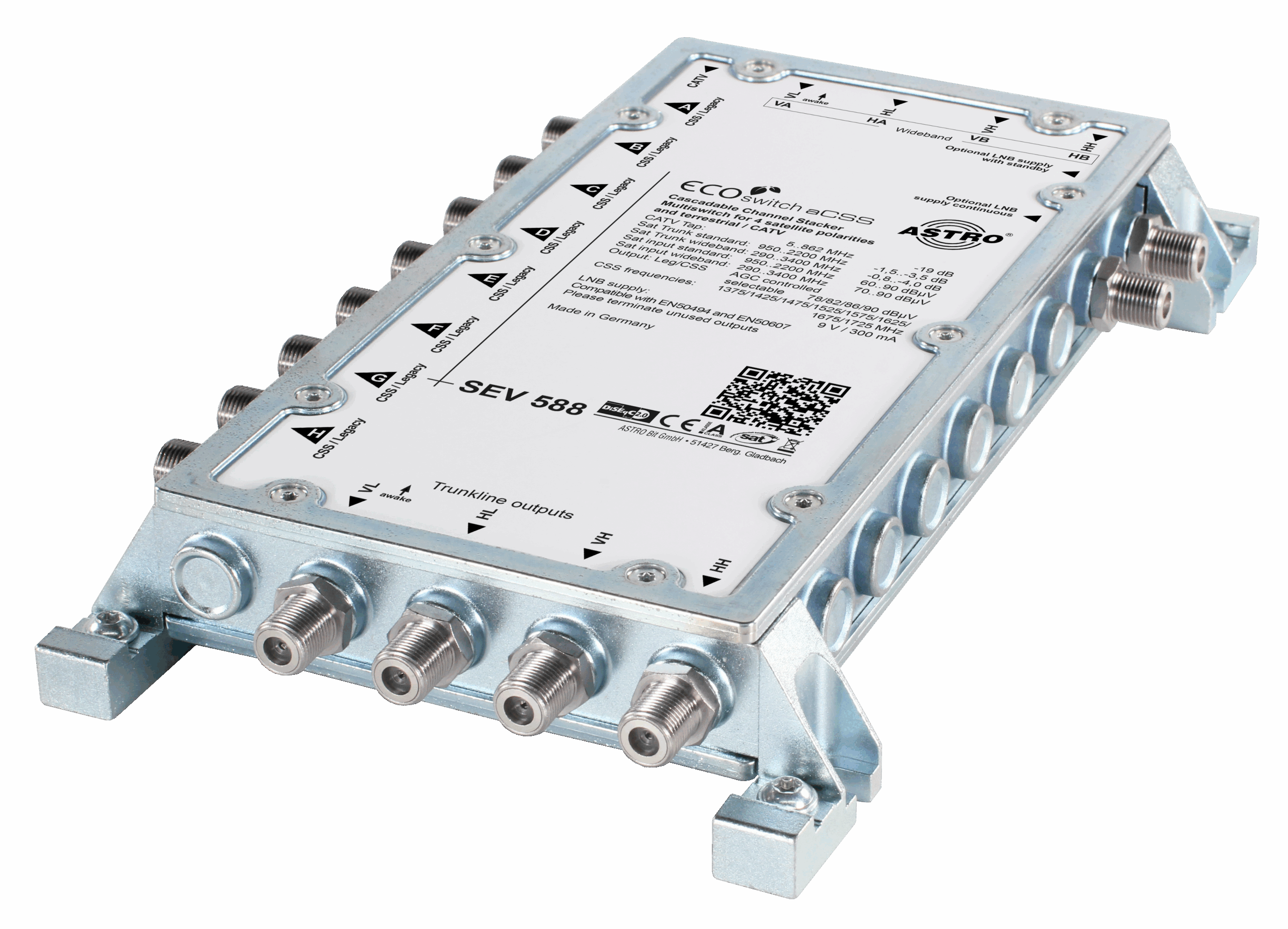

Single-cable Converter for 1 (2) satellites, 8 outputs (each Legacy or each 8 userbands), 4 SAT loop-through outputs

SEV 588

Specification

Application

BK outlet, SAT outlet
Order number

00540834

EAN-Code

4026187210830

Product Details
  • Signal feed (Coax lines)
    • 1 satellit via Quatro LNB (standard)
    • 2 satellites via Wideband LNBs (programmable)
    • Terrestrial (5 to 862 MHz - suitable for DOCSIS)
    Outputs
    • 8 outputs (each Legacy or each 8 userbands)
    • 4 SAT loop-through outputs
    Output signal
    • AGC
    • Level 78 / 82 / 86 / 90 dBµV (programmable)
    Userbands
    • 8 UBs: 1,375 to 1,725 MHz (standard)
    • Other userband grid programmable
    Supply
    • Converter and LNB supply via receiver. Power supply unit is not required, but possible.
    • Energy-efficient power management concept
    t
Download Details

Product is combinable with

Cover plate for 3 connector wall outlet (10 pieces)

GUZ 45
Cover plate for 3-hole socket, 80×80 mm, electro white, Vodafone and Unitymedia certified.
