Single-cable Converter for 1 (2) satellites

Login to see prices

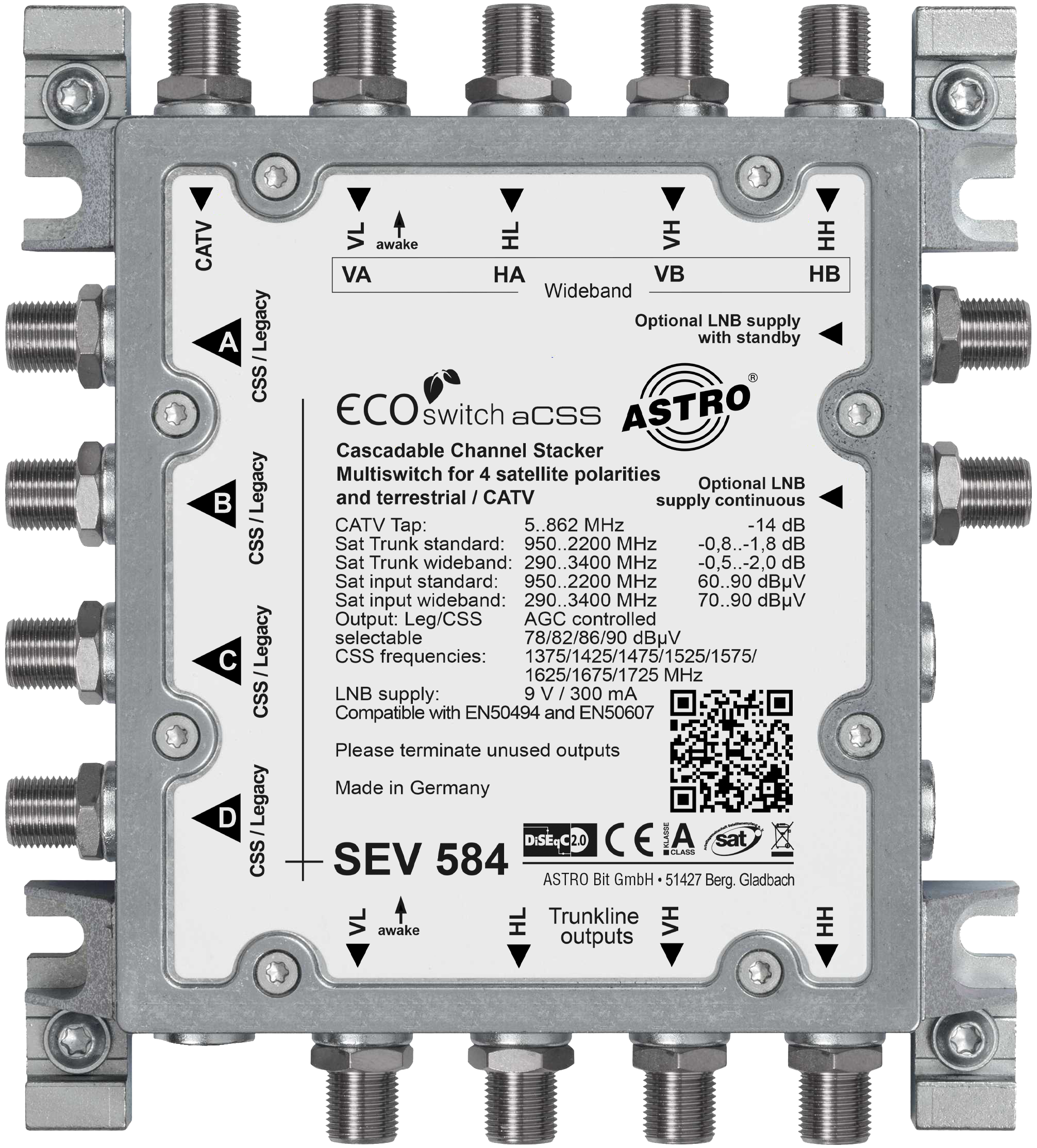

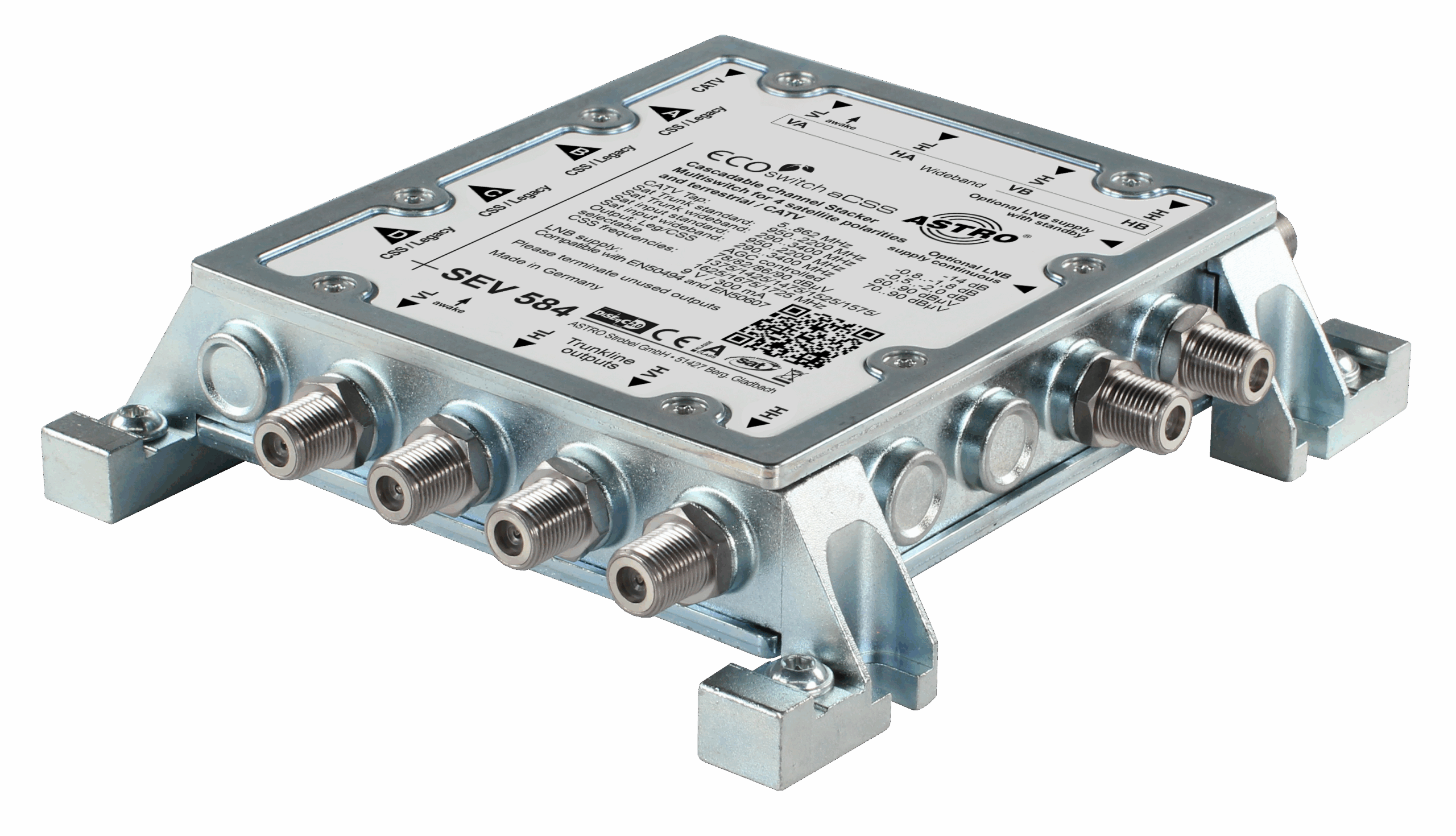

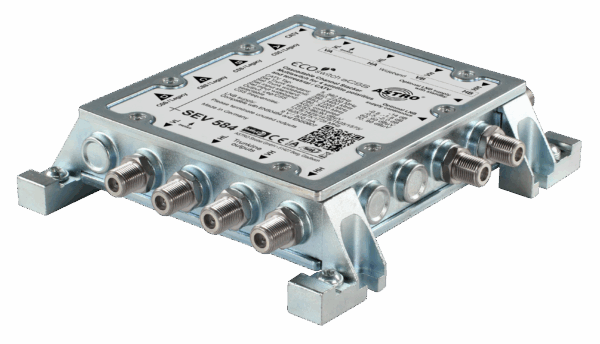

Single-cable Converter for 1 (2) satellites, 4 outputs, 4 SAT loop-through outputs

SEV 584

Specification

Type

Single-cable converter
Order number

00540831

EAN-Code

4026187210823

Product Details
Signal feed (Coax lines)
  • 1 satellit via Quatro LNB (standard)
  • 2 satellites via Wideband LNBs (programmable)
  • Terrestrial (5 to 862 MHz - suitable for DOCSIS)
Outputs
  • 4 outputs (each Legacy or each 8 userbands)
  • 4 SAT loop-through outputs
Output signal
  • AGC
  • Level 78 / 82 / 86 / 90 dBµV (programmable)
Userbands
  • 8 UBs: 1,375 to 1,725 MHz (standard)
  • Other userband grid programmable
Supply
  • Converter and LNB supply via receiver. Power supply unit is not required, but possible.
  • Energy-efficient power management concept
