Chevron holder

€ 135.00

Rafter distance 870 – 1100 mm

Mounting type	Pole mounting
Accessory type	Mast accessories

Order number	00370134
EAN-Code	4026187592127

SDH 130 XL

4 in stock

Product Details

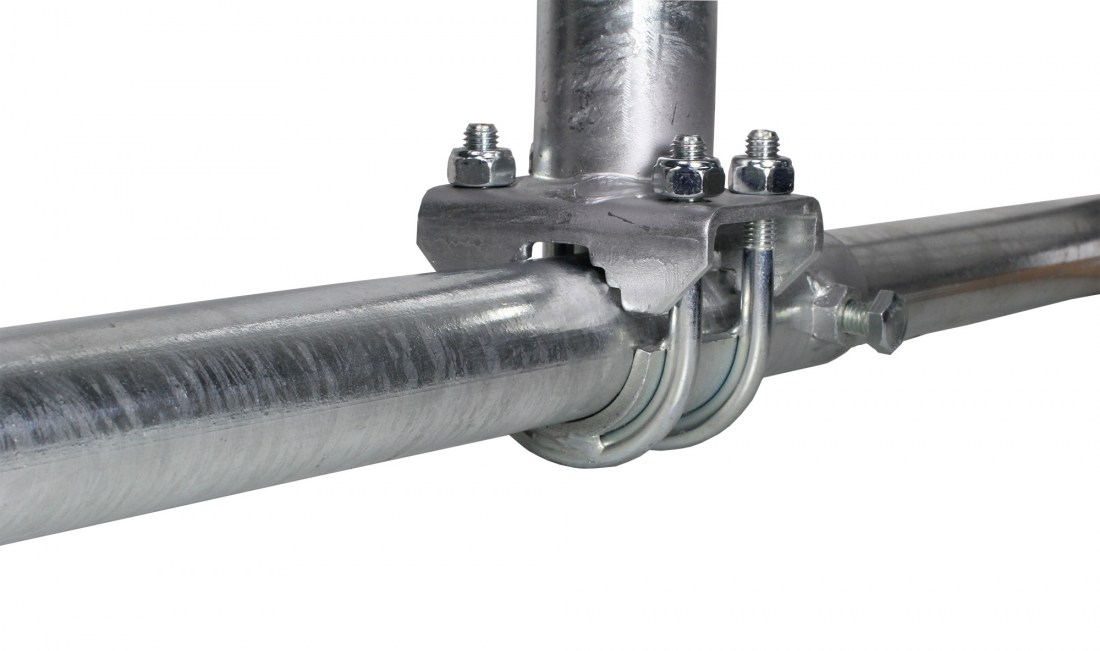

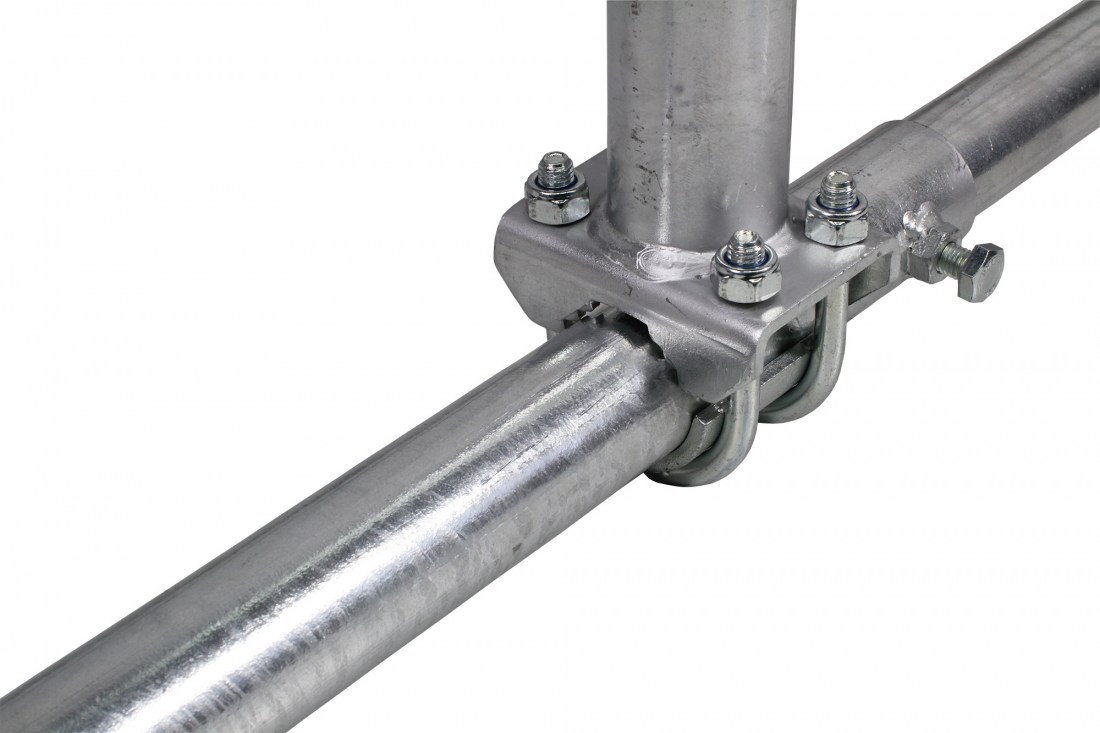

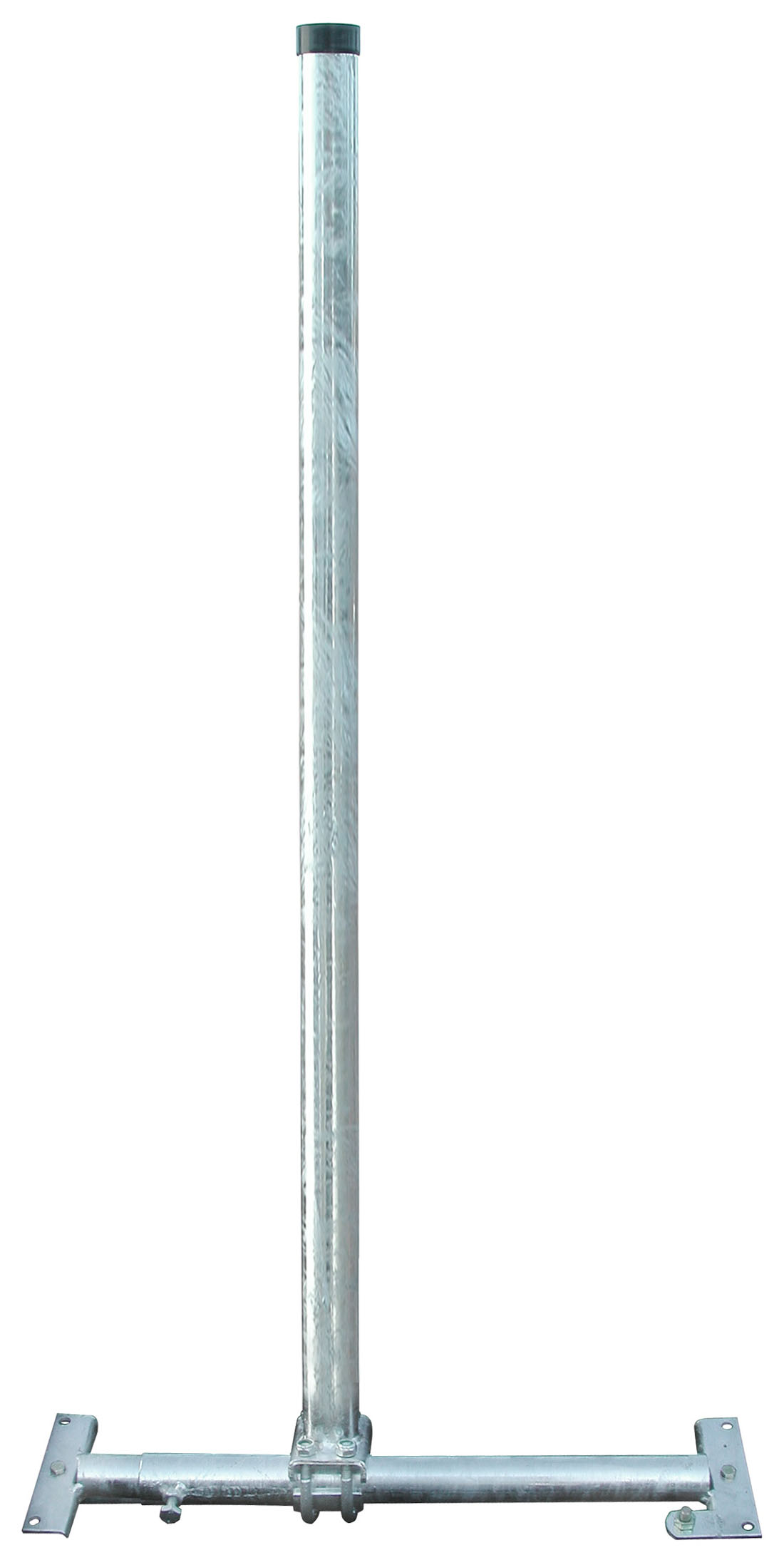

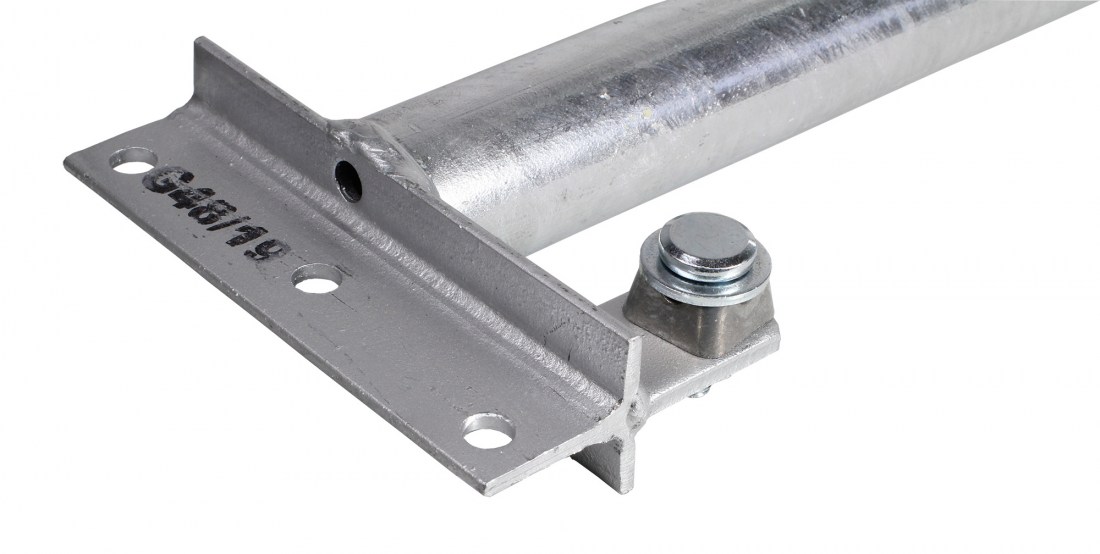

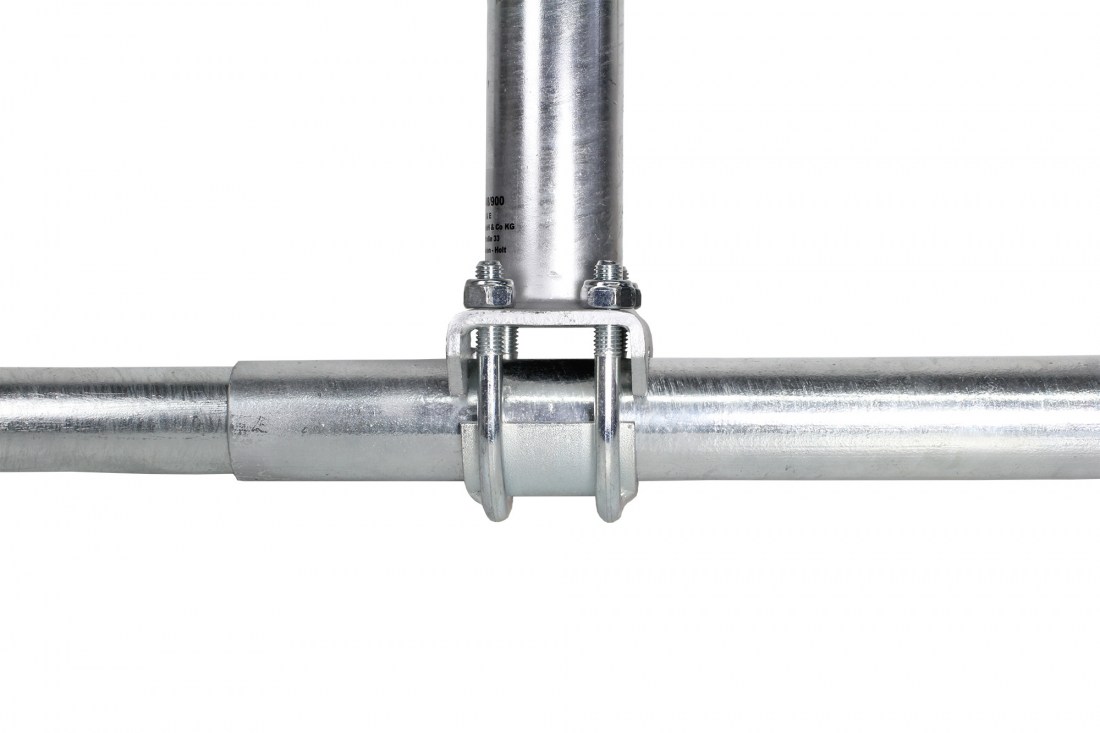

patented roof holder for parabolic antennas, material: steel, hot-dip galvanized

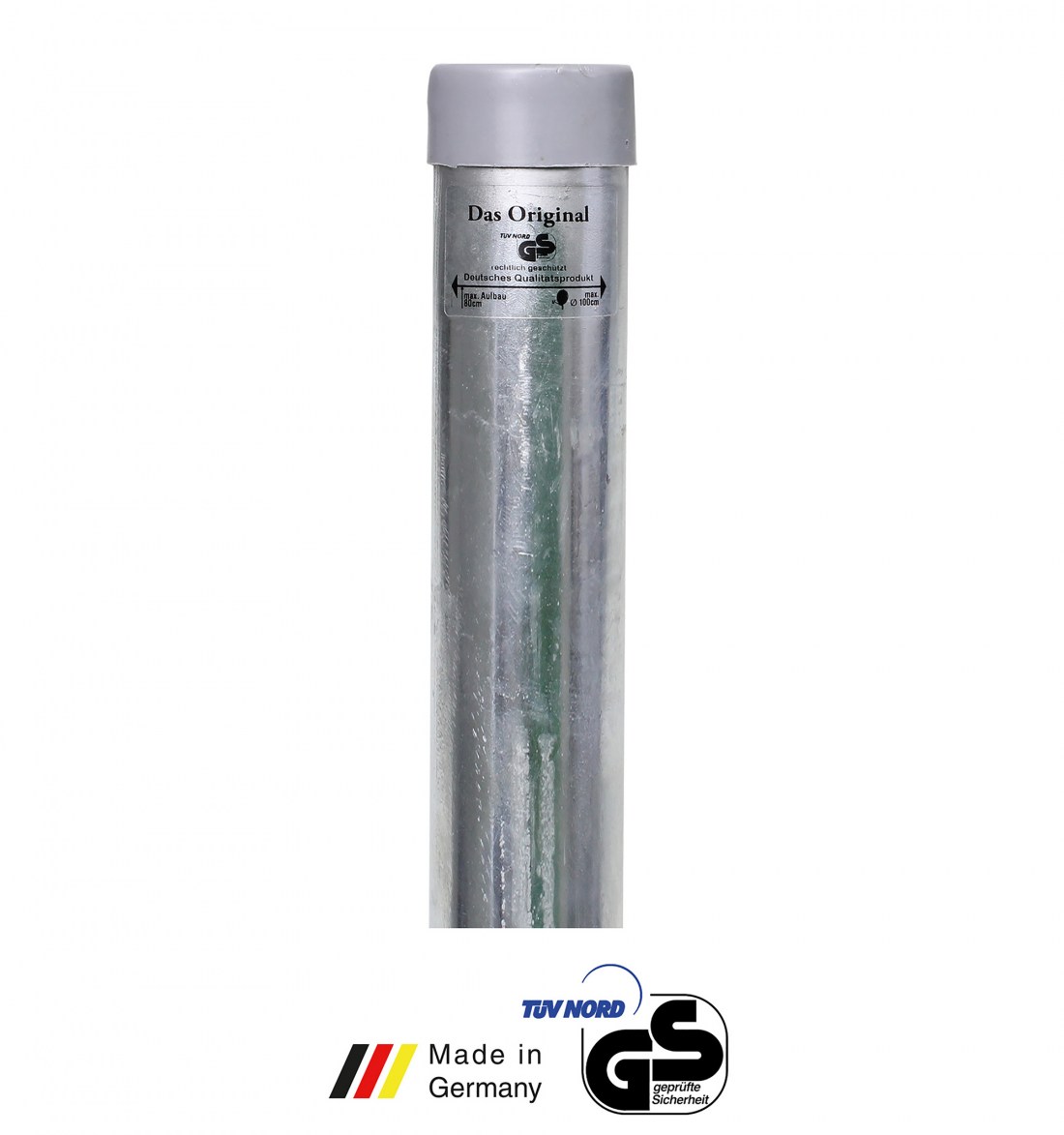

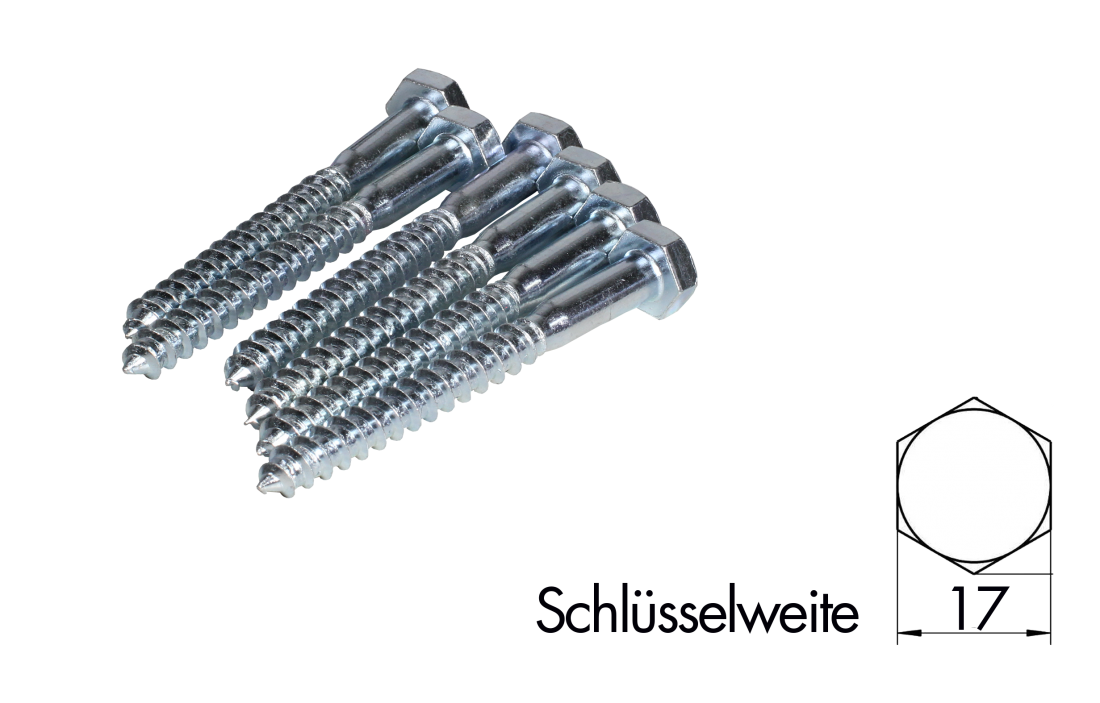

including mast cap, 6 wood screws (10 x 100 mm)
adjustable in width (flexibly extendable)
Cable bushing in combination with mast cap MHD 48/60
Can be mounted anywhere on the roof
simple assembly, as it is only worked from the outside
Fixed calculable installation costs
for parabolic antennas up to 100 cm Ø plus UKW antenna

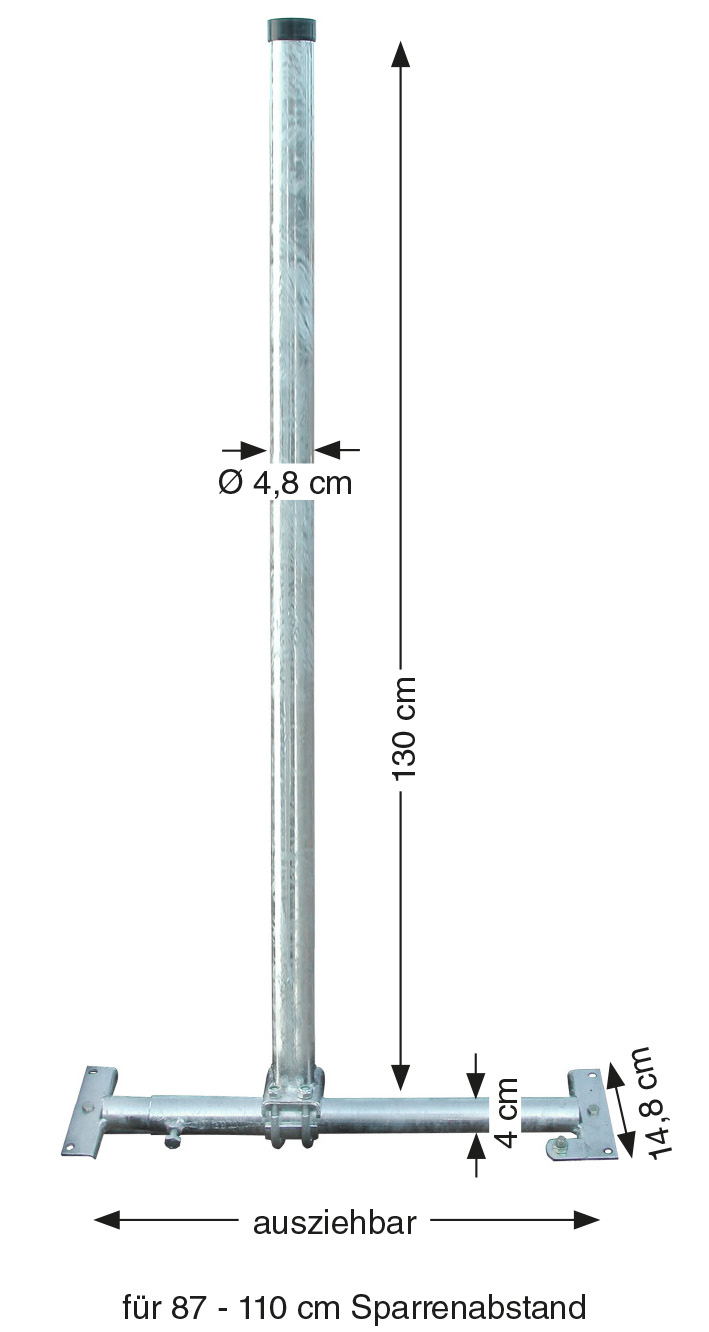

Mast length 130 cm, mast diameter 48 mm
Rafter distance 870 - 1100 mm

Download Details

Product is combinable with
