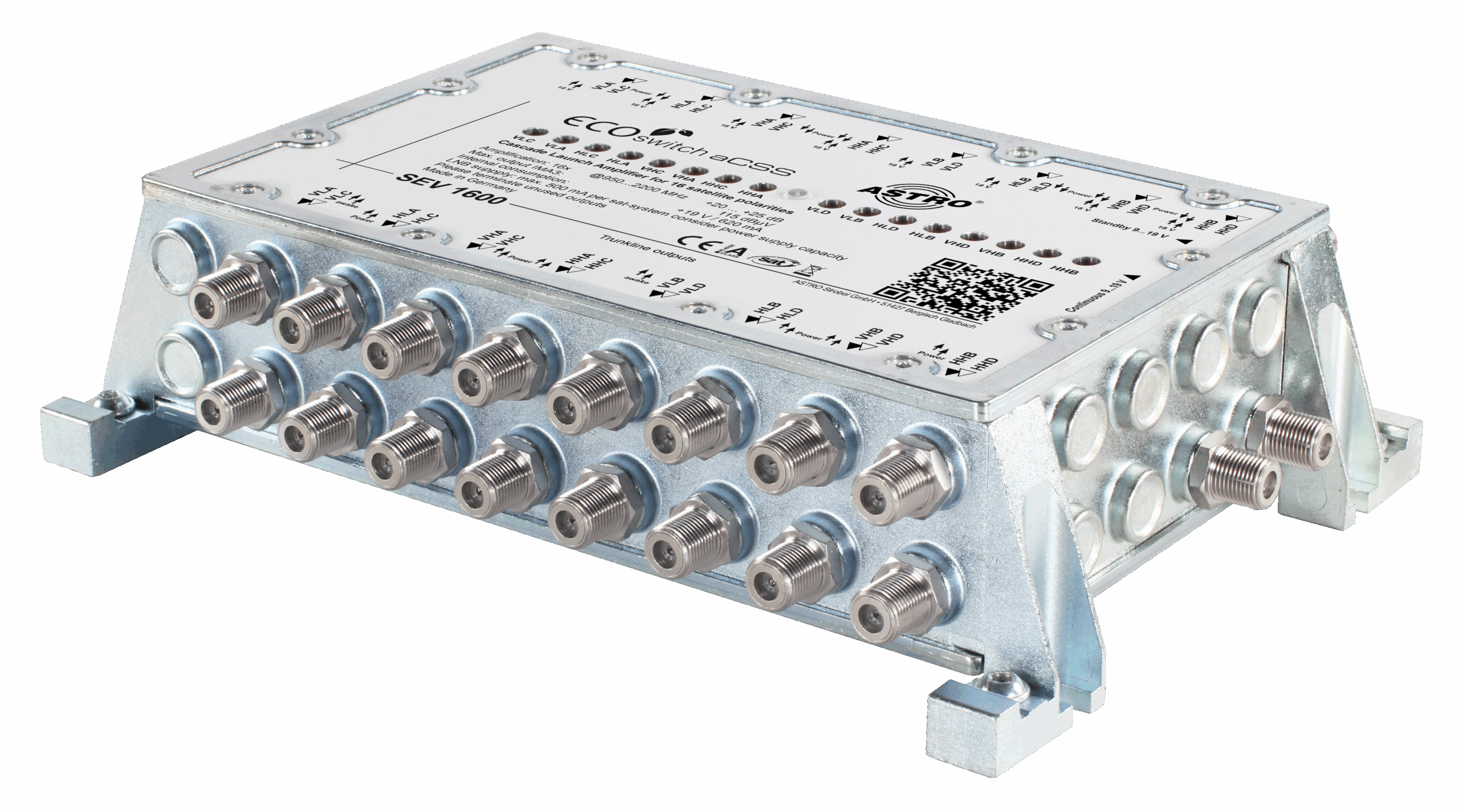

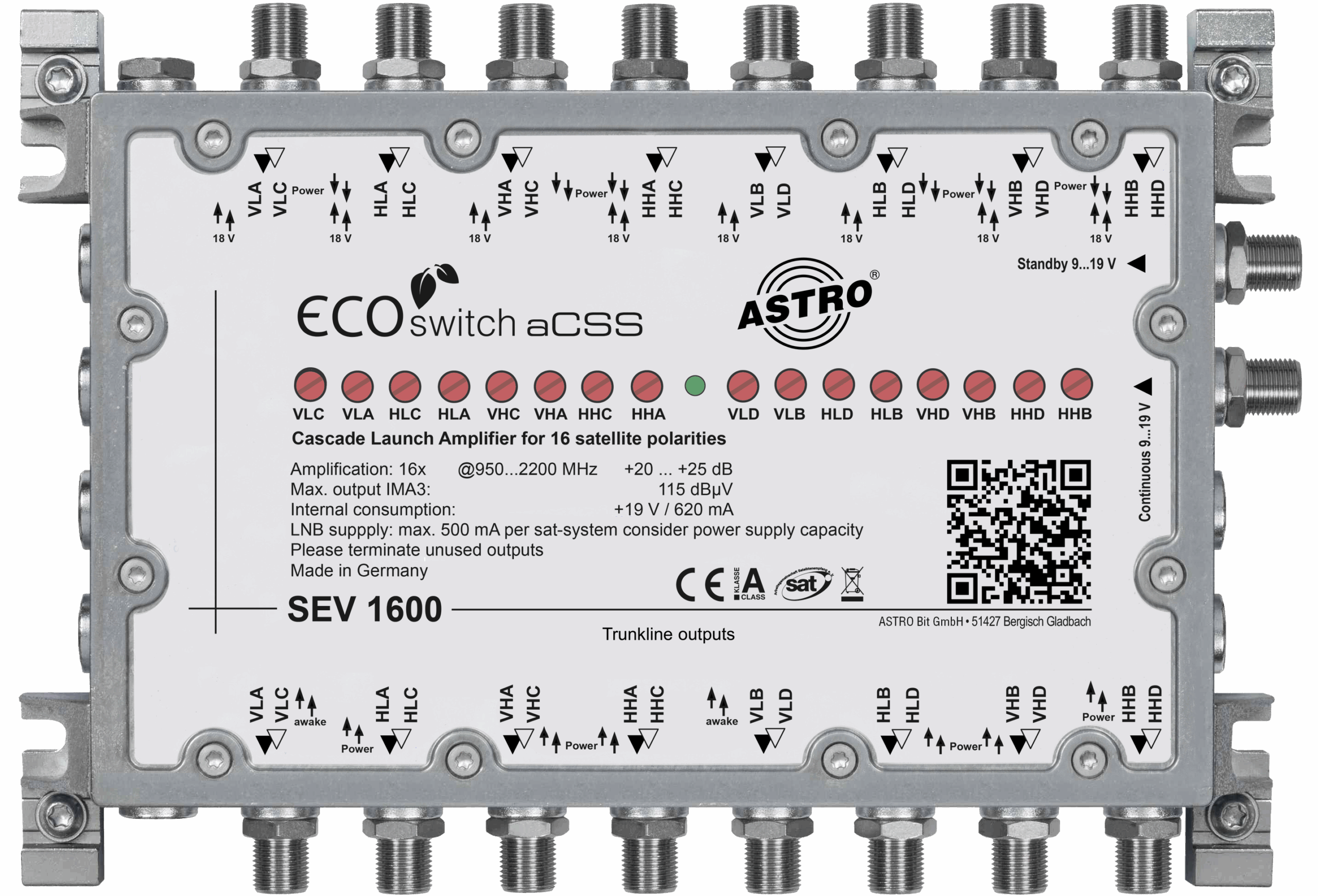

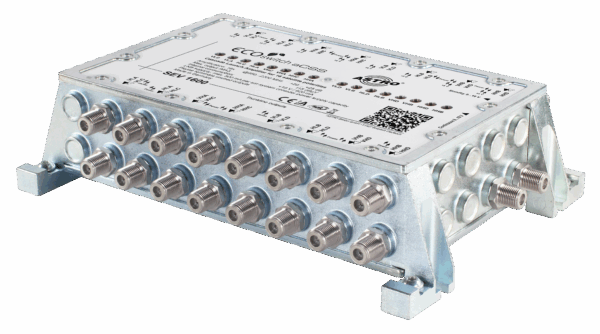

Sat cascadable start amplifier
Sat cascadable start amplifier - Image 2
Sat cascadable start amplifier - Image 3

Sat cascadable start amplifier

Login to see prices

Sat cascadable start amplifier, 16 satellite levels via coax – no terrestrial

SEV 1600

Specification

Application

BK outlet, SAT outlet
Order number

00540831

Product Details
Signal feed (SAT)
  • 16 satellite levels via coax - no terrestrial
Outputs
  • 16 satellite levels 950 to 2,200 MHz
Output signal
  • Gain 16 x 20 to 25 dB (equalization 5 dB)
  • Level control for each output
Supply
  • Remote supply, e. g. via multiswitch
  • via power supply unit SEV NT (in the scope of delivery)
Download Details

Product is combinable with

Cover plate for 3 connector wall outlet (10 pieces)

GUZ 45
Cover plate for 3-hole socket, 80×80 mm, electro white, Vodafone and Unitymedia certified.
