Budget-priced multiswitch
€ 229.95
with 12 subscriber outputs
Specification
| Model | Low Price |
|---|---|
| SAT inputs | 1 |
| Outputs | 12 |
| Device type | Stand-alone device |
| Order number | 00360518 |
|---|---|
| EAN-Code | 4026187197810 |
SAM 512 Montage-Kit
Out of stock
Product Details
- Premounted multi-switch with 12 subscriber outputs
- Multi-switch complete package 2 with overvoltage/fine protection
- Potential equalisation with ESF... prepared
- Use of high-quality jumper cables with compression plugs
- Energy saving concept with stand-by function
- Operating status display
- flame-retardant plastic parts
- feedback channel compatible
- low decoupling attenuation in the SAT range

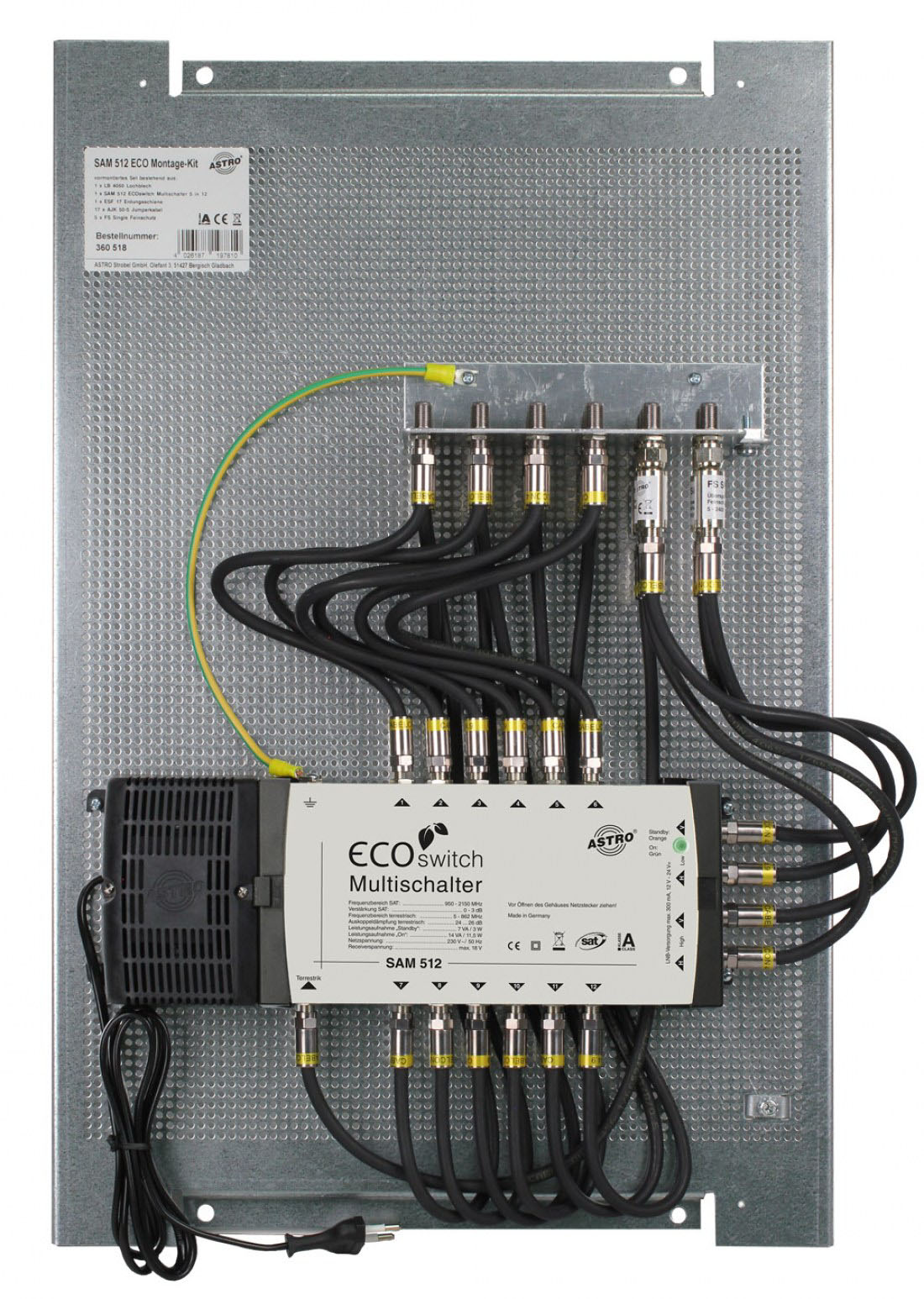

- pre-assembled set consisting of:
- 1 x LB 4060 perforated plate
- 1 x SAM 512 ECOswitch Multiswitch 5 in 12
- 1 x ESF 17 Earthing rail
- 17 x AJK 50-5 Jumper cable
- 5 x FS Single fine protection
- (order at the same time: mounting cabinet LGH 4060 order number: 189 460)
Download Details
-
Fyer SAM 512 Montagekit pdf · 2mb
-
Datenblatt SAM 58 Montagekits DE pdf · 2mb
