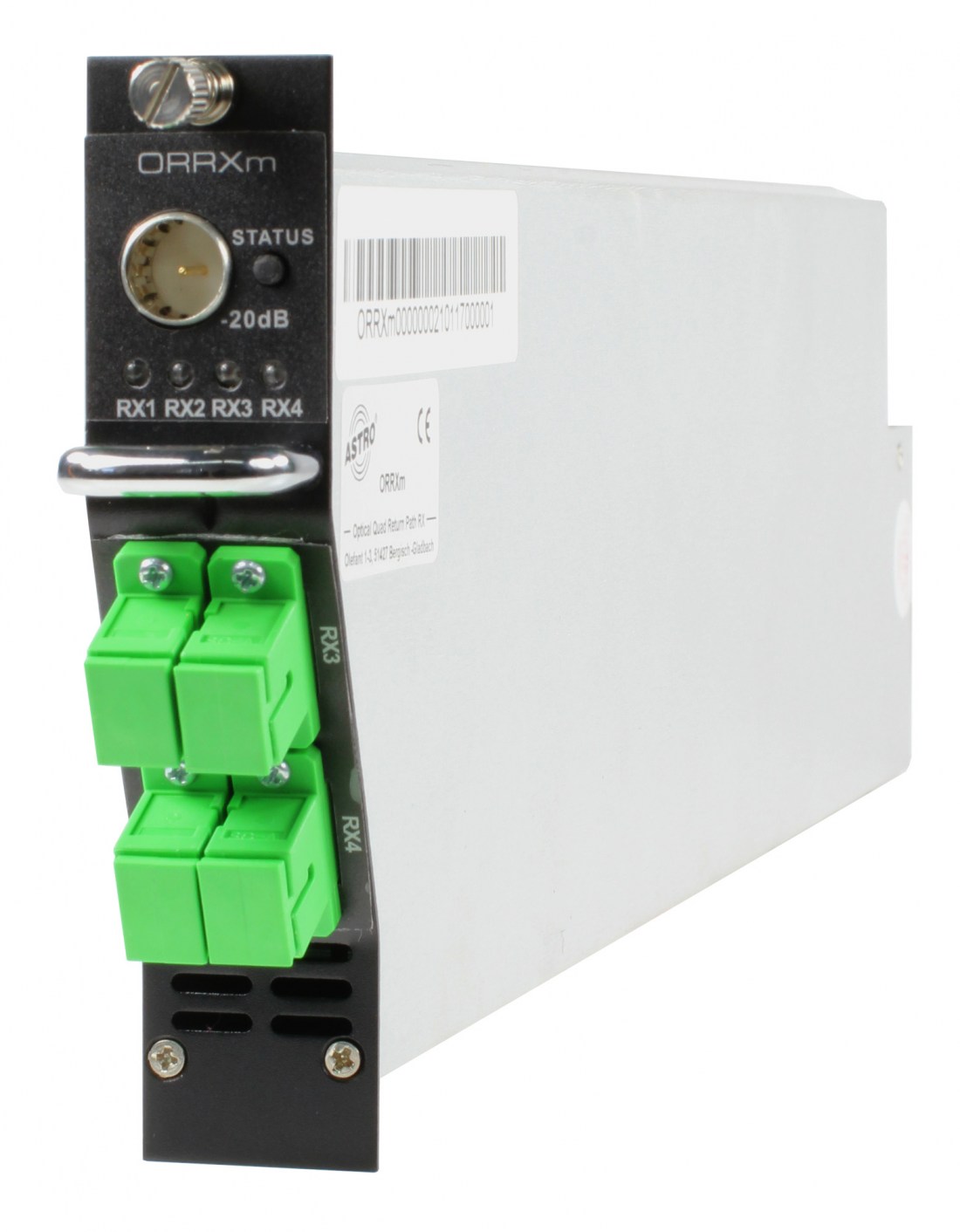

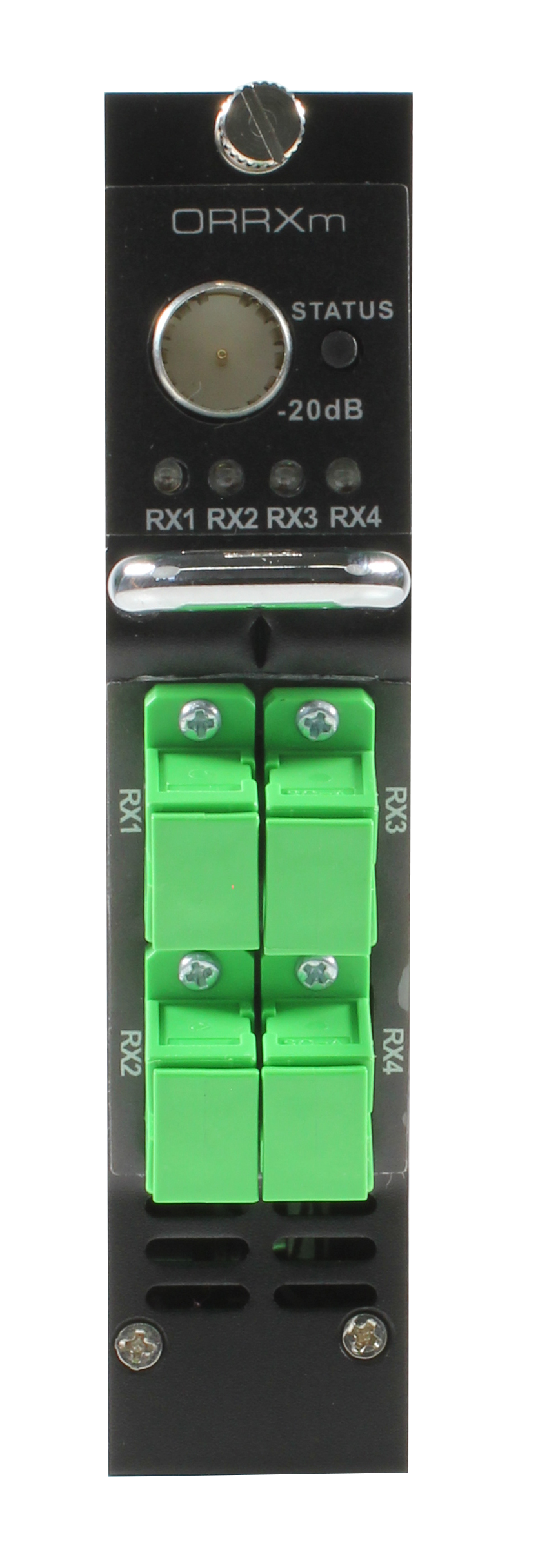

Optical return path receiver
€ 575.00
for AOCS base units
Specification
| Module type | Return path receiver |
|---|---|
| Power supply unit | No power supply unit |
| Order number | 00212191 |
|---|---|
| EAN-Code | 4026187199142 |
ORRXm
Out of stock
Product Details
- optical return path receiver for DOCSIS 3.1 applications, 4 ports
- 1260 nm - 1610 nm
- Normal or RFoG Mode
- AGC range 0 .. -10 dBm
- RF Level > 100 dBµV in AGC range
- 5 ..200 MHz

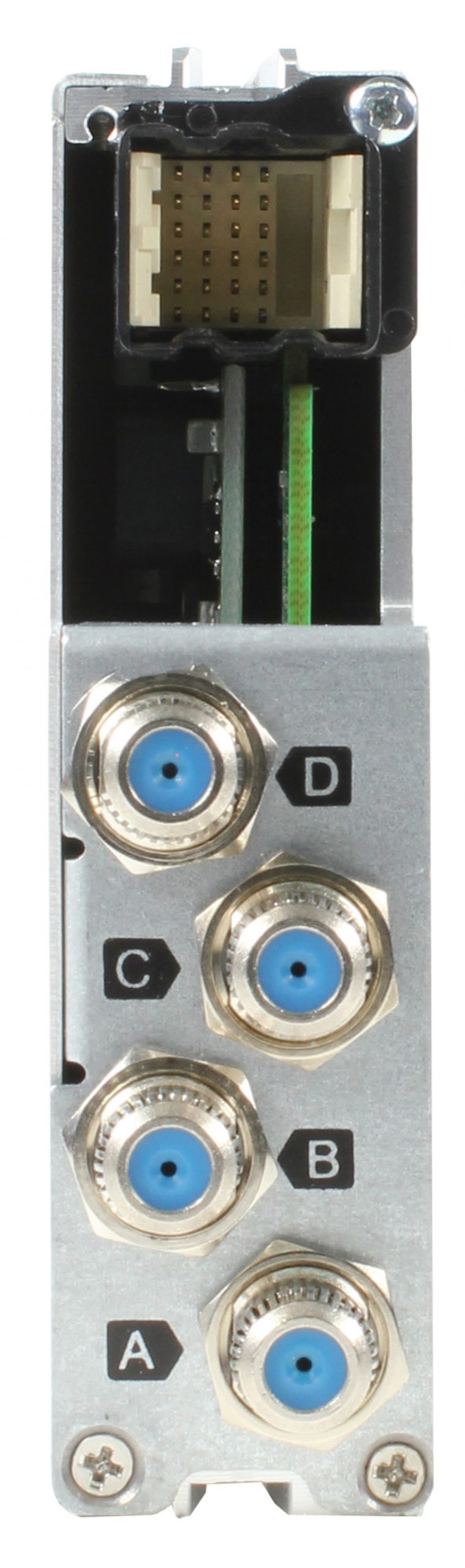

- 4 x 4 or 4 x 1 RF combination, switchable per electronical setting
- for the termination of optical return path signals
- four independent upstream receivers
- each RF port is equipped with 20 dB test point
- optical input power range 0 ... -27 dBm
- SNMP
- attenuation and slope adjustment via onboard display
- 1 slot module for chassis
Download Details
-
Betriebsanleitung ORRXm DE pdf · 2mb
-
Betriebsanleitung ORRXm EN pdf · 2mb
-
Datenblatt ORRXm DE pdf · 2mb
-
Datenblatt ORRXm EN pdf · 2mb
-
Blockschaltbild ORRXm pdf · 2mb
