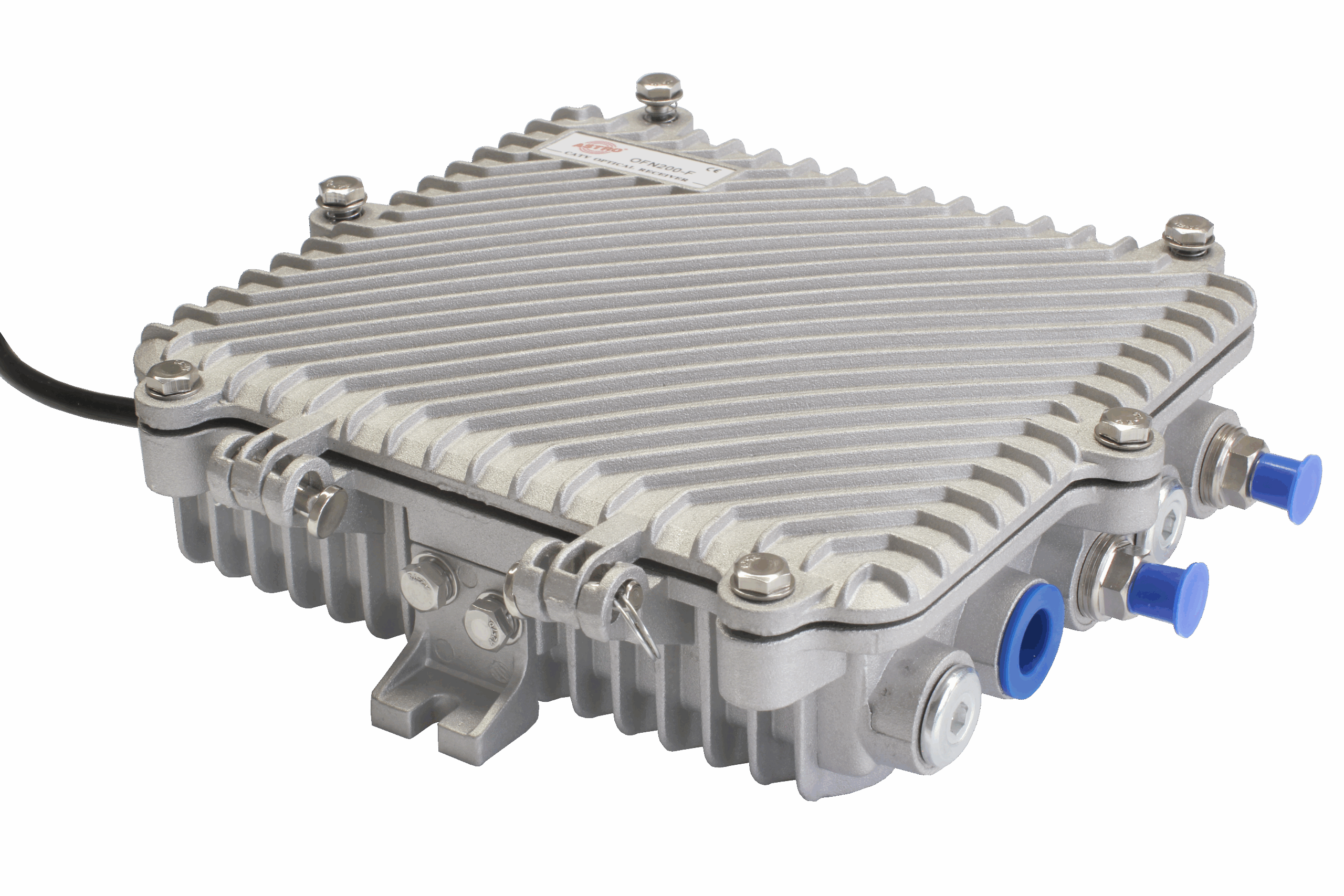

Optical CATV Node

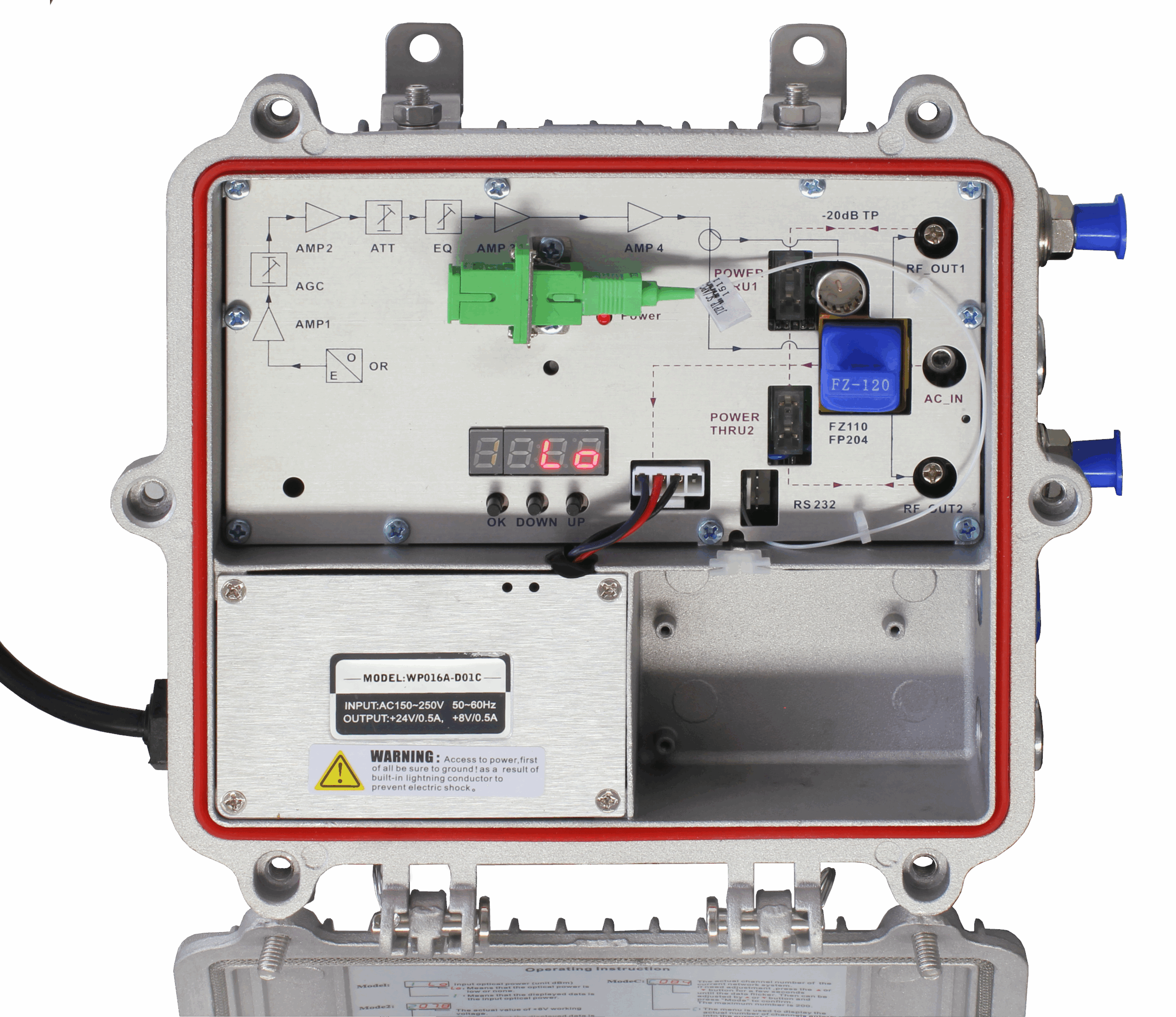

Optical CATV Node - Image 2
Optical CATV Node - Image 3

Optical CATV Node

Login to see prices

Optical node for FTTB/FTTC

OFN200-F AC

Specification

Order number

00212107

EAN-Code

4026187192976

Product Details
  • FTTB/FTTC optical Node
  • Downstream reception of CATV signals
  • optical input power -7 ... +2 dBm
  • nominal output level >108 dBµV (@ OMI 3,5%)
  • electronically adjustable attenuation and equalizer
  • RF frequency range 45 -1006 MHz
  • operational voltage 150 - 265 VAC
  • optical connectors SC/APC
Download Details
