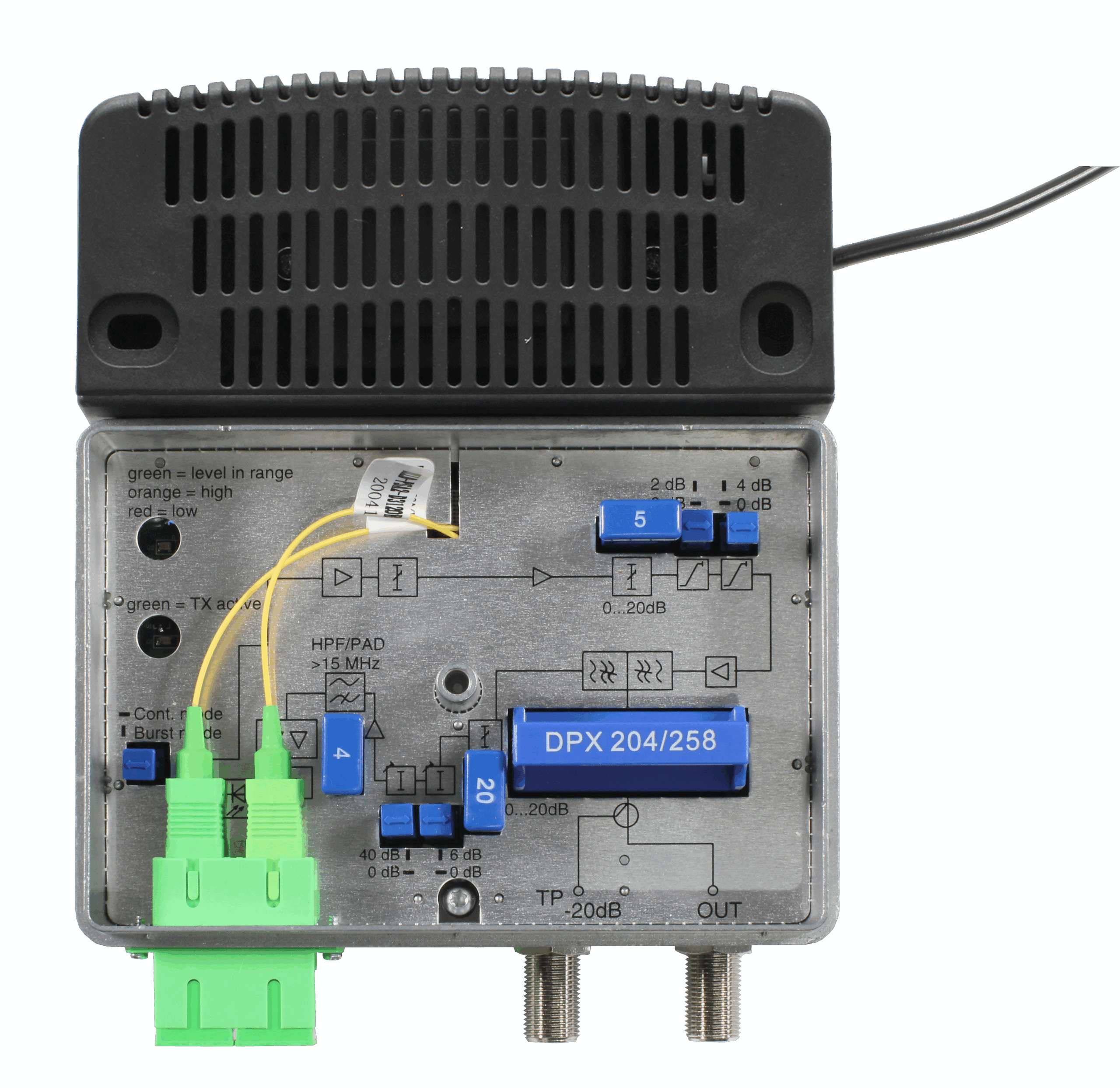

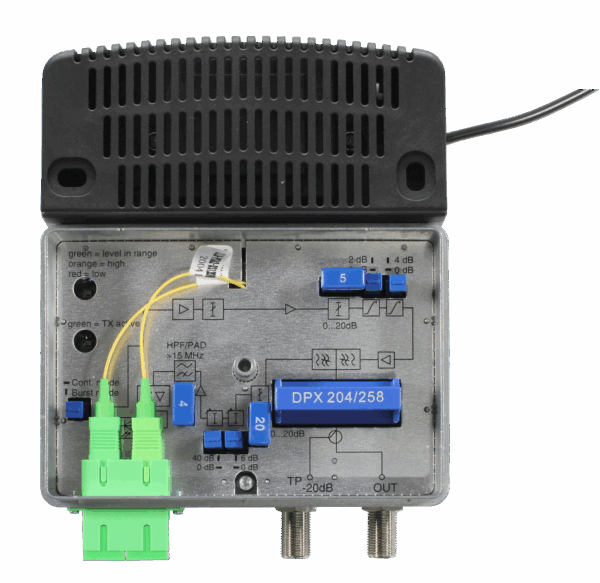

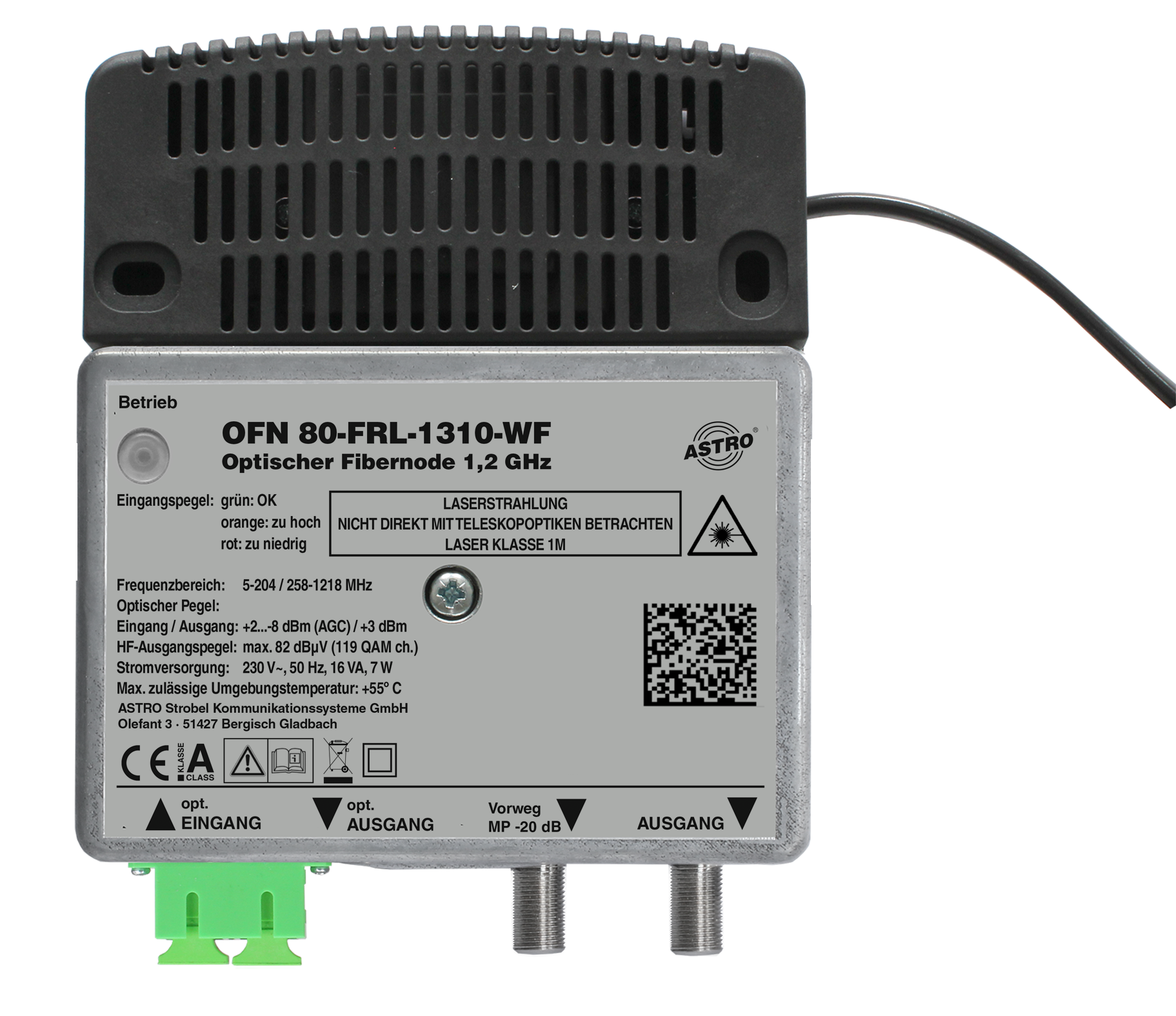

Optical CATV compact receiver
Optical CATV compact receiver, 1310 nm Upstream TX
OFN80-FRL-1310-WF-04
Specification
| Order number | 00212107 |
|---|---|
| EAN-Code | 4026187198589 |
Product Details
- Fibre node with separate forward and return fibre
- wavelength in forward path 1545 - 1565 nm
- 1310 nm Upstream TX
- Automatic Gain Control (AGC)
- attenuation with PAD in forward path
- slope adjustment selectable with jumper 0db / 2dB / 4dB / 6dB
- return path with continuous or burst mode
- attenuation in return path with PADs
- ingress noise test/filter with jumpers (0dB / 6dB /40dB)
- pluggable diplexer: 65/85 or 204/258
- forward path frequency: 1218 MHz
- return path 5-205 MHz
- separate forward and return path fibre
- built-in power supply 230 VA
- optional fibre tray available
Download Details
-
Anleitung OFN80 DE pdf · 2mb
-
Manual OFN80 EN pdf · 2mb
-
Datenblatt OFN80 DE pdf · 2mb
-
Data sheet OFN80 EN pdf · 2mb
-
Blockschaltbild OFN80 pdf · 2mb
