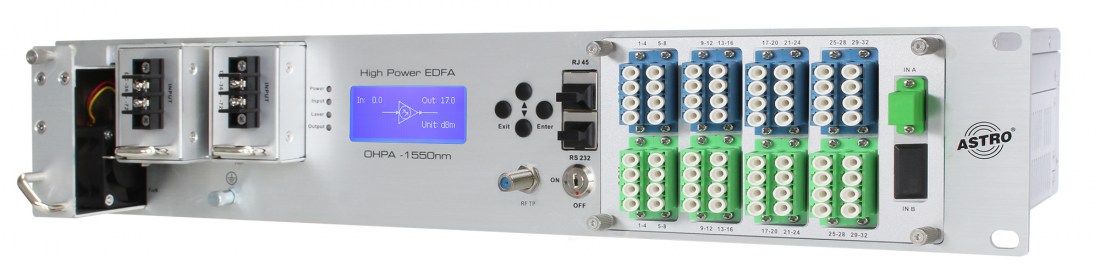

Optical high power amplifier

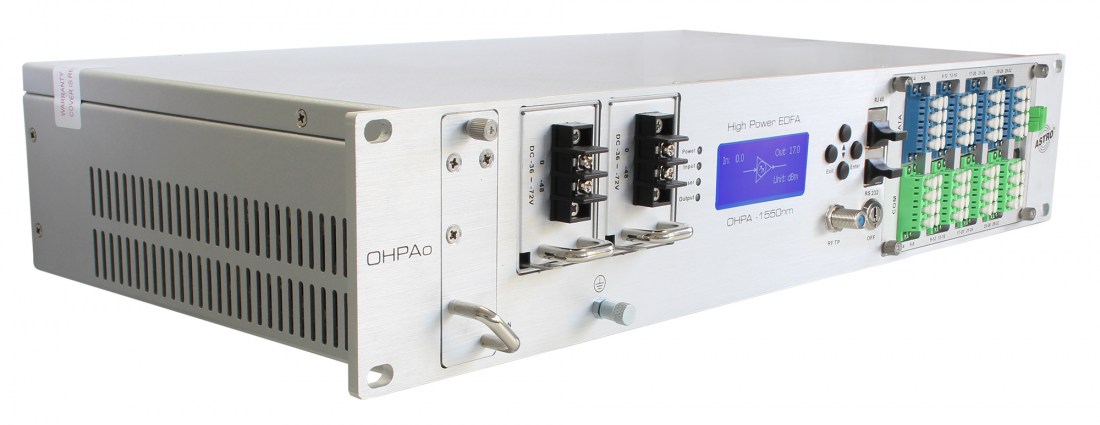

Optical high power amplifier - Image 2

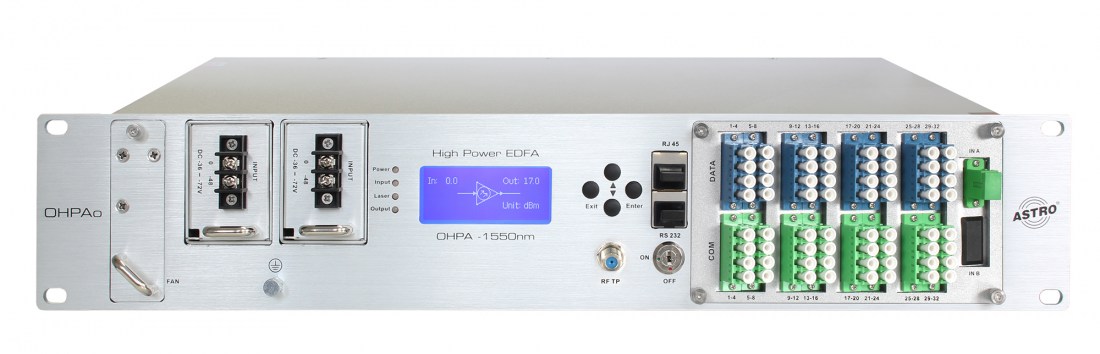

Optical high power amplifier - Image 3

Optical high power amplifier

€ 9'495.00

32 x 17 dBm, DC power supply

Specification

Type

WDM High Power EDFA
Order number

00212183

EAN-Code

4026187198701

OHPAo-32170 WDM DC

Out of stock

Product Details
  • Optical high-power amplifier for HFC and FTTH networks
  • 1550 nm optical wavelength
  • WDM filter for PON: 1260-1360 nm, 1480-1500 nm, 1575-1581 nm, 1610-1660 nm
  • ErYb doped double clad technology
  • 16 optical outputs with each 17 dBm optical output power
  • 19" housing, two RU
  • Settings via Frontpanel or Web Interface
  • SNMP
  • low power consumption
  • redundant power supplies
  • redundant DC power supplies
  • all connections accessible via the front panel
  • Fans exchangeable via front panel
Download Details

Product is combinable with

Externally modulated transmitter
OEMTX-1550-10 DC
1550 nm, 2 x 10 dBm
11.500,00 € plus VAT
