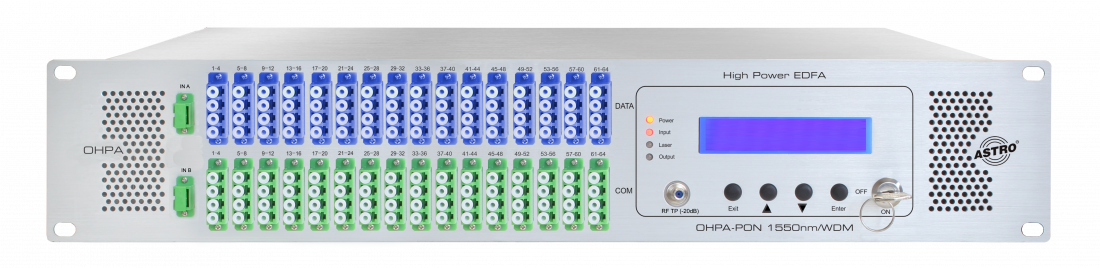

Optical amplifier with WDM and input switch

Optical amplifier with WDM and input switch

€ 9'995.00

1550 nm, 64 x 17 dBm optical output power

OHPA-64170-WDM-S DC

Specification

Type

WDM High Power EDFA
Order number

00212036

EAN-Code

4026187194598

Out of stock

Product Details
  • optical high-power amplifier for FttH RF overlay networks
  • 1550 nm, 64 x 17 dBm optical output power
  • WDM filter 1310 nm / 1490 nm + 1550 nm integrated
  • integrated optical input switch for link redundancy
  • optical connectors SC/APC (input), LC/APC (COM output) and LC/PC (GPON)
  • 19" housing, two rack units
  • redundant power supply (36 - 72 VDC)
Download Details
