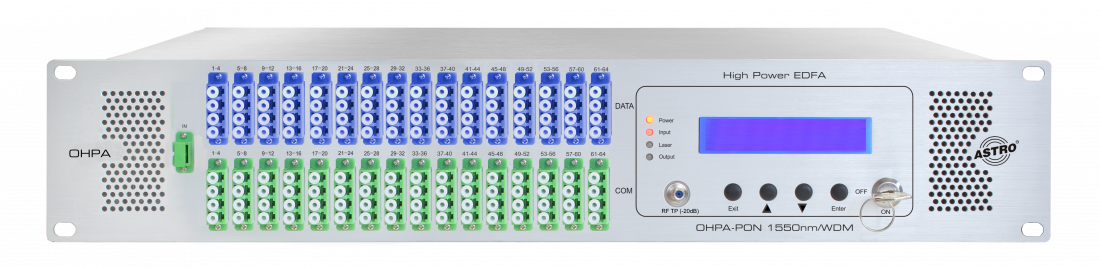

Optical amplifier with WDM
€ 9'795.00
1550 nm, 64 x 17 dBm optical output power
OHPA-64170-WDM AC
Specification
| Type | WDM High Power EDFA |
|---|
| Order number | 00212096 |
|---|---|
| EAN-Code | 4026187196349 |
Out of stock
Product Details
- optical high-power amplifier for FttH RF overlay networks
- 1550 nm, 64 x 17 dBm optical output power
- WDM filter 1310 nm / 1490 nm + 1550 nm integrated
- optical connectors SC/APC (input), LC/APC (COM output) and LC/PC (GPON)
- 19" housing, two rack units
- redundant power supply (150 - 250 VAC)
Download Details
-
Anleitung OHPA DE pdf · 2mb
-
Anleitung OHPA EN pdf · 2mb
-
Blockschaltbild OHPA-WDM pdf · 2mb
-
Datenblatt OHPA-WDM Serie DE pdf · 2mb
-
Datenblatt OHPA-WDM Serie EN pdf · 2mb
