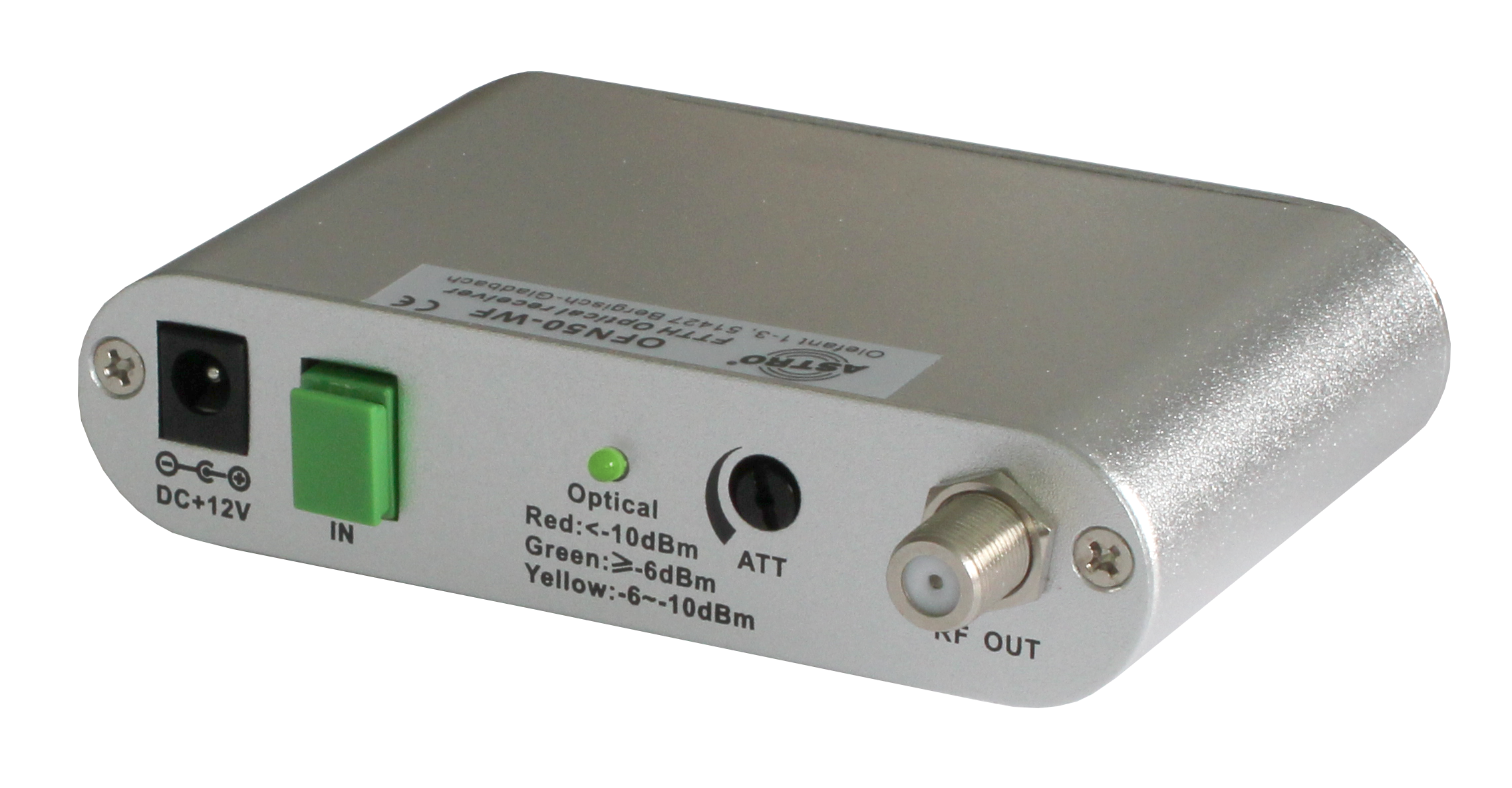

Compact optical CATV receiver with GPON data block
€ 27.50
Node for termination of RF-overlay networks
OFN50-WF
Specification
| Return circuit | without return path |
|---|---|
| Type | Micro Node |
| Order number | 00212114 |
|---|---|
| EAN-Code | 4026187192914 |
4 in stock
Product Details
- Node for termination of RF-overlay networks
- Forward path reception of CATV signals
- integrated filter to block GPON data
- 20 dB attenuator for RF level
- 12V plug-in power supply
- SC/APC connector
- optical wavelength 1530…1620 nm
Download Details
-
Anleitung OFN50 DE pdf · 2mb
-
Manual OFN50 EN pdf · 2mb
-
Datenblatt OFN50 DE pdf · 2mb
-
Data sheet OFN50 EN pdf · 2mb
-
Blockschaltbild OFN50 pdf · 2mb
