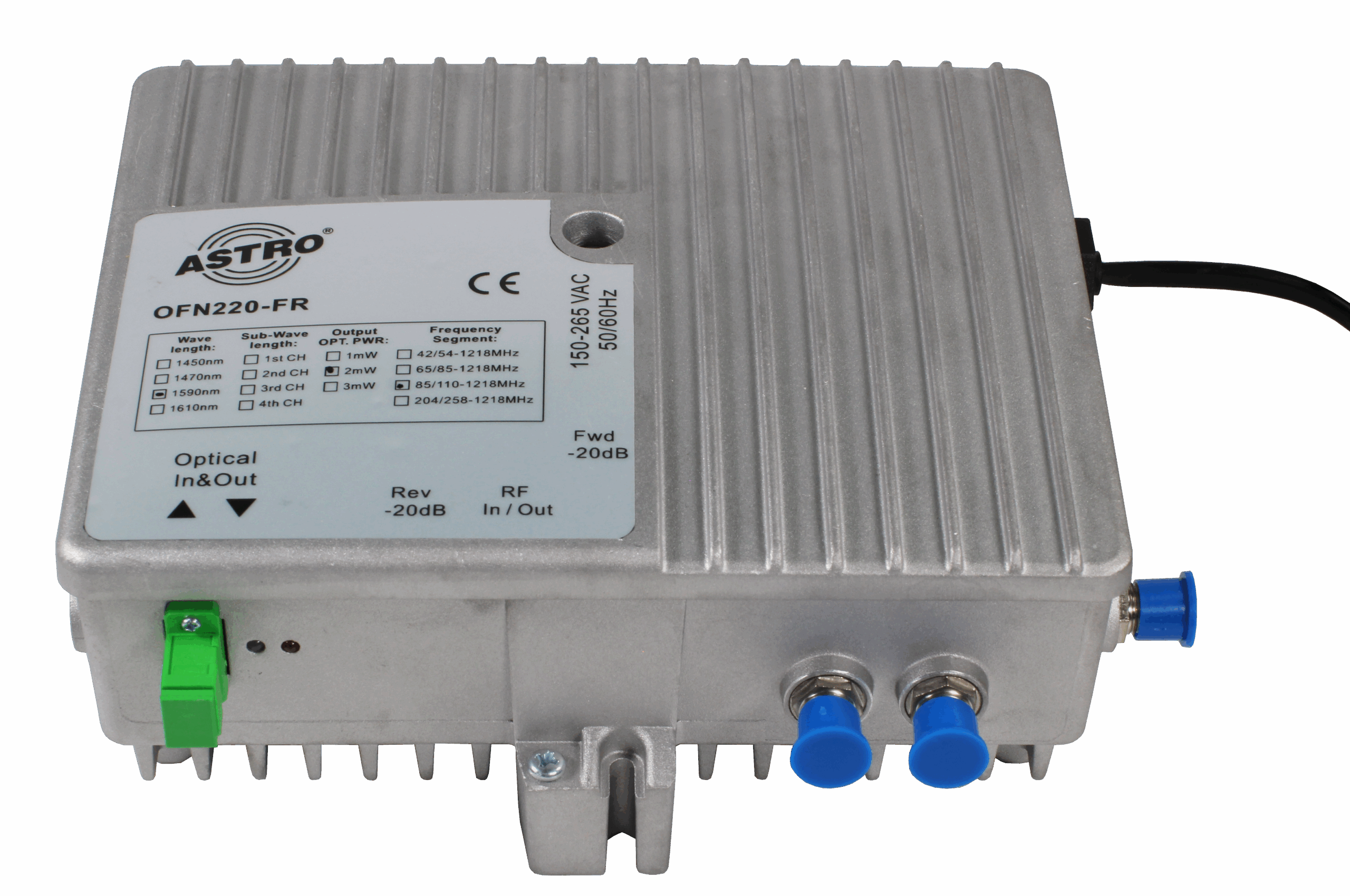

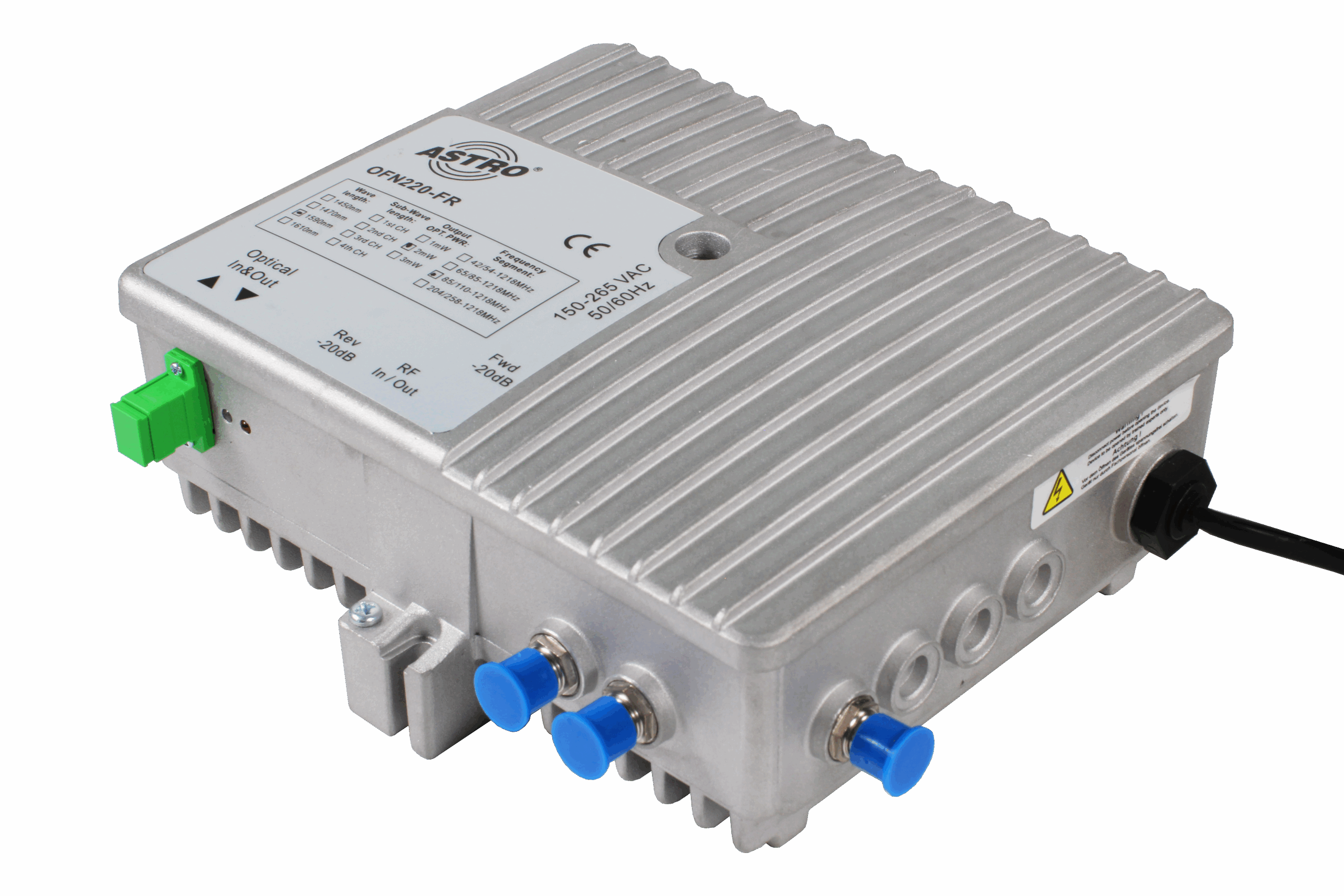

Modular optical CATV node

€ 375.00

Modular optical CATV node for DOCSIS 3.1 specification

OFN210-FR-1310-65 AC

Specification

Order number

00212107

EAN-Code

4026187197797

18 in stock

Buy Now
Product Details
  • Fibre node for DOCSIS 3.1 specification
  • Automatic Gain Control (AGC)
  • High RF output level usable for MDU or larger coax network
  • Return Path with OBI free burst or continuous mode
  • Standard 1310 nm DFB laser in return (CWDM DFB laser optionally)
  • Flexible DS/US band with plug-in diplexer: 65/87 or 204/258 (set higher US bandwidth can be done at later)
  • Equalizer and ATT electronically adjustable
  • Frequency range forward 1218 MHz
  • Separate DS and US Fibre connection 2 x SC/APC
