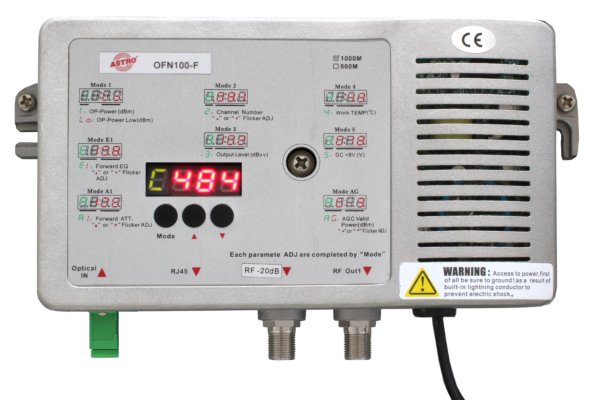

Optical CATV Node
Downstream reception of CATV signals
OFN100-FR-1470
Specification
| Return circuit | Return path included |
|---|---|
| Type | Mini Node |
| Order number | 00212139 |
|---|---|
| EAN-Code | 4026187194277 |
Product Details
- optical Node for FTTB/FTTC
- Downstream reception of CATV signals
- integrated 0 dBm / 1470 nm upstream transmitter
- optical input power -9 ... +2 dBm
- nominal output level >102 dBµV (@ OMI 3,5%)
- electronically adjustable attenuation and equalizer
- RF frequency range 5-65 MHz / 87-1006 MHz
- operational voltage 150 - 265 VAC
- optical connectors SC/APC
Download Details
-
Anleitung OFN100 DE pdf · 2mb
-
Manual OFN100 EN pdf · 2mb
-
Datenblatt OFN100 DE pdf · 2mb
-
Data sheet OFN100 EN pdf · 2mb
-
Blockschaltbild OFN100 pdf · 2mb
