Compact optical CATV receiver
€ 150.60
1610 nm Upstream TX
Specification
| Type | Mini Node |
|---|---|
| Return circuit | Return path included |
| Order number | 00212253 |
|---|---|
| EAN-Code | 4026187271107 |

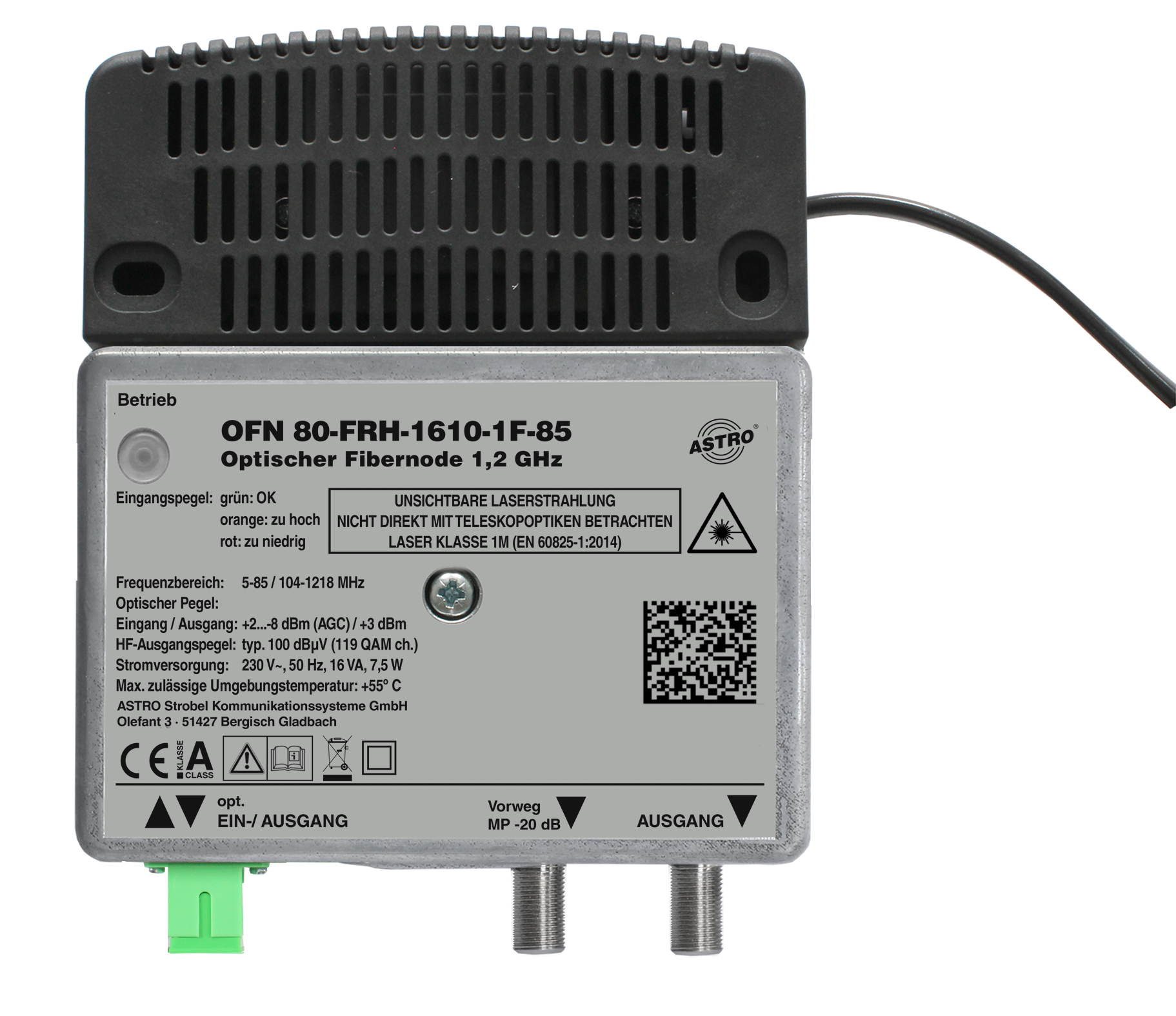

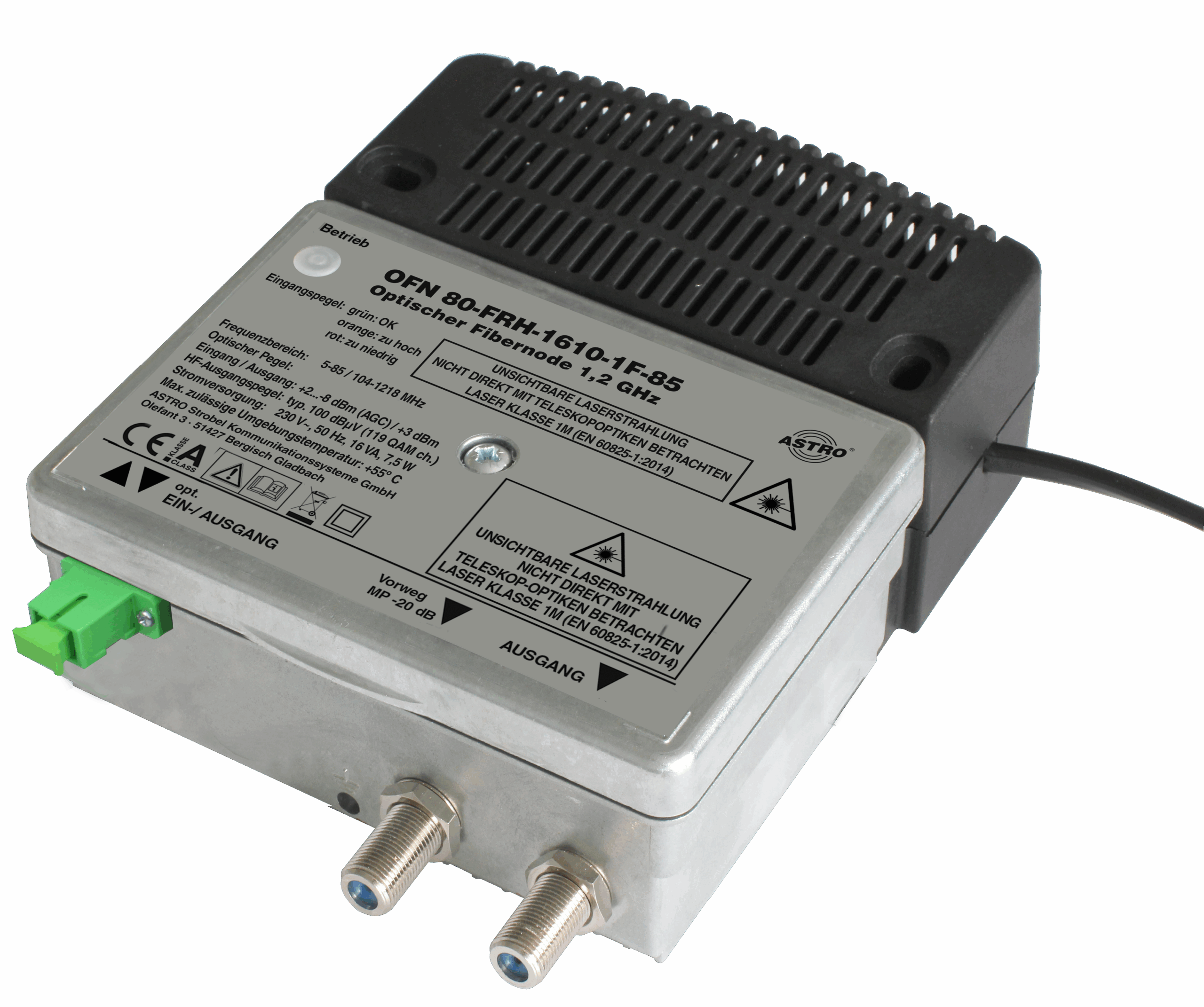

OFN 80-FRH-1610-1F
Out of stock
Product Details
- Fibre node with separate forward and return fibre
- wavelength in forward path 1100 - 1610 nm
- 1310 nm Upstream TX
- Automatic Gain Control (AGC)
- attenuation with PAD in forward path
- slope adjustment selectable with jumper 0db / 2dB / 4dB / 6dB
- return path with continuous or burst mode
- attenuation in return path with PADs
- ingress noise test/filter with jumpers (0dB / 6dB /40dB)
- pluggable diplexer: 65/85 or 204/258
- forward path frequency: 258 - 1218 MHz
- return path range 5-205 MHz
- separate forward and return path fibre
- built-in power supply 230 VA
- optional fibre tray available
Download Details
-
Anleitung OFN80 DE pdf · 2mb
-
Anleitung OFN80 EN pdf · 2mb
-
Datenblatt OFN80 DE pdf · 2mb
-
Datenblatt OFN80 EN pdf · 2mb
-
Blockschaltbild OFN80 pdf · 2mb
