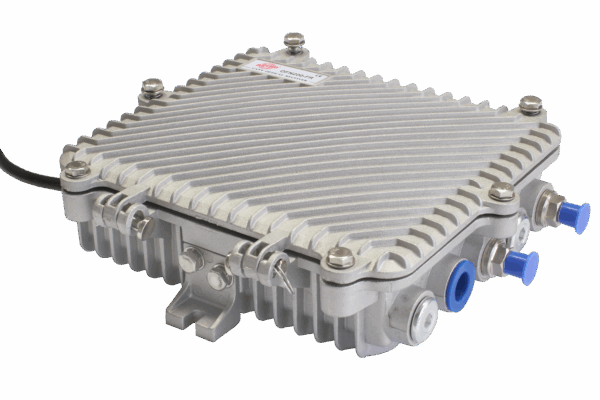

Modular optical CATV Node

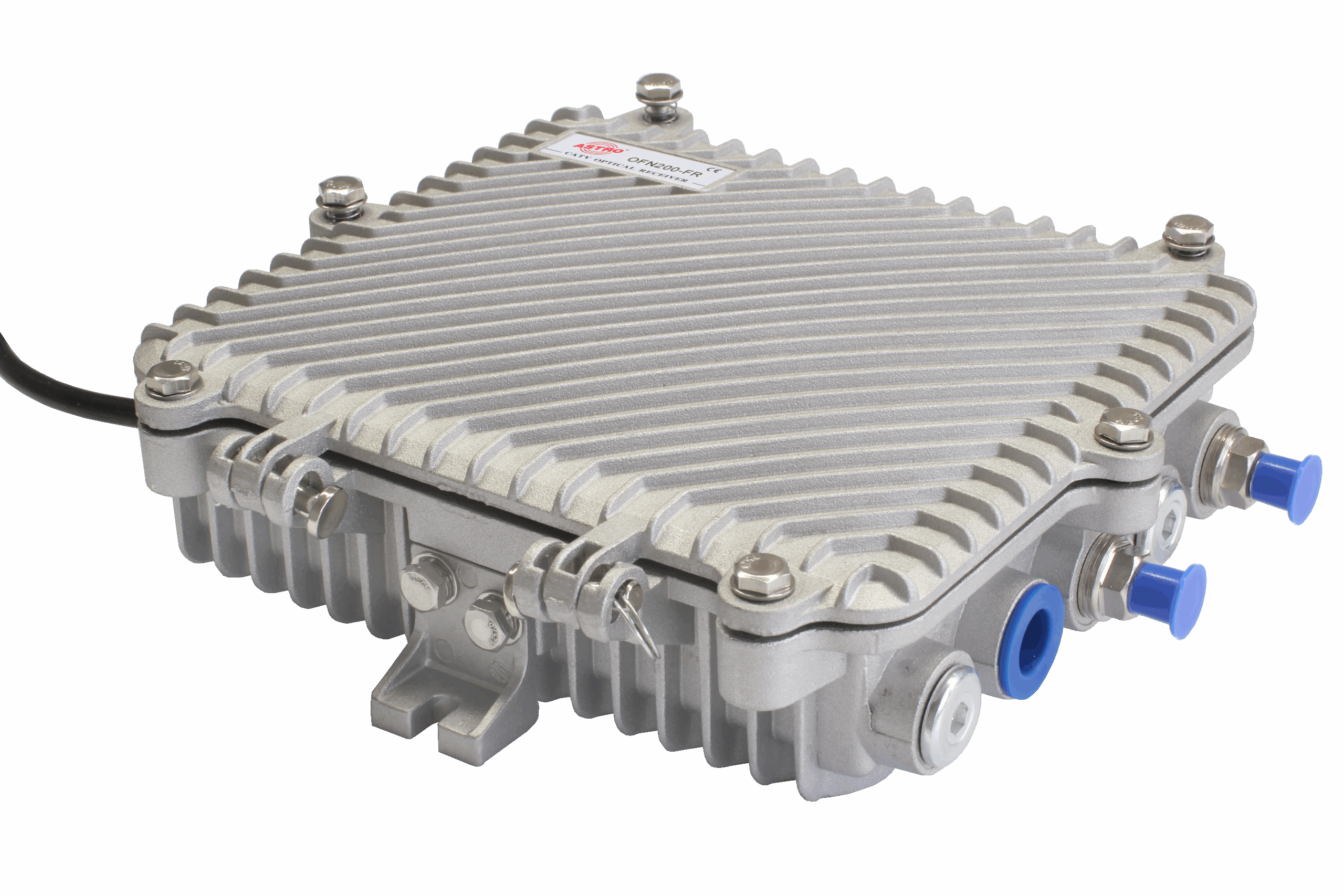

Modular optical CATV Node - Image 2

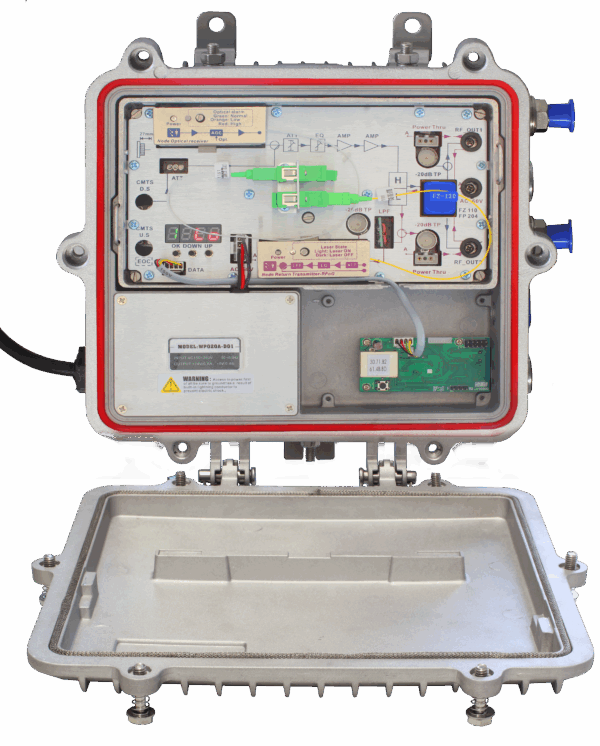

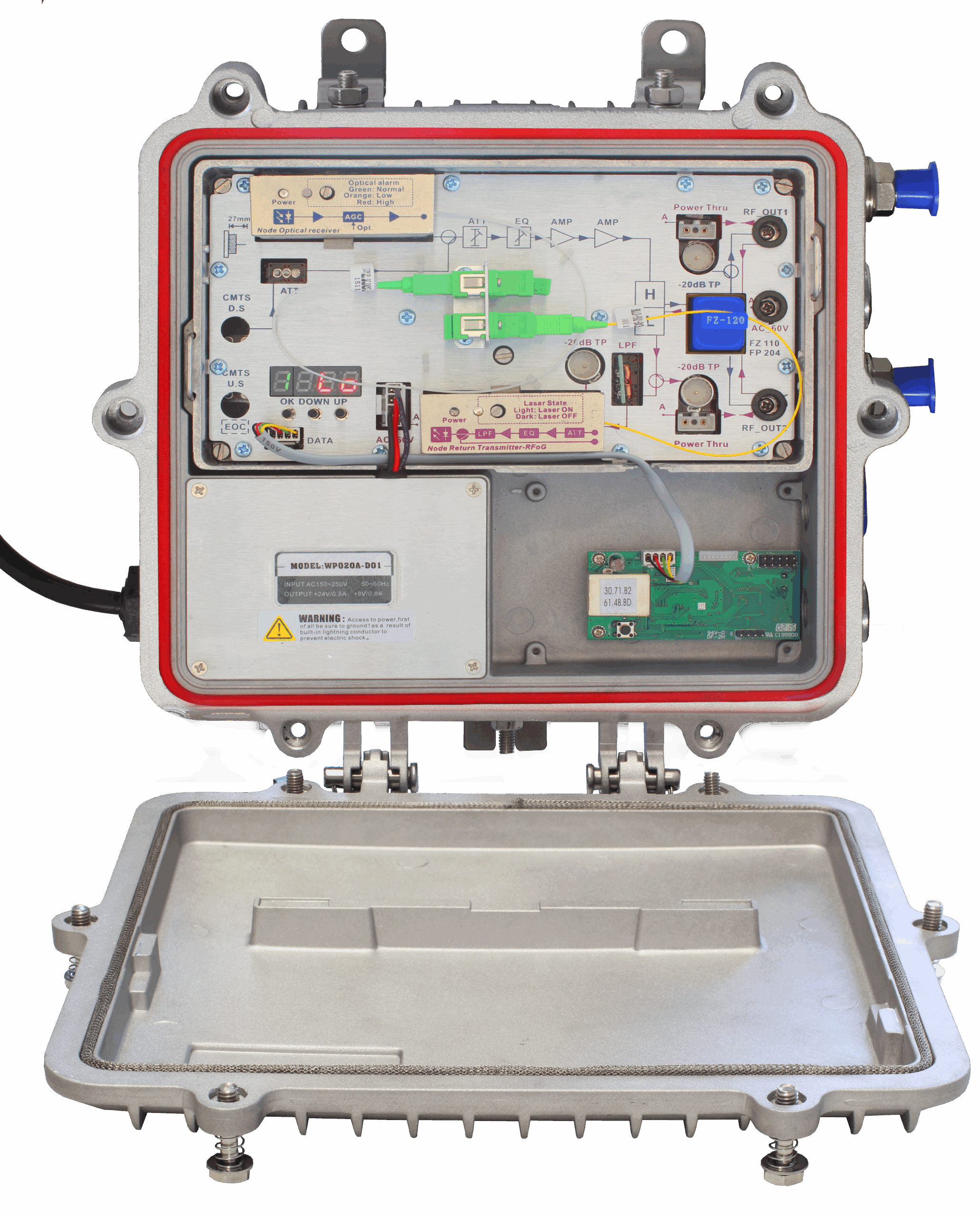

Modular optical CATV Node - Image 3

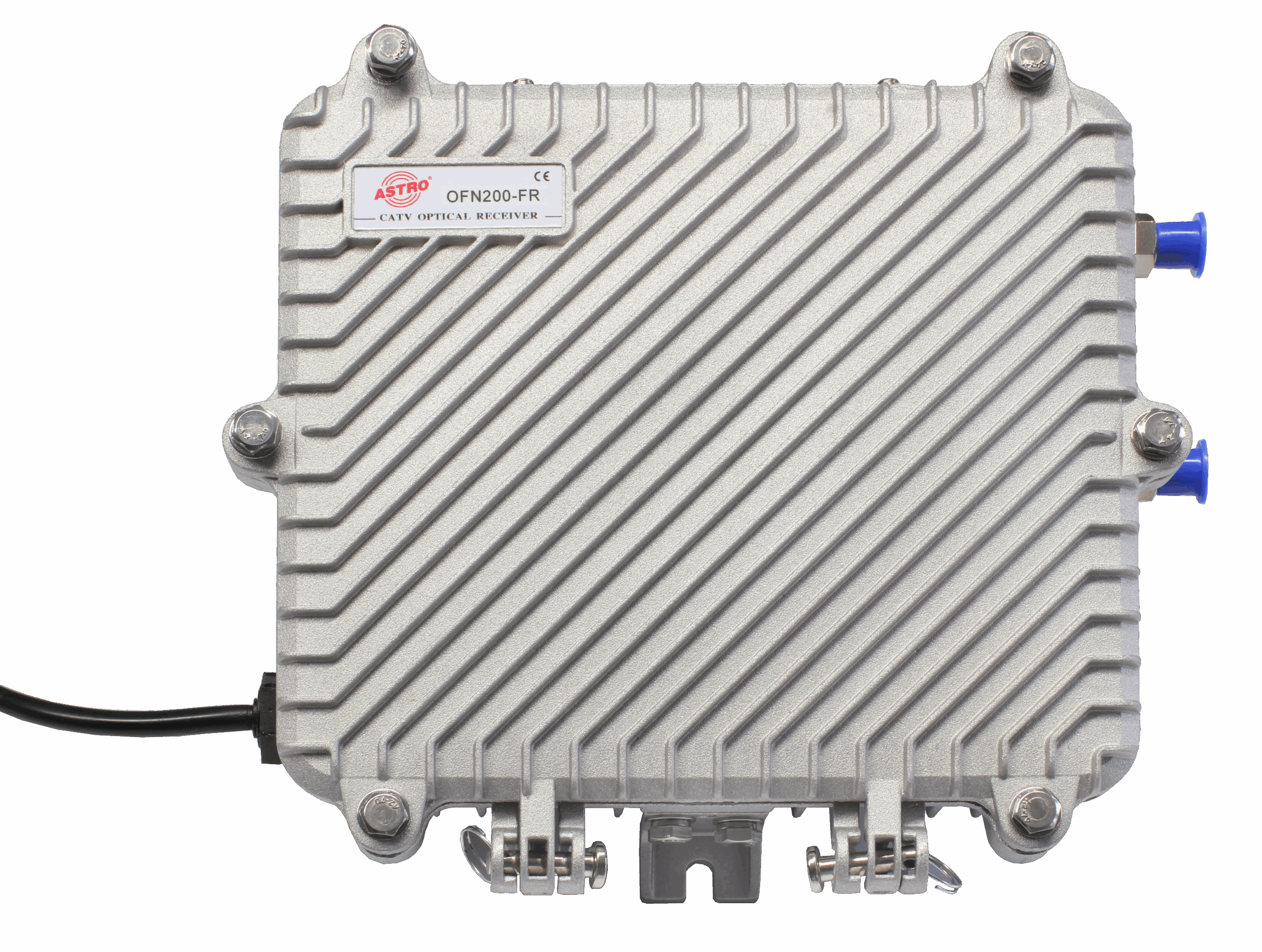

Modular optical CATV Node

Login to see prices

Modular optical node for FTTB/FTTC, 1550 nm upstream transmitter

OFN200-FR-1550 AC

Specification

Order number

00212107

Product Details
  • FTTB/FTTC optical Node
  • Downstream reception of CATV signals
  • integrated 3 dBm / 1550 nm upstream transmitter
  • optical input power -7 ... +2 dBm
  • nominal output level >108 dBµV (@ OMI 3,5%)
  • electronically adjustable attenuation and equalizer
  • RF frequency range 5-65 MHz / 87-1006 MHz
  • operational voltage 150 - 265 VAC
  • optical connectors SC/APC
Download Details
