Universal broadband amplifier
€ 93.95
with active variable return path 5-85 MHz or 5-204 MHz
Specification
| Device type | Modular |
|---|---|
| Power supply | Local |
| Frequency range | up to 1218 MHz |
| Forward path gain | >39 dB |
| Approval by network operator | PYUR |
| Order number | 00217420 |
|---|---|
| EAN-Code | 4026187195045 |

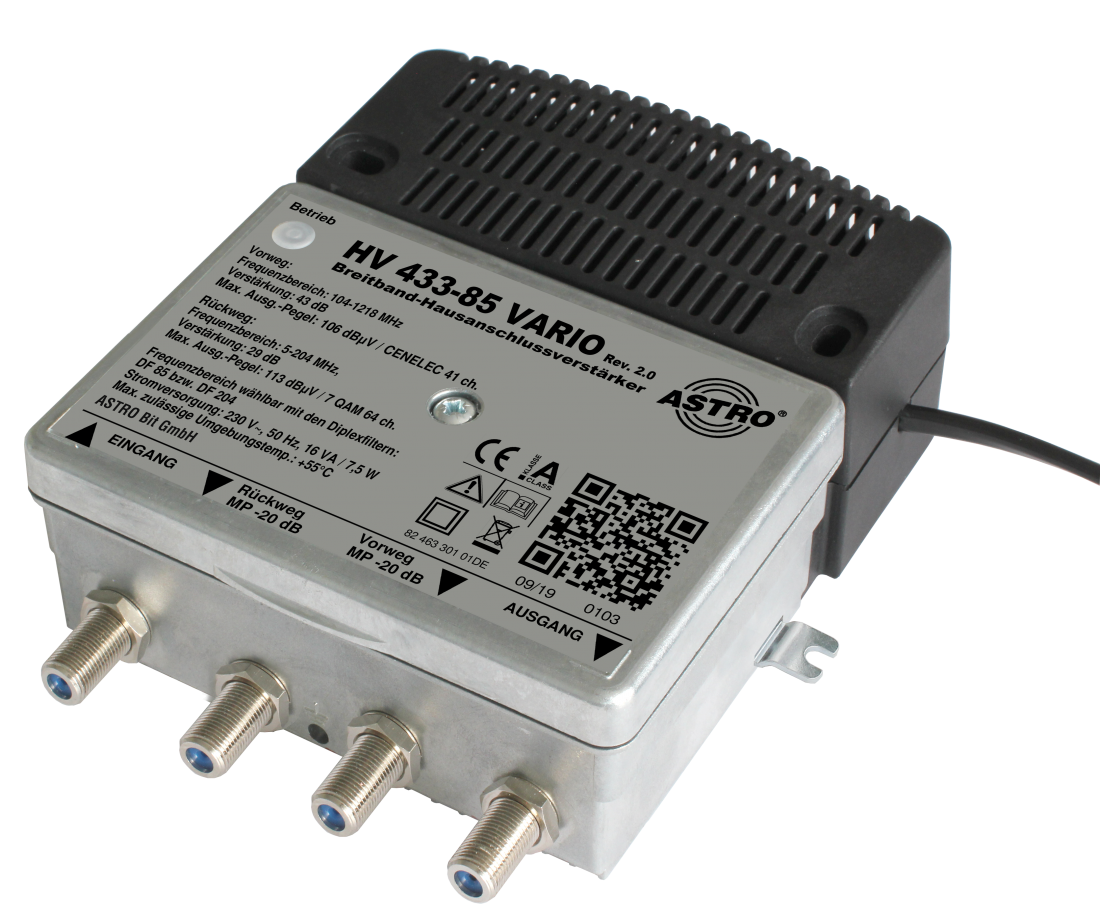

HV 433-85 Vario
20 in stock
Product Details

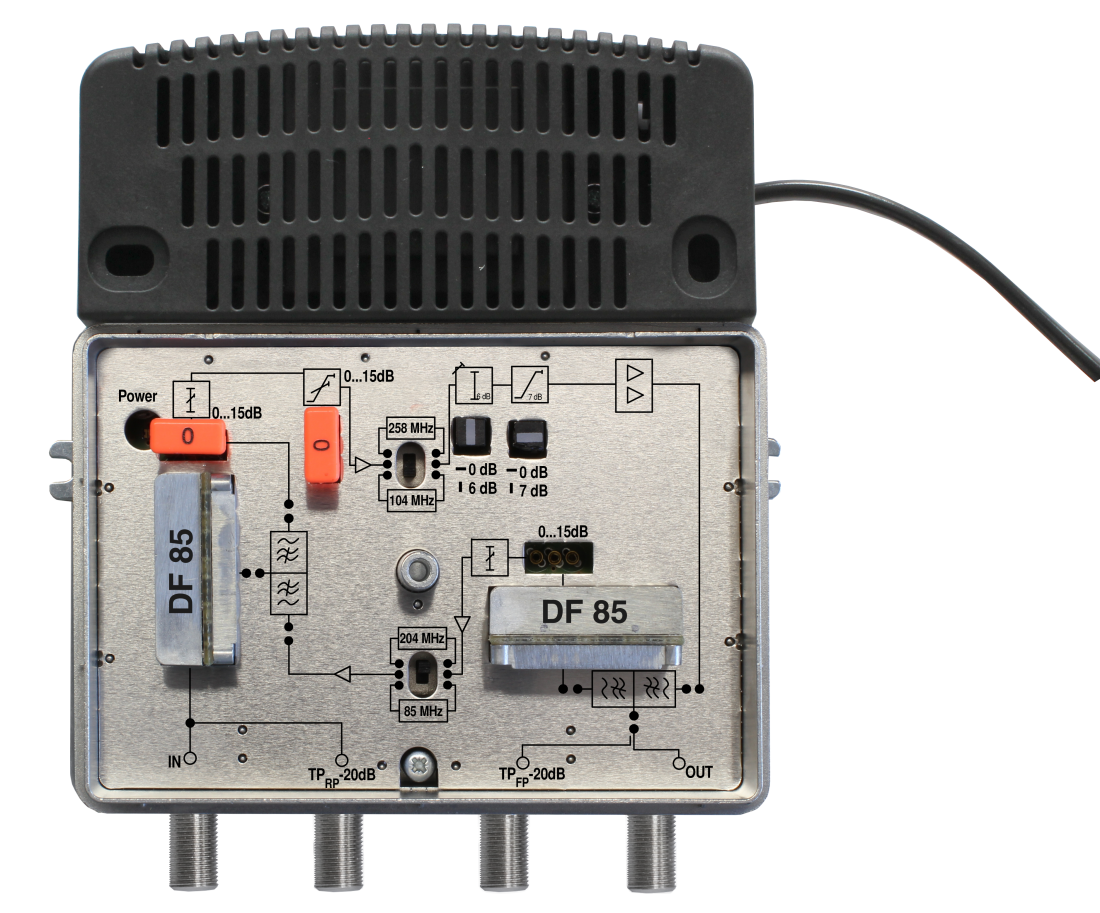

Please note: The DF 65, DF 85 and DF 204 diplex filters are no longer available. Alternatively, the HV 433-65 Vario, HV 433-85 Vario, HV 433-65 Vario and HV 433-85 Vario amplifiers can be used in conjunction with the DF 12xxx diplex filters.
- Broadband amplifier with active variable return path 5-85 MHz or 5-204 MHz
- high modulation of the return path for operational reliability even with multi-channel load
- Input attenuation adjustable via pad
- Equalizer in input adjustable via pad
- Interstage Slope pluggable in advance 0 / 7 dB
- Interstage attenuation pluggable in advance 0 / 6 dB
- Damping in return path adjustable via pad
- Forward path gain 44 dB
- Output level forward path 108 dBµV CENELEC 41, 108 dBµV with 7 dB Interstage Slope
- Return path gain 29 dB
- Output level return path 113 dBµV with 7 QAM 64 carriers / 104 dBµV with 24 QAM 256 carriers
- Attenuation pads Pre-attenuation 0 - 20 dB
- Equalizer pads Pre-path 0 - 18 dB
- Attenuation pads return path 0 - 15 dB
- 20 dB Measuring points at the outputs
Download Details
-
Blockschaltbild HV 433-85 Vario pdf · 2mb
-
Datenblatt HV 433-85 Vario DE pdf · 2mb
-
Datenblatt HV 433-85 Vario EN pdf · 2mb
