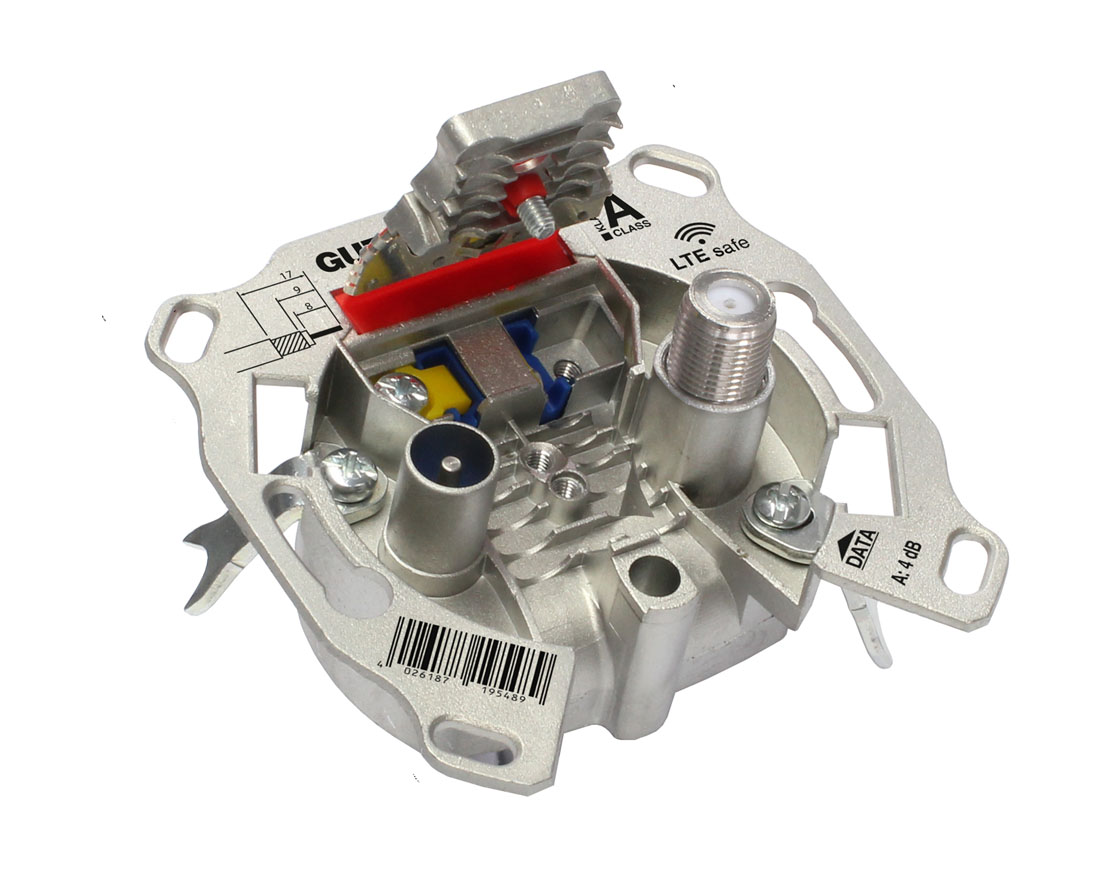

Modem stubline wall outlet for multimedia, CATV and data, 2 outputs (10 pieces)
€ 89.50
Specification
| Application | Multimedia outlet F connector |
|---|---|
| Approval by network operator | PYUR |
| Order number | 00541141 |
|---|---|
| EAN-Code | 4026187195489 |

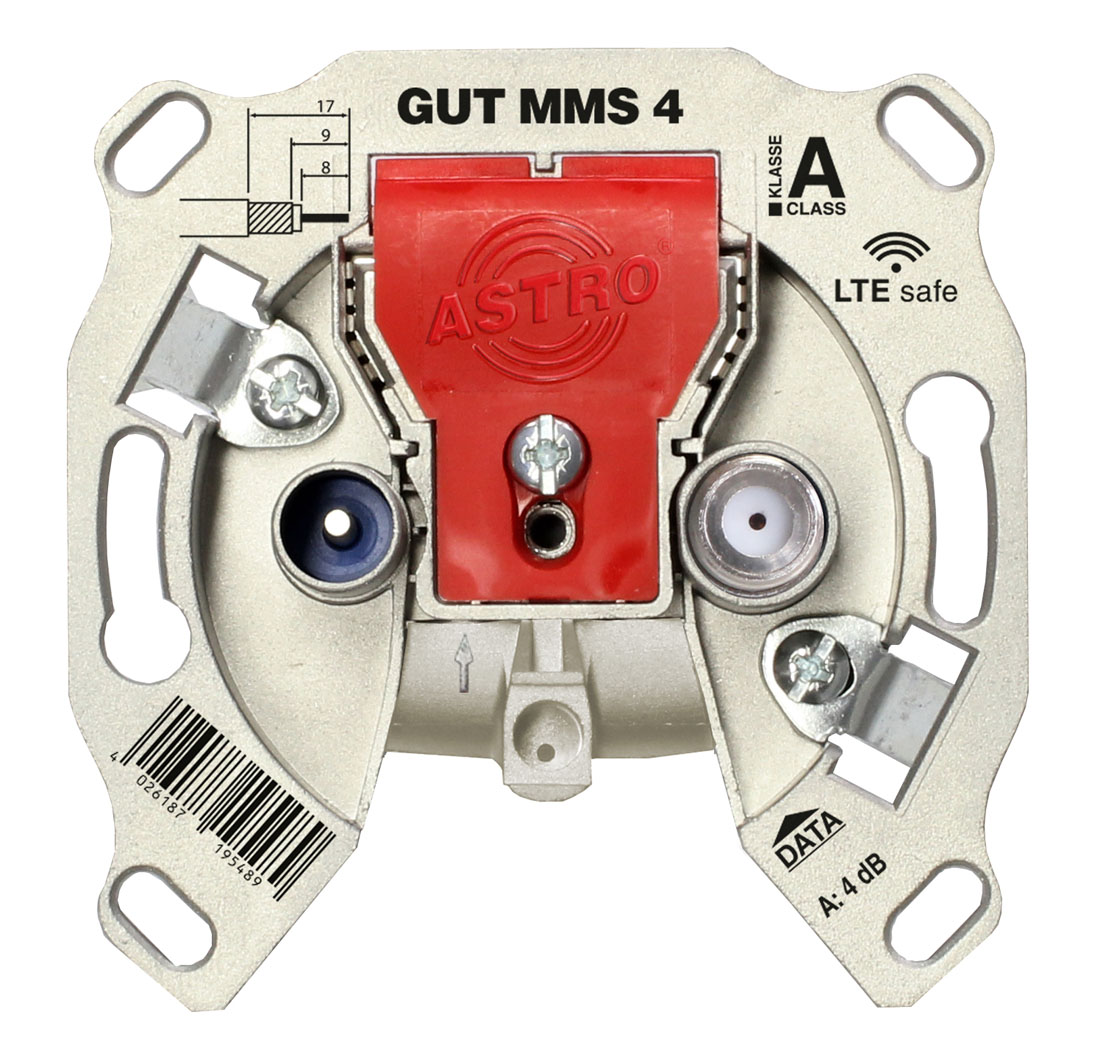

GUT MMS 4
266 in stock
Product Details
- 5 - 1800 MHz for future expansion of Docsis 3.1 and MOCA application
- TV & modem connection attenuation approx. 4,5 dB
- improved EMC properties through compliance with the Class A + 10 dB (LTE safe)

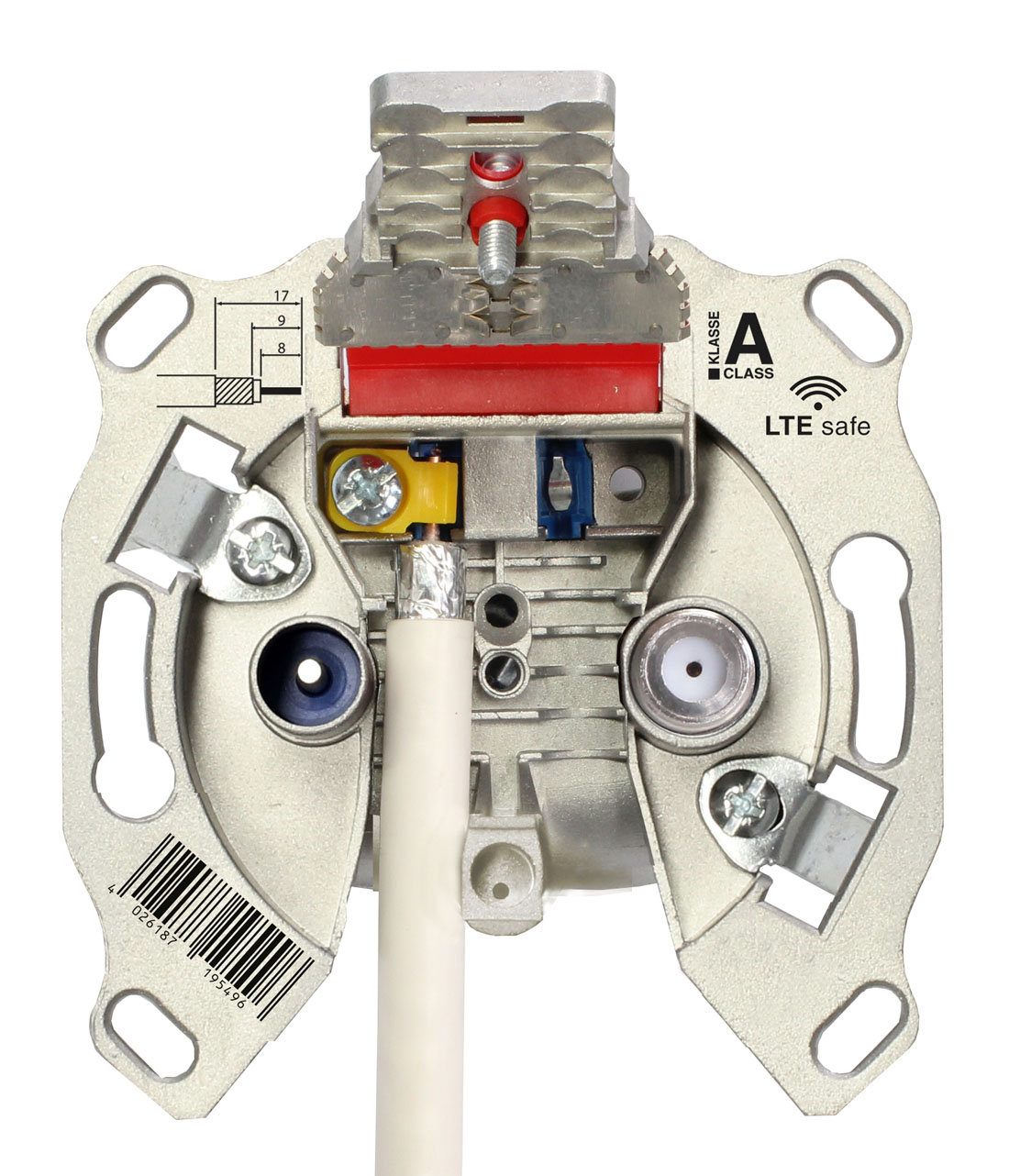

- fast and safe clamping technology even with different cable cross sections
- Cable kink protection due to rounded housing shape
- high decoupling between data connection and TV connection prevent interference with TV reception by the cable modem
- F-connector socket for cable modem prevents unintentional insertion of Ingress by connecting a "second TV
- IEC connector for TV (258 - 1800 MHz)
- released by PYUR
Download Details
-
Beipackzettel GUT MMS DE pdf · 2mb
-
Datenblatt GUT MMS DE pdf · 2mb
