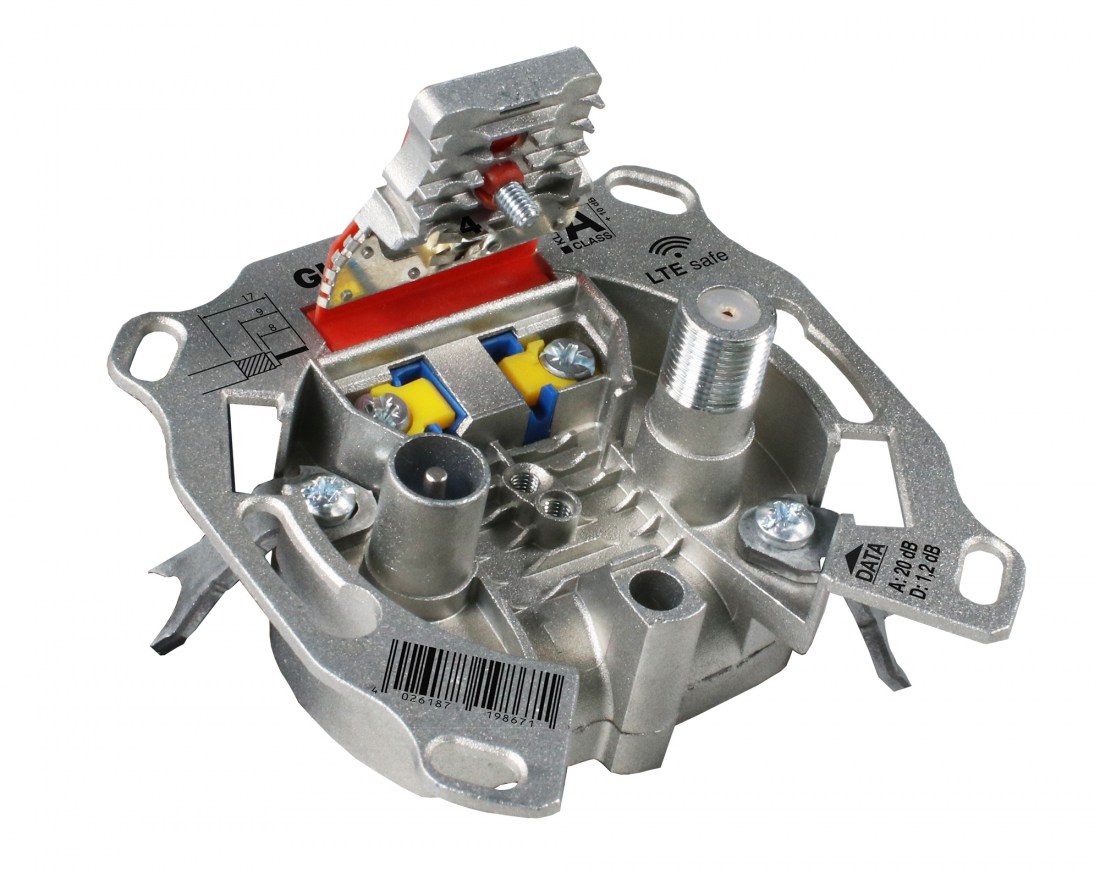

Modem trunkline wall outlet for multimedia, CATV and data (10 pieces)
€ 89.50
2 outputs, 20 dB attenuation

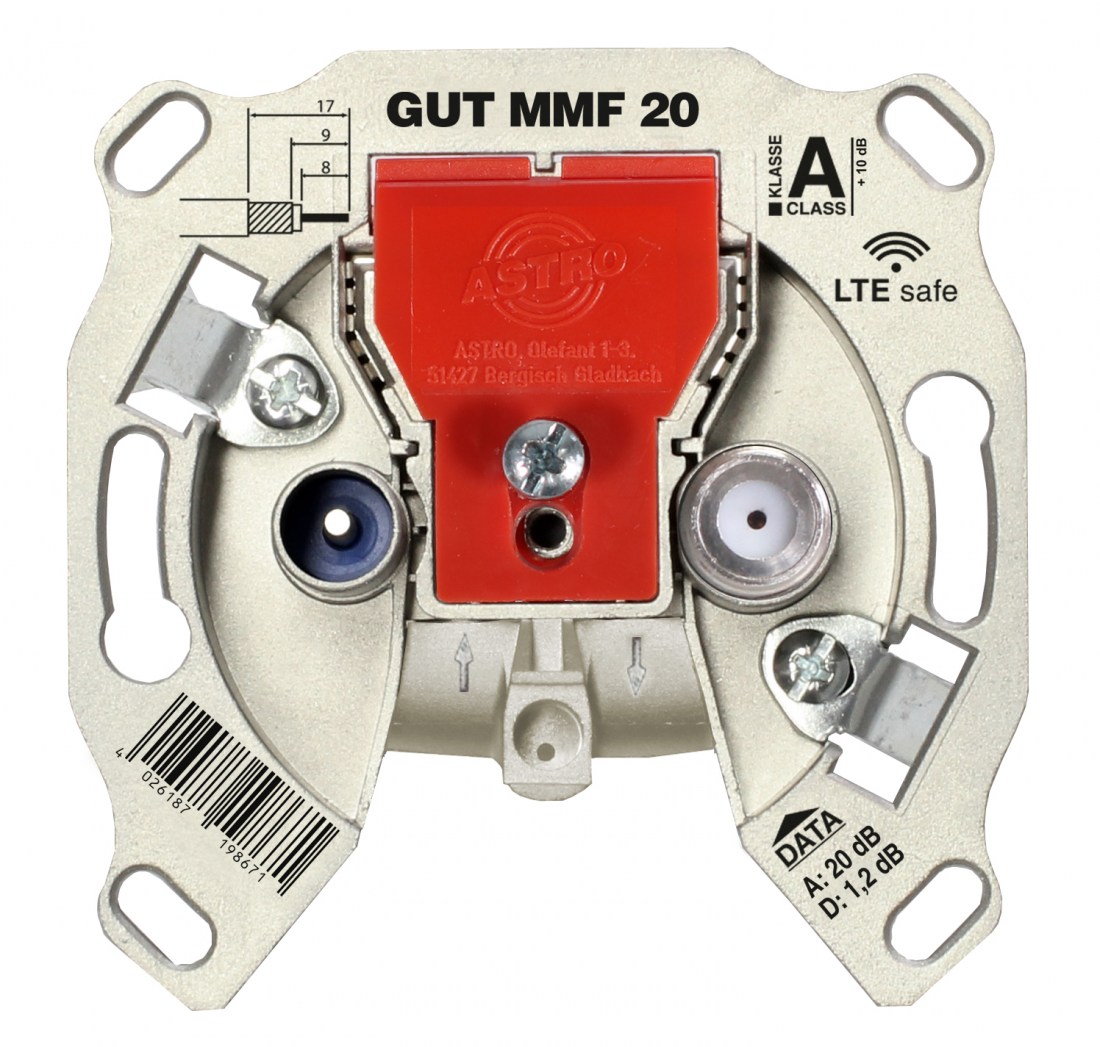

GUT MMF 20
Specification
| Application | Multimedia outlet F connector |
|---|
| Order number | 00541224 |
|---|---|
| EAN-Code | 4026187198671 |
8 in stock
Product Details
- 5 - 1800 MHz for future expansion of Docsis 3.1 and MoCA application (TV up to 862 MHz)
- improved EMC properties through compliance with class A + 10 dB (LTE safe)
- with 85 MHz filter, decoupling > 37 dB up to 204 MHz (with MMF 8 - 20) for Docsis 3.1 return path application
- fast and secure clamping technology even with different cable cross-sections
- cable kink protection due to rounded housing shape
- F connector for connecting a modem
- complies with Vodafone specification VFKD TS 142
- complies with UM TS 414 with 160 VDC overvoltage protection
Download Details
-
Beipackzettel GUT MMF Serie DE pdf · 2mb
-
Datenblatt GUT MMF 20 pdf · 2mb
