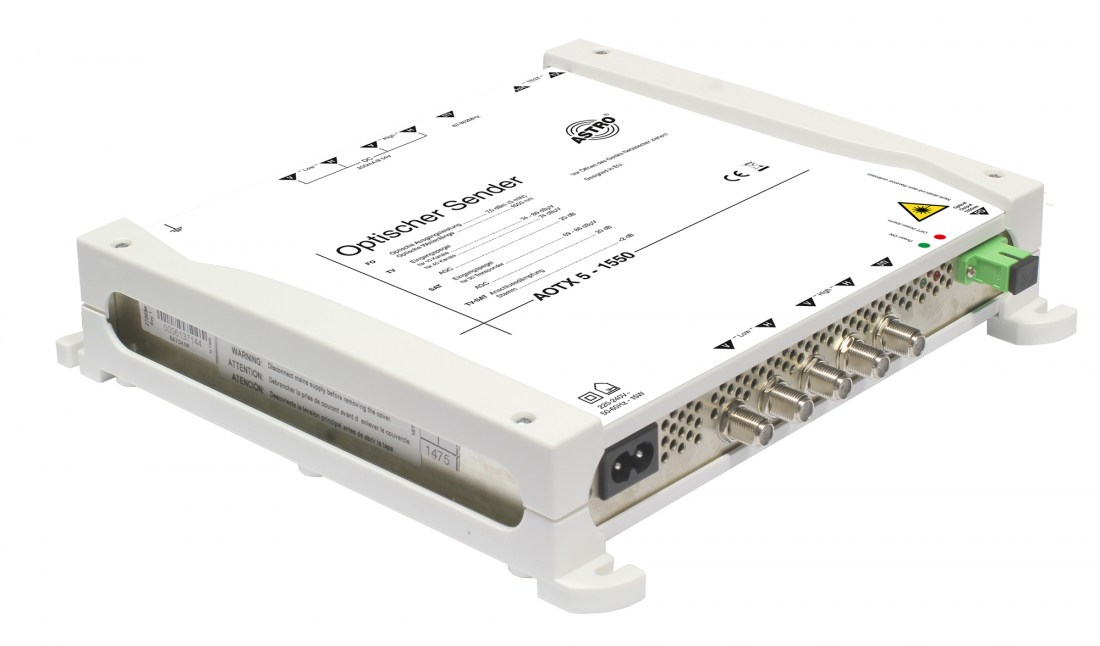

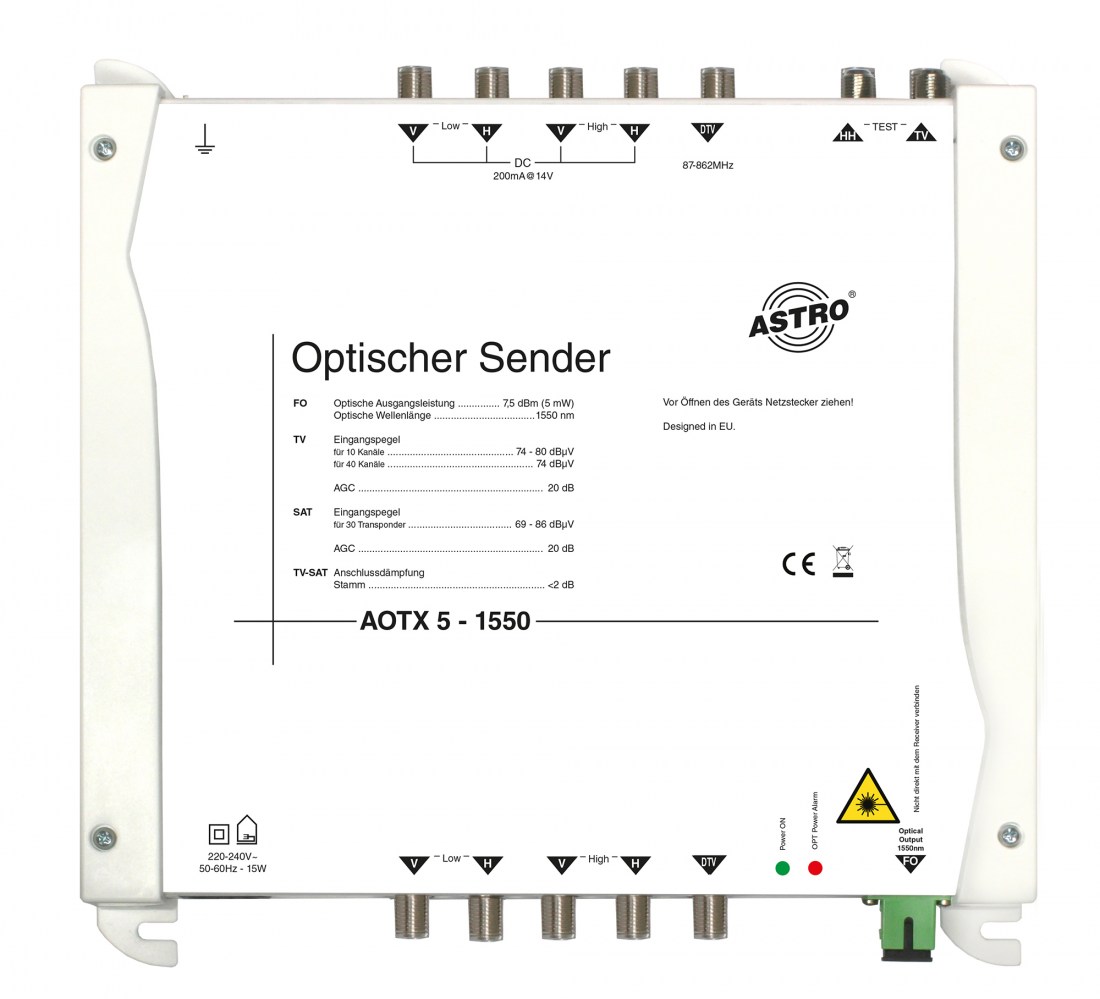

Optical SAT-IF transmitter
Optical SAT-IF transmitter - Image 2
Optical SAT-IF transmitter - Image 3

Optical SAT-IF transmitter

€ 695.00

optical wavelength 1550 nm

AOTX 5-1550

Specification

Type

Transmitters
Order number

00390101

EAN-Code

4026187194031

Out of stock

Product Details
  • combines four SAT-IF polarizations to one optical output signal
  • every standard quatro LNB can be combined with the transmitter
  • integrated power supply for the transmitter and the LNB supply
  • standard SC/APC connector for optical connections
  • 7 dBm optical output level with AGC
  • optical wavelength 1550 nm
Download Details
