Premium stand-alone multiswitch
€ 129.00
4 SAT levels + terrestrial, 8 user outputs
Specification
| Model | High Quality |
|---|---|
| SAT inputs | 1 |
| Outputs | 8 |
| Device type | Stand-alone device |
| Order number | 00360081 |
|---|---|
| EAN-Code | 4026187131142 |
AMS 508 ECOswitch
29 in stock
Product Details
- Stand-alone device with 4 SAT levels + terrestrial
- 8 user outputs
- terrestrial input passive (5 - 862 MHz), or switchable FM active (87.5 - 108 MHz) for direct connection of an antenna
- separate level control for each SAT input
- LNB supply selectable 12 V / 18 V / 22 kHz
- energy-saving switching power supply, in stand-by only 0.5 W power consumption
- LED indicator lamp per participant and for output current monitoring (short-circuit-proof)
- Professional multi-switch
- 5 V supply voltage for active DVB-T(2) antenna can be switched on
- Operation with Quatro-Universal or Quad-Switch LNB
- Switch mode power supply with standby function
Download Details
-
Anleitung AMS 5... DE pdf · 2mb
Product is combinable with
Overvoltage protector
SVP 20
for the protection of terminal equipment from damage due to overvoltage
149,50 € plus VAT
Grounding bracket
ESF 09
for connection of 9 coaxial cables and 1 earthing cable according to VDE regulations
14,35 € plus VAT
67,00 € plus VAT
Similar Products

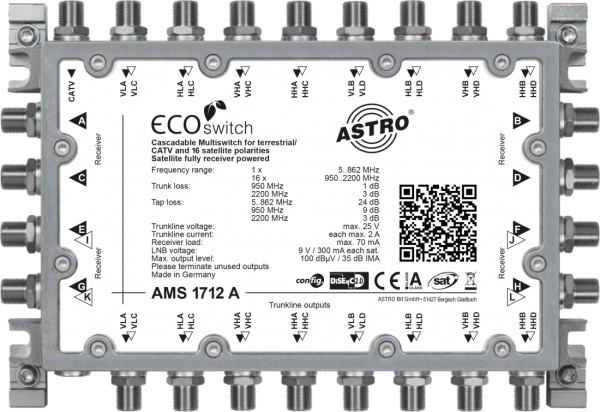

Premium cascade extension module
AMS 1712 A ECOswitch
16 satellite levels + terrestrial signal, 12 receiver outputs
465,00 € plus VAT

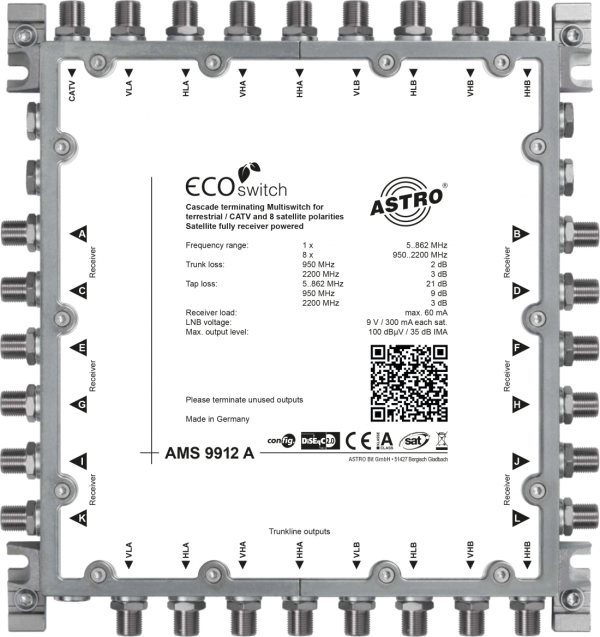

Premium Cascade Multiswitch
