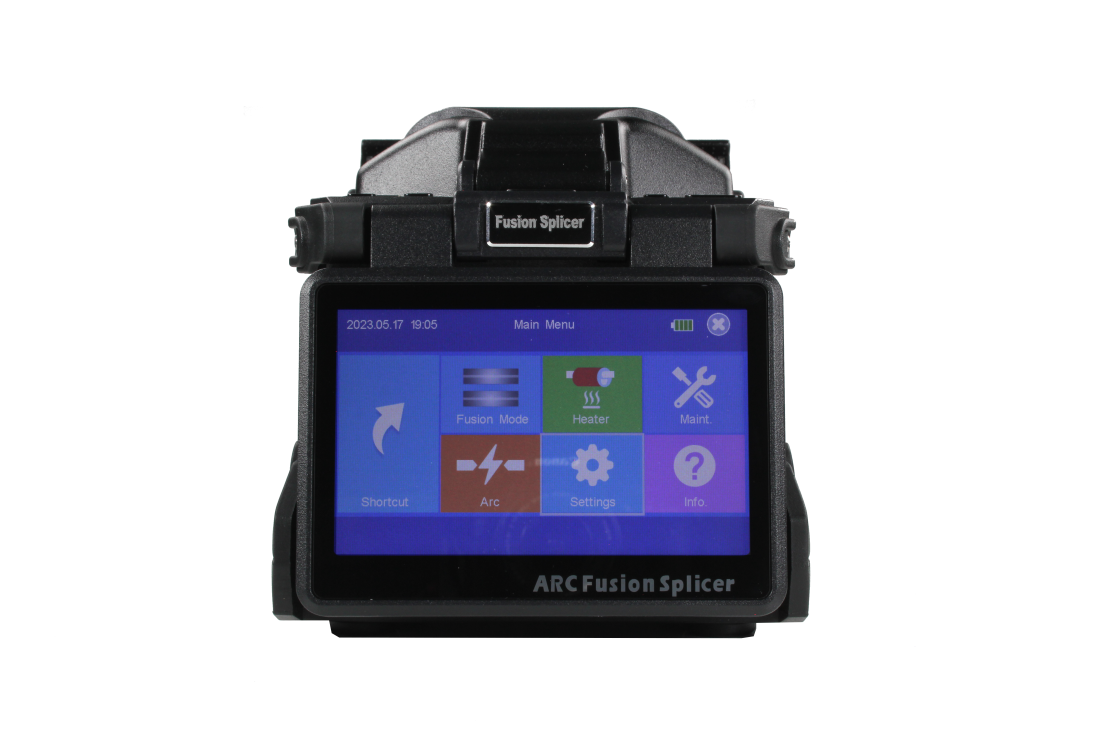

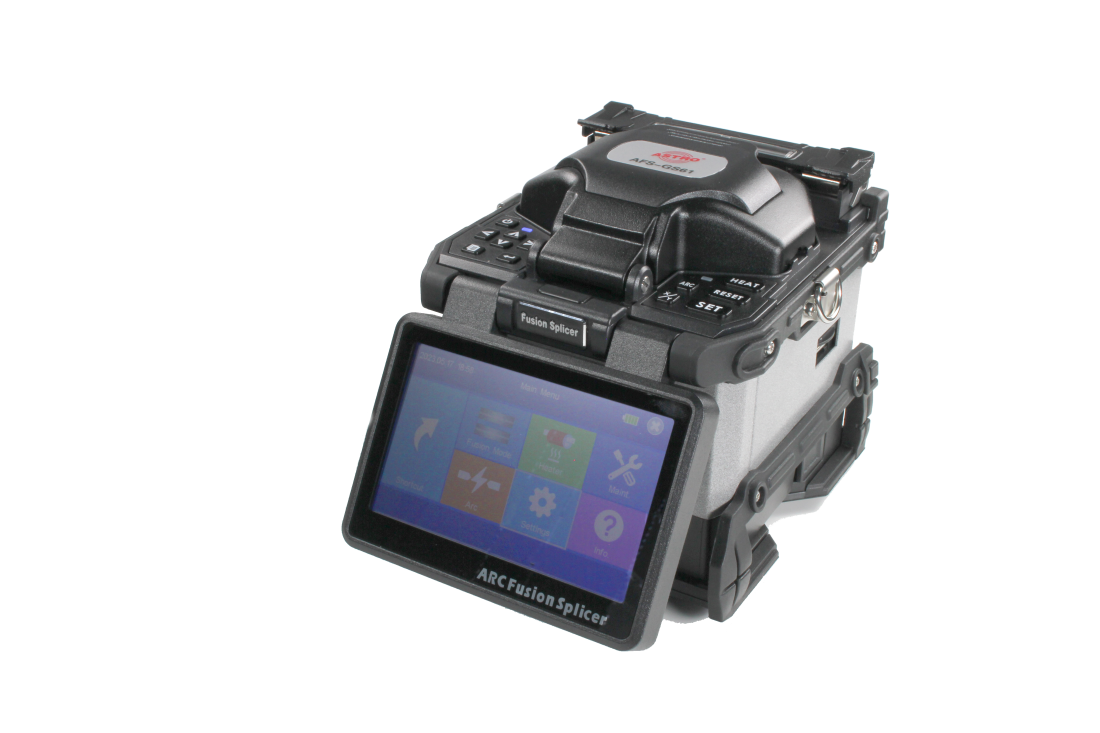

Optical compact fusion splicer
€ 2'150.00
5″ touch screen fusion splicer with automatic fiber detection
AFS-GS61
Specification
| Type | Spleißgeräte |
|---|
| Order number | 00212219 |
|---|---|
| EAN-Code | 4026187270988 |
4 in stock
Product Details
- optical compact fusion splicer
- 5 inch TFT Monitor touch screen
- 6 motor core alignment, used for FTTH and FO backbone splicing
- fibre types: MMF/G.651, SMF/G.652, NZ-DSF/G.655, BIF/G.657, erbium-doped fibre (EDF), automatic fibre detection
- multi-in-one fibreclamp for bare fibre
- pigtail, drop cable, patchcord etc.
- crimp shrink protection heating
- auto splice result (loss estimation)
- automatic splice control
- typ. splice loss ≤ 0,02 dB
- return loss typ. > 60 dB
- battery time 180-200 splices with heating
- 5000 splice records in CSV format

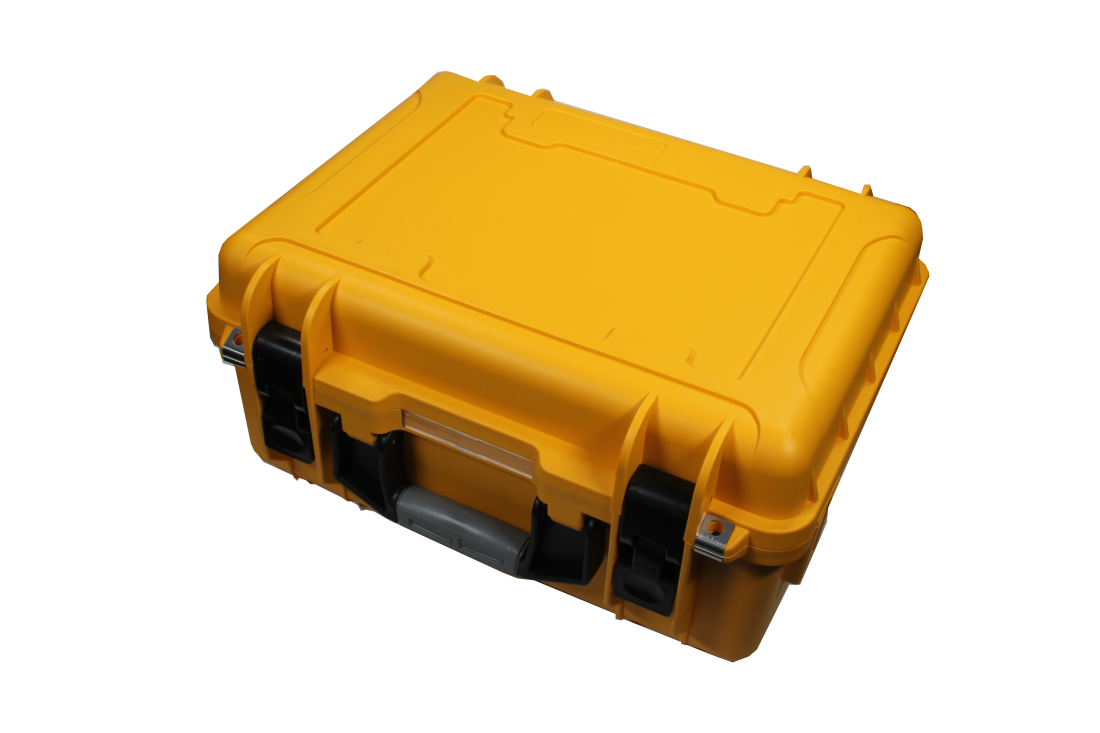

- standard package: splicer unit, fibre holder, lithium battery, power adapter, cooling tray, USB cabl, carry case, quick reference
Download Details
-
Produktflyer AFS-GS61 pdf · 2mb
